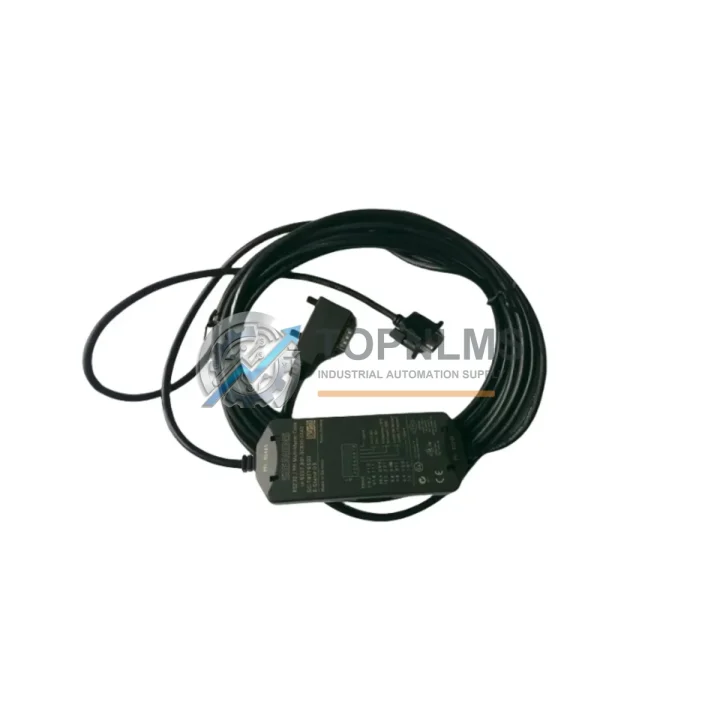

AMSAMOTION 3DB30 Replacement/Upgrade for AM Series

Product Overview

AMSAMOTION 3DB30 Replacement/Upgrade Solution for AM Series: Seamless Transition from Legacy PC-to-PLC Interface Systems

The AMSAMOTION 3DB30 is a dedicated PC-to-PLC interface module engineered for the AM Series programmable logic controller platform. As industrial facilities increasingly face the challenge of maintaining aging control architectures — particularly those built around discontinued or end-of-life PC interface cards — the 3DB30 provides a verified, drop-in upgrade path that preserves existing wiring infrastructure, communication protocols, and control cabinet layouts without requiring a full system redesign.

For engineers managing legacy automation systems, the 3DB30 addresses one of the most common pain points in industrial modernization: replacing a PC interface module without triggering cascading changes across the entire control network. Whether your facility is running an older AM2 or AM3 series PLC rack, or migrating from a third-party PC adapter that has reached end-of-life, the 3DB30 is designed to restore full programming and monitoring capability with minimal disruption to production schedules.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy PC interface setup to the AMSAMOTION 3DB30 rarely involves just a single component swap. In practice, field engineers working on AM Series PLC modernization projects will typically evaluate the broader control system context before finalizing the replacement scope.

For facilities where the existing AM Series CPU module — such as the AMSAMOTION AM600-CPU1608TP or the AM300 series CPU — is still operational, the 3DB30 can be introduced as a standalone interface upgrade without touching the CPU or I/O configuration. The module connects directly to the programming port on the CPU, allowing the engineering workstation to re-establish full online monitoring and program download capability immediately after installation.

In cases where the control cabinet also houses aging AM Series digital I/O expansion modules (such as the AM600-16EX or AM600-16EYT), the 3DB30 upgrade is often performed in parallel with an I/O module audit. Since the 3DB30 does not alter the I/O bus architecture, existing field wiring to terminal blocks and I/O modules remains intact. Engineers can verify I/O status in real time through the programming software once the 3DB30 interface is active.

For systems that rely on AMSAMOTION analog input/output modules — for example, the AM600-4AD or AM600-4DA — the 3DB30 enables direct parameter monitoring and PID loop tuning from the connected PC without requiring any changes to the analog signal wiring or scaling configuration. This is particularly valuable during commissioning after a partial system upgrade, where analog loop verification must be completed under live process conditions.

Communication architecture is another key consideration. Many legacy AM Series installations use RS-485 multi-drop networks connecting multiple PLC stations to a SCADA or HMI system. The 3DB30 supports RS-485 communication, making it compatible with existing network topologies. If the facility also operates an AMSAMOTION HMI panel (such as the TH series or TP series touch panels), the 3DB30 does not interfere with the HMI communication port, as the two interfaces operate independently on the AM Series CPU.

Power supply integrity is a common concern during any control cabinet retrofit. The AMSAMOTION AM-PS24 or equivalent 24VDC power supply module used in the existing rack typically provides sufficient capacity to support the 3DB30 without requiring a power budget recalculation, given the module’s low current draw. However, for older installations where the power supply is already operating near capacity due to added I/O modules or communication cards, a power supply audit is recommended before finalizing the upgrade.

For sites that require isolated communication — particularly in environments with significant electrical noise from variable frequency drives (VFDs), servo drives, or high-current motor starters — pairing the 3DB30 with a signal isolator or RS-485 repeater is a proven practice. This combination protects the interface module from ground loop interference and extends reliable communication distances across the plant floor.

Finally, for projects that involve a full rack replacement or expansion, the AMSAMOTION AM Series base rack (available in 8-slot and 16-slot configurations) provides the physical mounting platform for the CPU, I/O modules, and communication cards. The 3DB30 is compatible with all standard AM Series rack configurations, ensuring that the interface module can be integrated into both existing and newly assembled control panels without mechanical modification.

Retrofit Guidance FAQ

Q: Do I need to modify my existing PLC program after installing the 3DB30?
A: No. The 3DB30 is a transparent interface module. It does not alter the PLC program, memory allocation, or I/O mapping. After physical installation and driver setup on the PC, the programming software will recognize the connected CPU and allow full online access without any program modification.

Q: Is the 3DB30 compatible with both RS-232 and RS-485 communication?
A: Yes. The 3DB30 supports both RS-232 (for direct PC connection) and RS-485 (for multi-drop network configurations). The communication mode is selected based on the cable and port configuration used during installation.

Q: Will the 3DB30 fit in my existing control cabinet without modification?
A: The 3DB30 has a compact form factor consistent with the AM Series module family. In most standard AM Series control cabinet installations, no physical modification to the cabinet or DIN rail is required. The module connects directly to the CPU programming port via the supplied cable.

Q: Can I use the 3DB30 while the HMI is simultaneously connected to the PLC?
A: Yes. The AM Series CPU provides separate communication ports for the HMI and the PC interface. The 3DB30 connects to the dedicated programming port, which operates independently from the HMI communication port. Both connections can remain active simultaneously during commissioning and diagnostics.

Q: What programming software is required to use the 3DB30?
A: The 3DB30 is compatible with the AMSAMOTION programming software suite. Ensure the correct USB or serial driver for the 3DB30 is installed on the engineering workstation before attempting to establish a connection.

Q: How do I verify communication after installation?
A: After connecting the 3DB30 and launching the programming software, use the online connection function to scan for the connected CPU. A successful connection will display the CPU model, firmware version, and current program status. If the connection fails, verify the COM port assignment, baud rate setting, and cable integrity.

Warranty Assurance

Every AMSAMOTION 3DB30 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Before dispatch, each unit undergoes functional verification to confirm communication integrity, connector condition, and firmware compatibility with the AM Series platform.

In the event of a confirmed defect within the warranty period, TOPNLMS provides a replacement unit or full refund based on the customer’s preference. Our after-sales response target is within 24 business hours of a warranty claim submission. Replacement units are dispatched from our Xiamen warehouse, with express shipping options available to minimize production downtime for urgent cases.

For procurement teams requiring documentation, we can provide a product inspection report, packing list, and commercial invoice upon request. Bulk orders for MRO (Maintenance, Repair, and Operations) inventory programs are supported, with lead times and pricing available upon inquiry.

We maintain stock of the 3DB30 and related AM Series components to support both emergency replacement orders and planned maintenance schedules. Our team is available to assist with compatibility verification, cross-reference checks, and technical documentation requests prior to purchase.
