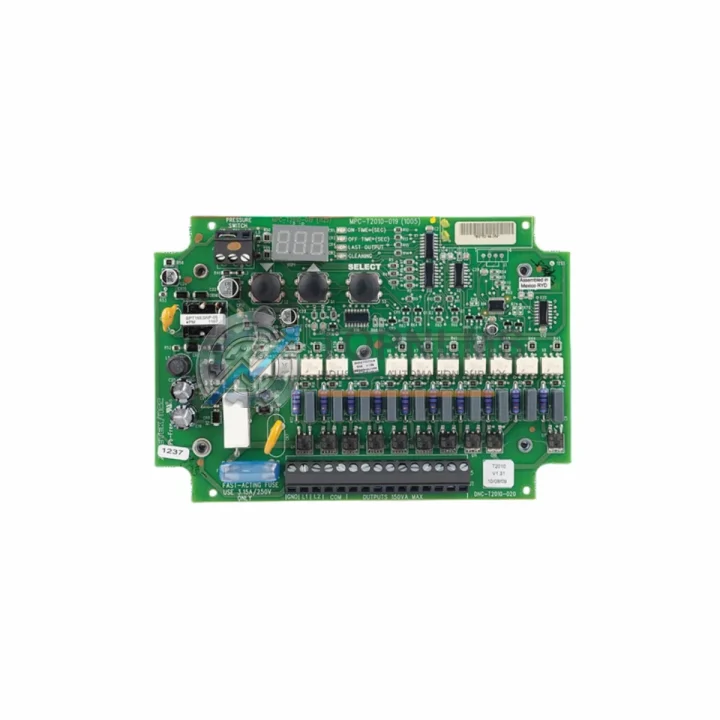

AMETEK DNC-T2010-R20 Original Industrial Spare DNC Compatible

Product Overview

AMETEK DNC-T2010-R20 Original Industrial Spare DNC Compatible: System Stability Through Verified Relay Output Control

In industrial automation environments where uptime is measured in revenue and unplanned downtime carries cascading consequences, the AMETEK DNC-T2010-R20 represents a mission-critical relay output module within the DNC Series programmable controller platform. Designed for demanding factory floor conditions, this module delivers reliable discrete output switching across a wide range of industrial applications — from process control panels to machine automation cabinets. Sourcing an original, tested DNC-T2010-R20 spare is not merely a procurement decision; it is a system stability investment that protects your existing DNC Series infrastructure and eliminates the risk of compatibility-driven failures during emergency replacements.

At TOPNLMS, every DNC-T2010-R20 unit is sourced from verified supply channels, individually inspected, and dispatched with full documentation. Our 12-month warranty covers functional performance under normal operating conditions, giving maintenance engineers and procurement managers the confidence to stock this module as a long-cycle spare.

Critical Technical Specs

Preventive Maintenance Strategy

Relay output modules like the DNC-T2010-R20 are among the highest-wear components in any PLC control cabinet. Relay contacts cycle thousands of times per day in active production environments, and contact degradation — evidenced by intermittent output faults, chattering, or failed actuator responses — is one of the leading causes of unplanned downtime in DNC Series installations. A structured preventive maintenance approach that includes scheduled relay module inspection and pre-positioned spare inventory is the most cost-effective strategy for protecting system uptime.

When scheduling a planned inspection or replacement of the DNC-T2010-R20, maintenance engineers should treat the event as an opportunity for a broader cabinet health check. The DNC Series backplane and rack assembly should be inspected for corrosion, loose connectors, and thermal stress marks. The DNC Series CPU module — which coordinates all I/O communication — should be verified for firmware currency and battery backup status, as a degraded CPU battery can cause program loss during power cycling. Alongside the relay output module, the corresponding DNC Series digital input module (typically a DI-16 or DI-32 variant) should be checked for input signal integrity, since input and output faults often co-occur in aging systems.

Power supply health is equally critical. The DNC Series power supply module feeds regulated DC voltage to all rack-mounted modules; a marginal power supply can cause relay output modules to behave erratically even when the module itself is functional. Inspecting and, where necessary, pre-stocking a power supply spare alongside the DNC-T2010-R20 is a recognized best practice in DNC Series maintenance planning.

Field wiring connected to relay output terminals should be inspected for insulation fatigue, terminal screw torque, and contact oxidation — particularly in high-humidity or chemically aggressive environments. Terminal block assemblies and DIN rail-mounted fuse modules protecting each relay output circuit are frequently overlooked during routine maintenance but are common failure points that can mimic relay module faults. Replacing aged fuse holders and verifying fuse ratings against the actual load is a low-cost step that prevents misdiagnosis.

For systems where the DNC-T2010-R20 drives motor starters, solenoid valves, or contactor coils, the associated intermediate relay modules or solid-state relay (SSR) modules in the same circuit should be inspected simultaneously. These components absorb inductive switching transients and protect the PLC relay contacts; their degradation directly accelerates wear on the DNC-T2010-R20 output contacts. Similarly, signal isolator modules used to condition analog feedback signals from field devices should be verified for calibration drift, as incorrect feedback can cause the control program to over-cycle relay outputs.

Where the DNC Series system interfaces with an HMI panel or operator workstation via a DNC Series communication module (RS-232, RS-485, or Ethernet variants), communication link integrity should be confirmed during the same maintenance window. A degraded communication link can cause the CPU to issue spurious output commands, placing abnormal stress on relay contacts. Proactively stocking a communication module spare alongside the DNC-T2010-R20 is advisable for facilities running legacy DNC Series systems where module availability from the OEM may be limited.

Finally, for older DNC Series installations approaching end-of-support lifecycle, a comprehensive spare parts kit — including the DNC-T2010-R20, a CPU module, a power supply, at least one digital input module, and a communication module — provides the inventory depth needed to sustain operations through a planned system migration or extended service life extension program.

Strategic Replacement Solutions

The DNC-T2010-R20 is a direct replacement for any failed or degraded 20-point relay output module within the AMETEK DNC Series rack architecture. Because the DNC Series uses a standardized backplane bus, a verified original DNC-T2010-R20 can be installed without firmware changes, I/O address remapping, or control program modification — provided the replacement module matches the original slot assignment and configuration. This plug-and-replace compatibility is the primary reason maintenance teams prioritize sourcing original AMETEK modules over generic alternatives.

For facilities managing aging DNC Series installations where the original module has been discontinued or is difficult to source through standard distribution channels, TOPNLMS maintains dedicated inventory of hard-to-find DNC Series components. Each unit undergoes functional verification prior to dispatch, and our technical team can assist with cross-referencing legacy part numbers to confirm compatibility before purchase.

Stocking the DNC-T2010-R20 as a pre-positioned spare — rather than sourcing reactively during a breakdown — reduces mean time to repair (MTTR) from days to hours. For high-availability production lines, the cost of a single unplanned downtime event typically exceeds the cost of maintaining a full DNC Series spare parts inventory by an order of magnitude. Our 12-month warranty and pre-shipment testing protocol ensure that every spare you stock is ready to perform on day one of deployment.

Support FAQ

Q1: Is the DNC-T2010-R20 compatible with all AMETEK DNC Series racks?
A: The DNC-T2010-R20 is designed for the AMETEK DNC Series backplane architecture. Compatibility depends on the specific rack model and slot configuration in your installation. We recommend confirming your rack model and existing module slot assignments before ordering. Our technical team can assist with compatibility verification at no charge.

Q2: What does the 12-month warranty cover?
A: Our 12-month warranty covers functional performance defects under normal operating conditions. Each unit is tested prior to shipment. If a module fails within the warranty period due to a manufacturing or functional defect — not physical damage or misapplication — we will replace or refund the unit. Warranty claims are processed within 5 business days of receiving the returned module.

Q3: How quickly can the DNC-T2010-R20 be shipped, and what documentation is included?
A: In-stock units are dispatched within 1–3 business days. Each shipment includes a packing list, test record, and warranty certificate. Express shipping options are available for emergency breakdown situations. Contact us directly for urgent order processing.

Q4: Should I stock multiple DNC-T2010-R20 units, or is one spare sufficient?
A: For production lines with a single DNC Series cabinet, one spare unit is the minimum recommended inventory. For multi-cabinet installations or facilities with high relay cycling rates (e.g., packaging, stamping, or conveyor applications), stocking two units is advisable. Given the extended lead times sometimes associated with legacy DNC Series components, building a small buffer inventory is a low-risk strategy that pays dividends during unplanned outages.
