AMAT CDN497 0190-06178 Replacement for CDN Series: Smooth Transition & Legacy System Compatibility

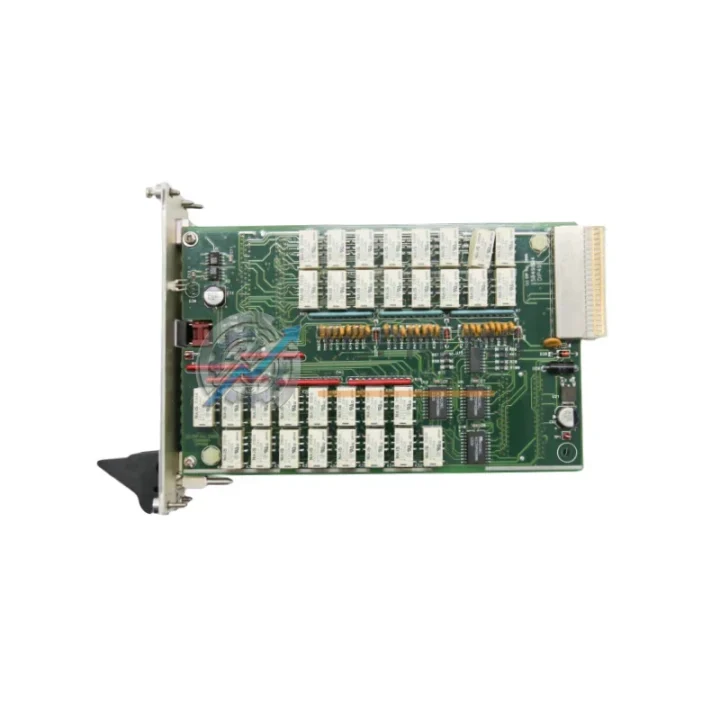

The Applied Materials CDN497 Interlock Control Module (P/N 0190-06178, cross-referenced as 0242-76611 and 0190-09062) is a critical safety and process interlock component used across AMAT’s CDN Series CVD and PVD process chambers. As semiconductor fabs and equipment maintenance teams face end-of-life challenges with aging AMAT platforms, sourcing a verified, drop-in replacement for the CDN497 has become a top priority for minimizing unplanned downtime and sustaining wafer throughput.

TOPNLMS stocks the CDN497 / 0190-06178 module as a direct replacement solution, fully tested and ready for immediate deployment. Whether you are performing a scheduled preventive maintenance swap, responding to an unplanned interlock fault, or executing a broader CDN Series platform refresh, this module is engineered to restore your chamber to full operational status with minimal intervention. No wiring changes, no firmware re-programming, and no chassis modification are required for a standard drop-in replacement — making this the lowest-risk upgrade path for CDN Series operators worldwide.

Compatibility Comparison Table

Seamless Upgrade Solutions

A CDN497 interlock module replacement rarely occurs in isolation. In practice, field engineers performing a CDN Series chamber restoration or platform upgrade will simultaneously address adjacent components to ensure system-wide reliability. During a typical CDN Series interlock module swap, the following components are commonly evaluated or replaced alongside the CDN497 to achieve a complete, validated upgrade.

The CDN Series chassis backplane should be inspected for connector wear or corrosion, particularly on systems that have operated for more than five years. The AMAT 0190-07805 I/O interface board and the 0190-11196 signal routing board are frequently replaced in the same maintenance window, as they share the same interlock signal architecture as the CDN497 and are subject to the same aging failure modes. If the chamber’s AMAT 0100-series process controller board has logged repeated interlock faults, it is advisable to validate its firmware revision against the CDN497 module’s expected handshake protocol before completing the swap.

For facilities running multiple CVD or PVD chambers on the same fab floor, the AMAT CDN Series power distribution module and the chamber isolation relay assembly are common co-replacement items. Engineers have also reported that the AMAT 0242-series signal conditioning board — which shares the 0242-76611 cross-reference with the CDN497 — may require simultaneous replacement when interlock faults are traced to signal integrity degradation rather than module failure alone. In these cases, replacing both the CDN497 and the 0242-series board in a single maintenance window eliminates the risk of a repeat fault within the same process quarter.

In retrofit scenarios where the CDN Series chamber is being integrated into a modernized fab control network, the addition of an AMAT-compatible SECS/GEM communication gateway is increasingly common. This allows legacy CDN Series equipment to report interlock status to modern MES platforms without requiring a full chamber controller upgrade. Similarly, AMAT CDN Series diagnostic cable assemblies and chamber interlock test fixtures are essential tools for verifying CDN497 module functionality post-installation before returning the chamber to production. For facilities managing a broader CDN Series fleet refresh, TOPNLMS can supply matched sets of CDN497 modules, I/O boards, and chassis components to support a coordinated multi-chamber upgrade program, reducing per-unit procurement lead time and ensuring cross-chamber firmware consistency.

Retrofit Guidance FAQ

Q: Does replacing the CDN497 (0190-06178) require any wiring changes?
A: No. The CDN497 uses the standard AMAT CDN Series backplane connector. The replacement module installs directly into the existing chassis slot without any wiring modification. Verify connector seating and torque per AMAT field service documentation before powering up.

Q: Is the CDN497 compatible with both CVD and PVD chamber configurations?
A: Yes. The CDN497 interlock module is used across multiple AMAT CDN Series chamber types, including CVD and PVD variants. Confirm your specific chamber model and chassis revision against the part number cross-reference (0190-06178 / 0242-76611 / 0190-09062) before ordering.

Q: Do I need to re-program or re-configure the replacement module?
A: In standard swap scenarios, no re-programming is required. The CDN497 module is pre-configured for CDN Series interlock bus operation. If your chamber has undergone a non-standard firmware modification, consult your AMAT field service records before installation.

Q: What communication protocol does the CDN497 use?
A: The CDN497 operates on AMAT’s proprietary CDN Series interlock bus. It does not require external Ethernet, Profibus, or DeviceNet configuration. All interlock signal routing is handled via the chassis backplane.

Q: Can the CDN497 be hot-swapped without powering down the chamber?
A: Hot-swap capability depends on your specific CDN chassis revision and chamber safety interlock configuration. Consult your AMAT chamber safety manual and local fab safety protocols before attempting a live swap. TOPNLMS recommends a controlled power-down procedure for first-time replacements.

Q: What if my chamber uses the 0242-76611 or 0190-09062 part number?
A: These are direct cross-references for the CDN497 / 0190-06178. All three part numbers refer to the same interlock control module assembly. TOPNLMS verifies cross-reference compatibility prior to shipment.

Q: How do I verify the replacement module is functioning correctly after installation?
A: After installation, perform a full interlock self-test sequence per your AMAT chamber startup procedure. Monitor the chamber controller’s interlock status display for fault-free operation through at least one complete process cycle before returning to production.

Q: What is the typical lead time and shipping arrangement?
A: In-stock units ship within 3–7 business days to major global destinations. Express shipping is available for urgent AOG-equivalent semiconductor fab situations. All units ship with full traceability records and a certificate of inspection.
