AMAT 0100-09126 4060-00633 Original Industrial Spare Centura Compatible: System Stability & Industrial Spare Maintenance Value

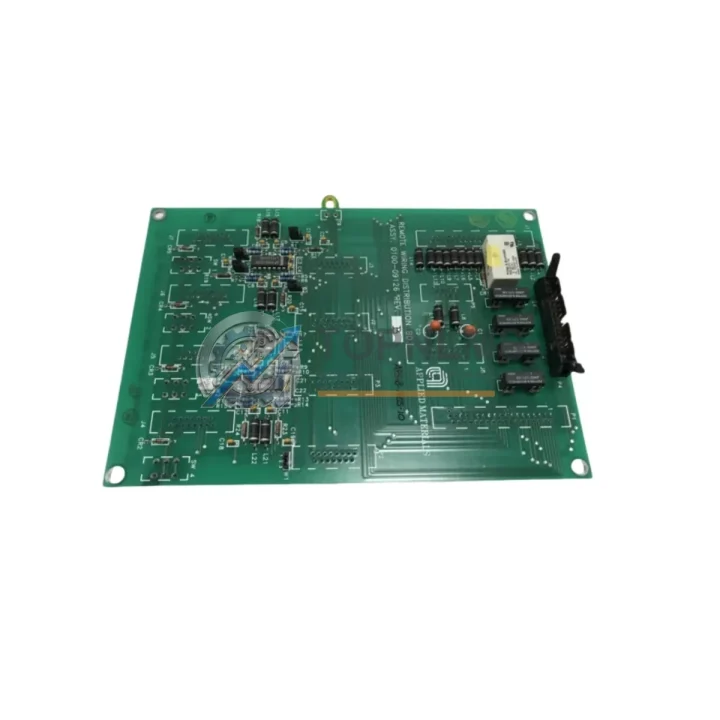

The Applied Materials (AMAT) 0100-09126 / 4060-00633 Rev.US17276 Remote Wiring Distribution Board Panel is a critical original spare component engineered for the Centura series semiconductor processing platform. In high-throughput fab environments, the integrity of the wiring distribution board directly governs signal routing, power delivery, and inter-module communication across the entire process chamber cluster. Sourcing an original, tested replacement — rather than an aftermarket substitute — is the single most effective measure to preserve system uptime, maintain process repeatability, and protect your capital equipment investment.

At TOPNLMS, every unit of the AMAT 0100-09126 / 4060-00633 is inspected, function-tested, and shipped with a 12-month warranty, giving maintenance engineers and procurement teams the confidence to plan scheduled replacements without unplanned downtime risk.

Critical Technical Specs

Preventive Maintenance Strategy

A wiring distribution board failure rarely occurs in isolation. In the Centura platform, the distribution board sits at the intersection of multiple subsystems — any degradation in its connectors, traces, or relay contacts cascades into erratic I/O behavior, false interlocks, and ultimately unplanned chamber downtime. A disciplined preventive maintenance (PM) program should treat the 0100-09126 / 4060-00633 as part of a broader inspection cycle rather than a standalone replacement event.

During a scheduled PM or corrective maintenance visit, engineers should simultaneously inspect the AMAT 0100-09126 power supply interface harness and the associated chamber I/O relay modules, as connector fatigue on these components often precedes board-level failures. The Centura mainframe backplane connectors and inter-chamber communication cables should be checked for oxidation and mechanical wear — degraded contacts here can mimic board faults and lead to misdiagnosis.

For the RF subsystem, the RF match network control board and RF power delivery cables share the same wiring harness routing as the distribution board; a single PM window should cover all three. Similarly, the process kit sensor wiring loom — including thermocouple leads and pressure transducer signal cables — routes through the distribution panel and warrants inspection for insulation breakdown.

On the control side, the Centura system controller I/O card (typically a VME-format digital I/O board) and the MFC (mass flow controller) signal conditioning module are upstream dependencies of the distribution board. If the 0100-09126 / 4060-00633 is being replaced due to signal integrity issues, these upstream modules should be verified before the new board is commissioned to avoid repeat failures.

Procurement teams managing multi-chamber fabs should consider stocking the AMAT 0100-09126 / 4060-00633 alongside the Centura chamber lid assembly wiring harness and the robot blade position sensor cable assembly — both are high-wear items with similar replacement intervals. Maintaining a minimum buffer of one board per active Centura cluster reduces mean-time-to-repair (MTTR) from days to hours.

Strategic Replacement Solutions

The AMAT 0100-09126 / 4060-00633 Rev.US17276 is a direct original replacement for aging Centura platforms that may have been running the same wiring distribution board for 10–15 years. As fabs extend equipment life beyond original design cycles to defer capital expenditure, the risk of board-level failures — caused by electrolytic capacitor aging, connector fretting corrosion, and PCB trace fatigue — increases significantly.

Using an original AMAT board (rather than a reverse-engineered aftermarket alternative) ensures full pin-for-pin compatibility with the Centura mainframe wiring harness, preserves OEM interlock logic, and eliminates the re-qualification overhead that aftermarket substitutes typically require. The Rev.US17276 designation confirms this unit meets the latest AMAT engineering change order (ECO) baseline, incorporating any field-identified reliability improvements over earlier revisions.

For fabs operating multiple Centura chambers across CVD, PVD, and etch applications, standardizing on the 0100-09126 / 4060-00633 as the single approved spare across all chamber types simplifies inventory management, reduces training burden for maintenance technicians, and enables cross-chamber cannibalization in emergency scenarios — a critical advantage during unplanned outages.

TOPNLMS sources, inspects, and warehouses original AMAT spare parts to support rapid deployment. Each unit undergoes pre-shipment functional verification, is packaged in ESD-safe materials, and ships with full traceability documentation to support your internal maintenance records and audit requirements.

Support FAQ

Q1: What is the warranty coverage for the AMAT 0100-09126 / 4060-00633?
All units sold by TOPNLMS carry a 12-month warranty from the date of shipment. If the board exhibits functional failure under normal operating conditions within the warranty period, we provide a replacement or full refund. Warranty claims require return of the defective unit with a brief failure description.

Q2: How do I verify compatibility with my specific Centura chamber configuration?
The 0100-09126 / 4060-00633 Rev.US17276 is compatible with standard Centura mainframe configurations across CVD, PVD, and etch platforms. To confirm compatibility with your specific chamber revision, provide your chamber serial number and current board revision to our technical team at [email protected]. We will cross-reference against AMAT engineering records before shipment.

Q3: What pre-shipment testing is performed on each unit?
Each board is visually inspected for physical damage, connector integrity, and PCB condition, then subjected to functional continuity testing across all signal and power circuits. Units that do not pass all test criteria are quarantined and not offered for sale. Test records are available upon request for quality-critical procurement processes.

Q4: What is the recommended inventory strategy for high-utilization Centura fabs?
For fabs operating three or more active Centura chambers, we recommend maintaining a minimum of one 0100-09126 / 4060-00633 board per cluster in on-site buffer stock. Given typical board replacement intervals of 5–8 years under normal operating conditions, the carrying cost of a single spare is negligible compared to the cost of a 24–72 hour unplanned chamber outage. Contact us for volume pricing on multi-unit procurement orders.
