ALSTOM P14DB11A330500A Upgrade Solution for MiCOM P14D: Seamless Transition for Legacy Distance Protection Systems

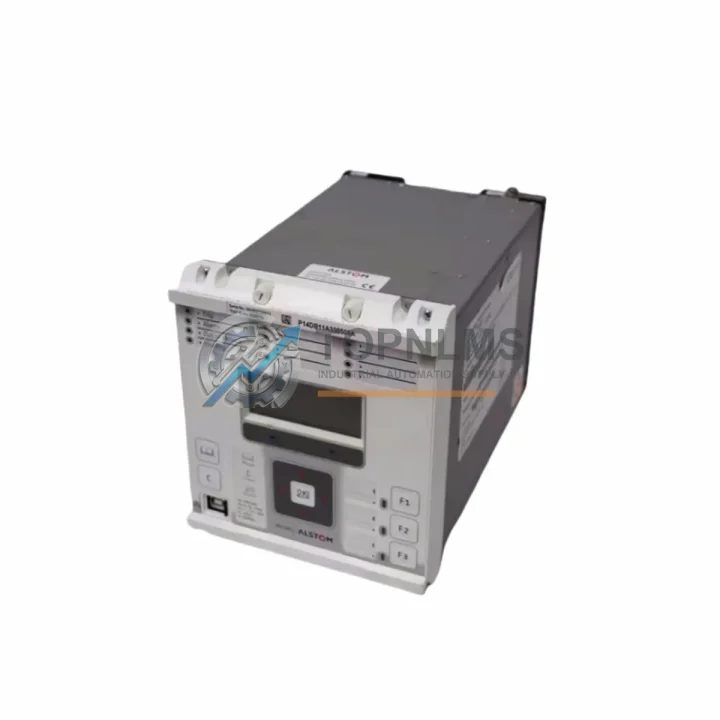

The ALSTOM P14DB11A330500A is a fully specified variant of the MiCOM P14D distance protection relay platform — one of the most widely deployed numerical protection IEDs in transmission and sub-transmission power systems worldwide. Engineered by ALSTOM Grid (now part of GE Grid Solutions), the P14D series was designed to replace aging electromechanical and static protection relays with a modern, multi-function numerical IED that delivers superior measurement accuracy, flexible communication, and comprehensive fault recording. For utilities, industrial power users, and EPC contractors managing aging substation infrastructure, the P14DB11A330500A represents a proven, field-validated upgrade path that minimizes engineering risk and commissioning time.

The SKU suffix B11A330500A encodes the precise hardware configuration: voltage transformer input range, current input rating, communication interface options, output relay count, binary input configuration, and power supply specification. This level of factory configuration ensures that the unit arrives ready for direct installation into your existing panel cutout and terminal wiring scheme — eliminating the need for costly panel modifications or custom wiring adapters in most standard replacement scenarios.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from legacy distance protection to the P14DB11A330500A rarely involves a single relay swap in isolation. In practice, the upgrade is part of a broader substation modernization effort that touches multiple IEDs, communication infrastructure, and auxiliary equipment within the same protection panel or switchgear bay.

For substations running older ALSTOM or GEC Alsthom protection schemes, the MiCOM P14D is frequently installed alongside the MiCOM P12x overcurrent and earth fault protection relay, which handles backup protection on the same feeder. In transformer protection bays, the MiCOM P63x transformer differential relay is a common companion unit, sharing the same IEC 61850 station bus and GOOSE messaging scheme. Where busbar protection is involved, the MiCOM P74x busbar protection IED integrates directly into the same substation automation architecture.

Communication infrastructure is equally critical. The P14DB11A330500A supports IEC 61850 over Ethernet, which typically requires a managed industrial Ethernet switch — such as the RUGGEDCOM RS900 or equivalent IEC 61850-3 compliant switch — to form the station LAN. For legacy serial-based SCADA systems still running IEC 60870-5-101 or DNP3 over RS-232/RS-485, a protocol converter or RTU gateway (such as the ALSTOM MiCOM C264 substation controller) bridges the P14D’s modern Ethernet port to the existing SCADA master.

At the panel wiring level, the replacement process often requires a terminal block marshalling module or a test block (MMLG/MMLB type) to safely isolate CT and VT circuits during commissioning without de-energizing the primary system. ALSTOM’s own MiCOM Px40 series test plugs are designed for this purpose and are strongly recommended for any live-panel retrofit. Where CT wiring must be re-routed, shorting terminal blocks from Phoenix Contact or Weidmüller are standard practice to prevent open-circuit CT hazards during the changeover.

For sites upgrading from older LFZP111 or LFZP211 distance relays — the direct electromechanical predecessors of the P14D — the terminal wiring layout differences are well-documented in ALSTOM’s migration application notes. In most cases, the CT and VT secondary wiring can be re-terminated directly onto the P14D’s rear terminal block with only minor re-labeling, while the trip and alarm output wiring requires a straightforward mapping exercise using the P14D’s configurable output relay matrix.

Where the substation HMI or operator workstation needs updating, the MiCOM S1 Agile engineering software (PC-based) serves as the primary settings and configuration tool for the P14DB11A330500A, replacing older relay-specific setting tools. For sites requiring a local HMI panel, the MiCOM C264 or a compatible bay controller provides local display, event logging, and SCADA gateway functions in a single 19-inch rack unit.

Retrofit Guidance FAQ

Q1: Can the P14DB11A330500A be wired directly into an existing panel designed for an LFZP or MHOZ relay without panel modifications?
In most cases, yes — with a terminal mapping exercise. The P14D’s rear terminal block uses a standard pitch that accommodates most existing cable lug sizes. The key step is mapping the legacy relay’s trip, alarm, binary input, CT, and VT terminals to the P14D’s documented terminal layout. ALSTOM’s P14D Technical Manual (Chapter: Installation) provides a full terminal assignment table. Panel cutout dimensions may require a filler plate or adapter frame if the legacy relay used a non-standard chassis size.

Q2: Is the P14DB11A330500A compatible with IEC 61850 GOOSE messaging for inter-relay tripping schemes?
Yes. The P14D platform supports IEC 61850 Edition 1 and Edition 2 GOOSE messaging, enabling high-speed inter-relay communication for permissive overreach transfer trip (POTT), direct transfer trip (DTT), and busbar protection schemes. The IEC 61850 configuration is managed via the MiCOM S1 Agile tool using standard SCL (System Configuration Language) files. Ensure your station LAN switch supports IEC 61850-3 environmental and performance requirements.

Q3: What programming or settings migration is required when replacing a legacy static relay with the P14DB11A330500A?
Legacy electromechanical and static relays use impedance reach settings (Zone 1, Zone 2, Zone 3 in ohms secondary) and time delay settings that translate directly into the P14D’s setting groups. The P14D supports up to four independent setting groups, allowing engineers to pre-load and verify settings before cutover. Settings are entered via MiCOM S1 Agile software or the relay’s front-panel HMI. TOPNLMS recommends a full secondary injection test using a relay test set (e.g., OMICRON CMC series) to verify all protection functions before energization.

Q4: How does TOPNLMS handle compatibility verification and post-sale technical support for this replacement?
Every P14DB11A330500A unit shipped by TOPNLMS undergoes pre-shipment functional testing covering power-up self-diagnostics, communication port verification, and output relay continuity checks. Our technical team can assist with terminal mapping, settings migration guidance, and MiCOM S1 Agile configuration questions. All units are covered by a 12-month warranty from the shipment date. For urgent replacement requirements, expedited shipping is available to minimize substation downtime.

Warranty Assurance

TOPNLMS provides a 12-month warranty on all P14DB11A330500A units from the date of shipment. Each unit is subject to pre-shipment inspection including power supply verification, self-diagnostic pass confirmation, communication port functionality check, and output relay contact resistance measurement. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS offers a replacement-first policy: a verified replacement unit is dispatched as soon as the defective unit is confirmed, minimizing substation downtime. Our after-sales response target is within 24 hours of a warranty claim submission. Replacement units are shipped with full documentation including test records and configuration baseline files where applicable.

For long-term procurement planning, TOPNLMS maintains stock of MiCOM P14D series variants to support ongoing maintenance and emergency replacement requirements. Customers managing aging substation fleets are encouraged to contact our team to discuss framework supply agreements for guaranteed stock availability and priority dispatch.
