ALSTOM 8172-4003 Replacement for 8000-Series DCS

Product Overview

ALSTOM 8172-4003 Replacement for 8000-Series DCS: Seamless Migration & Smooth Transition

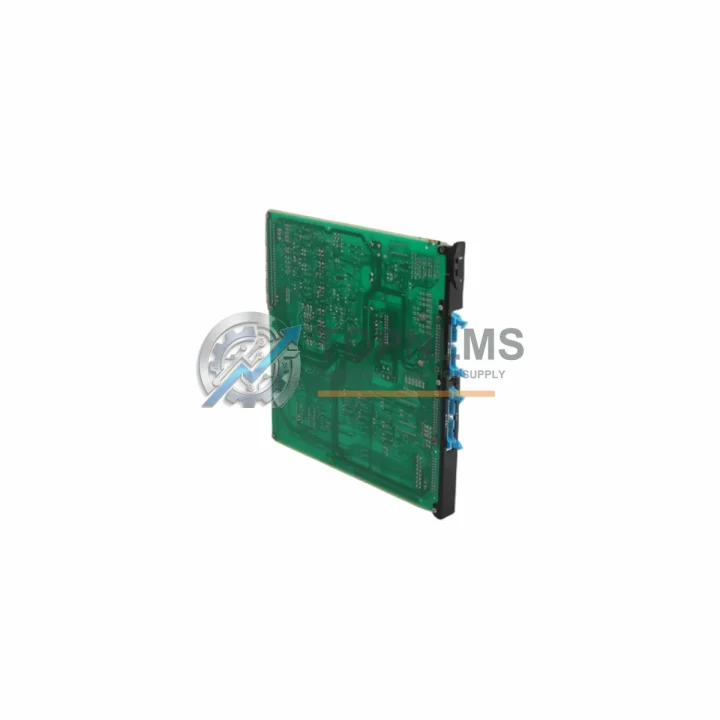

The ALSTOM 8172-4003 is a digital output module designed for the ALSTOM 8000-Series Distributed Control System (DCS) platform — a proven architecture widely deployed in power generation, utilities, and heavy process industries. As the 8172-4003 approaches end-of-life and spare inventory becomes increasingly scarce, plant engineers and procurement teams face mounting pressure to secure reliable replacement units that preserve existing wiring infrastructure, control logic, and system architecture without triggering a full DCS migration.

TOPNLMS supplies the ALSTOM 8172-4003 as a direct drop-in replacement module, sourced from verified industrial channels and subjected to pre-shipment functional testing. Each unit is dispatched from our Xiamen warehouse with a 12-month warranty, supporting your maintenance planning and reducing unplanned downtime risk.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 8172-4003 replacement rarely happens in isolation. In most 8000-Series DCS retrofit projects, the digital output module is just one component in a broader system refresh. During the migration process, engineers typically address several interconnected subsystems simultaneously to minimize the number of planned outage windows.

On the I/O side, the 8172-4003 is commonly replaced alongside digital input modules from the same 8000-Series rack — units such as the ALSTOM 8172-4103 Digital Input Module or the 8172-4203 Analog Input Module, which share the same backplane and field-wiring terminal philosophy. Replacing the full I/O complement in a single outage window is a best practice that eliminates repeat shutdowns.

The 8000-Series rack itself — the ALSTOM 8000-Series I/O Rack / Backplane Assembly — should be inspected for corrosion, connector wear, and backplane bus integrity before the new module is installed. A degraded backplane can cause intermittent faults that are difficult to distinguish from module failures, leading to unnecessary repeat replacements.

Power distribution within the control cabinet is another critical consideration. The ALSTOM 8000-Series Power Supply Module (typically a 24 VDC redundant PSU) must be verified to deliver stable voltage within tolerance before commissioning the replacement DO module. Voltage sag or ripple on the backplane rail is a common root cause of premature module failure in aging DCS installations.

For sites migrating from the ALSTOM 8000-Series to a modern DCS platform — such as ABB System 800xA, Emerson DeltaV, or Honeywell Experion — the 8172-4003 is often used as a bridge solution to extend the life of the existing system while the new platform is engineered and commissioned. In these hybrid architectures, signal isolators and marshalling terminal blocks (such as Phoenix Contact or Weidmüller DIN-rail isolators) are used to interface legacy field wiring with the new I/O subsystem.

Communication continuity is equally important. If the 8000-Series DCS communicates upstream via Modbus RTU, PROFIBUS DP, or a proprietary ALSTOM serial bus, the replacement module must be confirmed compatible with the existing communication card — typically an ALSTOM 8000-Series Communication Interface Module — to avoid disrupting the supervisory SCADA or historian data path.

For sites that also operate ALSTOM ALSPA or Contronic P controllers, the ALSTOM Contronic P CPU Module and associated ALSPA MV3000 Drive Interface Cards are frequently part of the same modernization scope, particularly in power plant turbine control and generator excitation systems where the DCS and drive systems share a common control network.

Finally, field commissioning of the replacement 8172-4003 requires a compatible DCS programming terminal or engineering workstation running the ALSTOM 8000-Series configuration software. TOPNLMS recommends verifying the software version and license status before scheduling the replacement outage to avoid delays during loop checkout and I/O forcing procedures.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing the 8172-4003?
A: Yes. The 8172-4003 uses the standard 8000-Series field terminal interface. Existing cable terminations at the marshalling cabinet can be retained without re-labelling or re-routing, provided the terminal block assignments match the original I/O list.

Q: Do I need to modify the DCS control program after replacement?
A: No program changes are required for a like-for-like 8172-4003 replacement. The module address, I/O mapping, and channel configuration remain identical. However, if the replacement unit has a different firmware revision, a DCS controller re-download may be required — confirm with your DCS vendor’s compatibility matrix.

Q: Is the 8172-4003 compatible with PROFIBUS DP or Modbus communication?
A: The 8172-4003 communicates via the internal 8000-Series backplane bus. External fieldbus protocols (PROFIBUS DP, Modbus) are handled by dedicated communication interface modules in the same rack. The DO module itself does not require fieldbus configuration.

Q: Will the replacement module fit in the existing control cabinet without modification?
A: Yes. The 8172-4003 uses the standard 8000-Series module form factor and slides directly into the existing rack slot. No cabinet cutouts, DIN-rail adapters, or additional mounting hardware are required.

Q: How do I verify the replacement module before installation?
A: TOPNLMS performs pre-shipment functional testing on all 8172-4003 units. Upon receipt, we recommend a bench power-up test using the DCS engineering workstation to verify channel status LEDs and I/O forcing response before installing in the live rack.

Q: What is the lead time and shipping arrangement?
A: In-stock units ship within 1–3 business days from Xiamen via DHL Express, FedEx International Priority, or sea freight for bulk orders. Estimated transit time to most destinations is 3–7 business days by air. Contact [email protected] for real-time stock confirmation and freight quotation.

Warranty Assurance

Every ALSTOM 8172-4003 Digital Output Module supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers functional failure under normal operating conditions and includes free replacement or full refund at TOPNLMS’s discretion.

Pre-shipment testing: Each unit undergoes power-on functional verification, output channel actuation testing, and visual inspection for physical damage, connector integrity, and component condition before dispatch.

Replacement support: In the event of a warranty claim, TOPNLMS will dispatch a replacement unit within 3 business days of receiving the defective module and a completed fault report. Return shipping costs for warranty claims are covered by TOPNLMS for orders above USD 500.

After-sales response: Our technical support team responds to warranty and application enquiries within 24 hours on business days. For urgent plant situations, priority support is available via WhatsApp at +86 18359293191.

Procurement assurance: TOPNLMS issues a commercial invoice, packing list, and certificate of conformance with every shipment. For customers requiring third-party inspection or FAT (Factory Acceptance Test) documentation, please contact us in advance to arrange.
