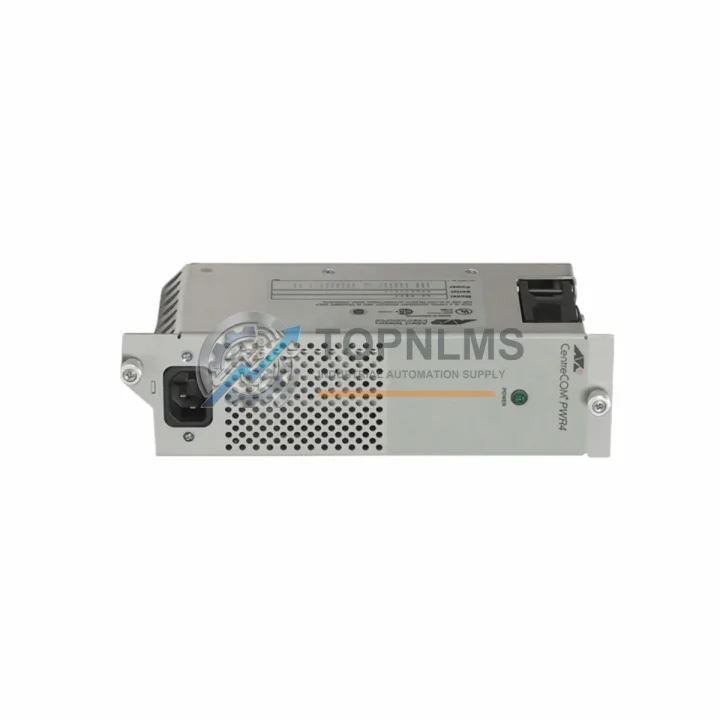

ALLIED AT-PWR4 Original Industrial Spare Power Compatible

Product Overview

ALLIED AT-PWR4 Original Industrial Spare Power Supply: System Stability & Maintenance Value

The ALLIED AT-PWR4 is a proven industrial power supply module engineered for demanding automation environments. Whether you are managing a scheduled shutdown, responding to an unplanned fault, or building a strategic spare parts inventory, the AT-PWR4 delivers the electrical reliability that keeps your control system online. Sourced directly from verified supply channels, each unit undergoes pre-shipment functional testing and is backed by a 12-month warranty — giving maintenance engineers and procurement teams the confidence to act decisively when downtime risk is highest.

In modern industrial facilities, power supply modules are among the most failure-prone components in any control cabinet. Voltage fluctuations, capacitor aging, thermal cycling, and load imbalance all accelerate wear on power supply units. The AT-PWR4 is designed to replace aging or failed units in ALLIED-based control architectures without requiring system reconfiguration, making it an ideal drop-in solution for facilities that need to restore operations quickly and maintain original system compatibility.

Critical Technical Specs

Preventive Maintenance Strategy

A power supply module failure rarely occurs in isolation. When the AT-PWR4 is flagged for replacement during a control cabinet inspection or a fault-triggered shutdown, experienced maintenance engineers know that adjacent components in the same electrical circuit deserve equal scrutiny. A systematic approach to preventive maintenance around the AT-PWR4 replacement should include the following checks and, where appropriate, simultaneous procurement of related spare parts.

Begin with the 24 VDC distribution terminal blocks and fuse modules downstream of the power supply. Loose terminals and blown fuse elements are frequently the root cause of apparent power supply faults — verifying these before condemning the AT-PWR4 itself can save significant time. If the fuse modules show signs of heat discoloration or the terminal blocks exhibit oxidation, replace them as part of the same maintenance window.

Next, inspect the I/O modules powered by the AT-PWR4 rail. In ALLIED AT Series architectures, digital input modules (DI) and digital output modules (DO) share the same 24 VDC bus. A shorted output channel on a DO module can cause sustained overcurrent that degrades the power supply over time. Checking the I/O module status LEDs and performing a channel-by-channel load test during the maintenance window is strongly recommended. Keeping one or two spare I/O modules — particularly the most heavily loaded output modules in your system — is a sound inventory strategy.

The communication modules and fieldbus interface cards in the same rack should also be verified. PROFIBUS DP interface modules, MODBUS RTU communication cards, and Ethernet gateway modules are sensitive to power quality. If the AT-PWR4 has been operating in a degraded state, these modules may have experienced data corruption or firmware instability. A firmware refresh or module swap during the same downtime window prevents secondary failures after the power supply is restored.

For facilities running legacy ALLIED AT Series PLCs, the CPU module and its backup battery warrant inspection during any power supply replacement. A weak or expired CPU battery combined with a power supply swap creates a risk of program loss on restart. Confirm battery voltage and replace if the module has been in service for more than two years. Similarly, the controller backplane or rack chassis should be inspected for backplane connector corrosion, which can cause intermittent communication faults that are difficult to diagnose after the power supply is restored.

Finally, review the signal isolators and relay output modules in the same control loop. These components sit at the boundary between the PLC’s 24 VDC logic world and field devices operating at higher voltages. Relay contacts wear with switching cycles, and signal isolators can drift out of calibration over time. Replacing worn relay modules and recalibrating or swapping signal isolators during the same planned outage maximizes the value of each maintenance window and extends the interval before the next required shutdown.

Strategic Replacement Solutions

The AT-PWR4 is specifically designed to serve as a direct replacement for aging or end-of-life power supply modules within the ALLIED AT Series control platform. Unlike generic third-party power supplies that require output voltage trimming, connector adaptation, or DIN rail bracket modification, the AT-PWR4 installs into the original mounting position and connects to the existing wiring harness without modification. This plug-and-play compatibility is critical in time-sensitive maintenance scenarios where every hour of downtime carries measurable production cost.

For facilities managing older ALLIED control systems that are no longer supported by the original manufacturer’s service network, maintaining a stock of AT-PWR4 units is a proven strategy for extending system life by three to five years beyond the nominal end-of-support date. Rather than committing to a full system migration — which typically requires months of engineering, validation, and operator retraining — a well-stocked spare parts program centered on modules like the AT-PWR4 allows production to continue uninterrupted while a longer-term modernization plan is developed and budgeted.

Each AT-PWR4 unit shipped by TOPNLMS is individually tested for output voltage accuracy, ripple, and protection circuit function prior to dispatch. Units are packaged in anti-static, moisture-resistant packaging suitable for long-term storage in a spare parts room or tool crib. With a 12-month warranty covering manufacturing defects and functional failures, procurement teams can confidently add AT-PWR4 units to their annual MRO (Maintenance, Repair, and Operations) budget without the risk of carrying dead stock.

Support FAQ

Q1: How long can I store the AT-PWR4 before installation?
The AT-PWR4 can be stored for up to 24 months in a dry, temperature-controlled environment (0°C to 40°C, <85% RH non-condensing) without degradation of electrical performance. Anti-static packaging should remain sealed until installation. The 12-month warranty period begins from the date of shipment, not the date of installation.

Q2: Is the AT-PWR4 compatible with my existing ALLIED AT Series rack without any wiring changes?
Yes. The AT-PWR4 is designed as a form-fit-function replacement for the original AT Series power supply position. Output connector pinout, DIN rail footprint, and mounting dimensions are consistent with the AT Series standard. No wiring modification or adapter is required for a direct swap. Always verify output voltage with a calibrated multimeter after installation before returning the system to service.

Q3: What pre-shipment testing does each AT-PWR4 unit undergo?
Each unit is tested for: (1) output voltage accuracy within ±1% of nominal, (2) output ripple within specification under rated load, (3) overvoltage and overcurrent protection circuit activation, and (4) thermal performance under a 30-minute burn-in load test. A test record is available upon request. Units that do not pass all four criteria are not shipped.

Q4: How do I validate compatibility before committing to a bulk purchase?
We recommend ordering a single unit for bench testing and in-system validation before placing a bulk order. Our technical team can provide the AT-PWR4 datasheet and application notes to support your compatibility assessment. For bulk orders of five or more units, contact us directly for lead time confirmation and volume pricing. All units in a bulk order are drawn from the same verified batch and carry the same 12-month warranty.
