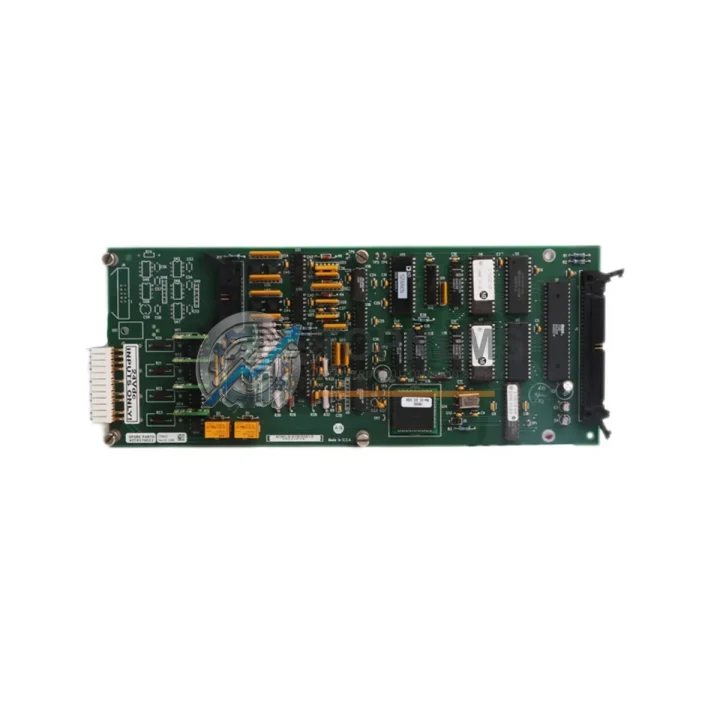

Allen-Bradley SP-170023 SLC 500 Replacement PC Board

Product Overview

Allen-Bradley SP-170023 SLC 500 Replacement PC Board: Seamless Migration from Legacy SLC 500 Systems

The Allen-Bradley SP-170023 (cross-referenced as SP-170013 and SP-170016-01) is a critical processor/PC board assembly within the Rockwell Automation SLC 500 programmable controller platform. As the SLC 500 series approaches end-of-life and spare parts become increasingly scarce, facilities running 1747-L20, 1747-L30, 1747-L40, or 1747-L553 fixed and modular controllers face mounting pressure to secure verified replacement boards before unplanned downtime forces emergency shutdowns. TOPNLMS stocks tested, ready-to-ship SP-170023 boards sourced from decommissioned OEM equipment and authorized surplus channels, giving your maintenance team a direct path to restoring production without committing to a full controller migration.

Whether your plant is running a legacy SLC 5/01, SLC 5/02, or SLC 5/03 processor and the existing PC board has failed due to capacitor aging, power surge damage, or firmware corruption, the SP-170023 provides a direct board-level replacement that preserves your existing ladder logic program, I/O wiring, and rack configuration. No re-engineering of the 1746 I/O backplane is required. The board slots into the same 1746-A4, 1746-A7, 1746-A10, or 1746-A13 modular rack without mechanical modification, and the existing 1747-C10 or 1747-C13 programming cable connection to RSLogix 500 or RSLogix Micro remains fully compatible.

For sites executing a phased migration from SLC 500 to MicroLogix 1400 or CompactLogix L1x/L2x/L3x, the SP-170023 serves as a cost-effective bridge solution. Rather than forcing an immediate full-system cutover—which requires re-mapping all 1746-IB16, 1746-OB16, 1746-IA16, and 1746-OW16 I/O modules, rewriting program files, and retraining operators—a verified replacement board extends the operational life of the existing SLC 500 rack by 3–5 years, allowing a controlled, budget-phased transition. During this window, engineering teams can develop and validate the new CompactLogix program in parallel, test communications with existing SCADA systems over DH+ or DH-485 networks, and schedule cutover during planned maintenance windows rather than emergency shutdowns.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SLC 500 PC board replacement or system migration rarely involves a single component. In practice, maintenance engineers sourcing the SP-170023 are simultaneously evaluating the condition of adjacent system components to avoid repeat failures. The 1746-P2 or 1746-P4 power supply module is a common co-failure item—capacitor degradation in aging PSUs can cause the very board failures that necessitate SP-170023 replacement, so inspecting or proactively replacing the power supply during the same maintenance window is strongly recommended.

On the I/O side, 1746-IB16 DC input modules and 1746-OB16 DC output modules that have been in continuous service for 10–15 years may exhibit intermittent channel failures. Replacing these alongside the PC board eliminates diagnostic ambiguity during post-repair commissioning. For analog signal chains, the 1746-NI4 analog input module and 1746-NO4I analog output module should be verified for calibration drift before returning the system to production.

Communication infrastructure is equally important. If the plant network relies on a 1747-SDN DeviceNet Scanner or a 1747-KE DH-485 to RS-232 interface module for SCADA connectivity, these should be tested for communication integrity after the board swap. Sites using a 1784-PCMK or 1784-U2DHP USB-to-DH+ adapter for programming access should confirm driver compatibility with the replacement board’s firmware revision before going live.

For facilities planning a longer-term migration to the CompactLogix or MicroLogix 1400 platform, the 1769-L30ER or 1769-L33ER CompactLogix controller offers a natural upgrade path, with EtherNet/IP replacing legacy DH+ networks and 1769 Compact I/O modules replacing the 1746 I/O rack. TOPNLMS can assist in sourcing both the immediate SP-170023 replacement and the target-platform hardware to support a phased migration strategy.

Retrofit Guidance FAQ

Q: Can I upload my existing SLC 500 program to the replacement SP-170023 board without modification?
A: Yes. Connect via the existing 1747-C10 or 1747-C13 programming cable, open your saved .RSS project file in RSLogix 500, and download to the replacement processor. No program modifications are required for a like-for-like board replacement within the same processor series (5/01, 5/02, or 5/03).

Q: Is the wiring to the 1746 I/O modules affected by the board replacement?
A: No. The SP-170023 is a processor/PC board assembly internal to the SLC 500 controller housing. Field wiring to the 1746 I/O terminal blocks is completely unaffected. No rewiring is required.

Q: Will my DH+ or DH-485 network communication resume automatically after replacement?
A: Communication parameters (node address, baud rate) are stored in the processor program file. After downloading your existing program, network communication will resume with the same configuration. Verify node address settings in RSLogix 500 Channel Configuration before going online.

Q: Does the replacement board fit in the same physical space in the control cabinet?
A: Yes. The SP-170023 is a direct form-factor replacement for the original board assembly. No control cabinet modifications, DIN rail changes, or rack repositioning are required.

Q: What if my processor series is SLC 5/04 or SLC 5/05?
A: The SP-170023 / SP-170013 / SP-170016-01 is specific to the SLC 5/01–5/03 processor family. SLC 5/04 and 5/05 processors use different board assemblies. Please contact TOPNLMS with your full catalog number (e.g., 1747-L541, 1747-L553) to confirm the correct replacement part.

Q: How do I verify the board is functional before installing it in the production rack?
A: TOPNLMS performs functional power-on testing on all boards prior to shipment. Upon receipt, you can perform a bench test by installing the board in a spare rack with a known-good 1746-P2 power supply and verifying the processor status LEDs (RUN, FLT, BATT) before installation in the production system.

Warranty Assurance

Every SP-170023 / SP-170013 / SP-170016-01 PC board shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment testing protocol includes power-on functional verification, communication port integrity check, and visual inspection for physical defects. DOA (Dead on Arrival) units are replaced at no cost with priority shipping. Warranty claims for functional failures within the 12-month period are processed within 3 business days of fault confirmation, with replacement units dispatched from our Xiamen warehouse. We maintain buffer stock of SP-170023 and related SLC 500 components to ensure rapid fulfillment for both single-unit emergency orders and multi-unit planned procurement.

For B2B procurement teams, TOPNLMS provides commercial invoices, packing lists, and test reports upon request. EXW Xiamen and DDP shipping terms are available. Standard lead time for in-stock units is 1–3 business days. Express DHL/FedEx international shipping is available for urgent requirements. Contact our technical sales team at [email protected] or +86 18359293191 to confirm stock availability, request a quotation, or discuss volume pricing for MRO inventory programs.
