Allen-Bradley SP-122972 Replacement for PLC-5/SLC

Product Overview

Allen-Bradley SP-122972 Replacement for PLC-5/SLC: Smooth Migration from Legacy Control Systems

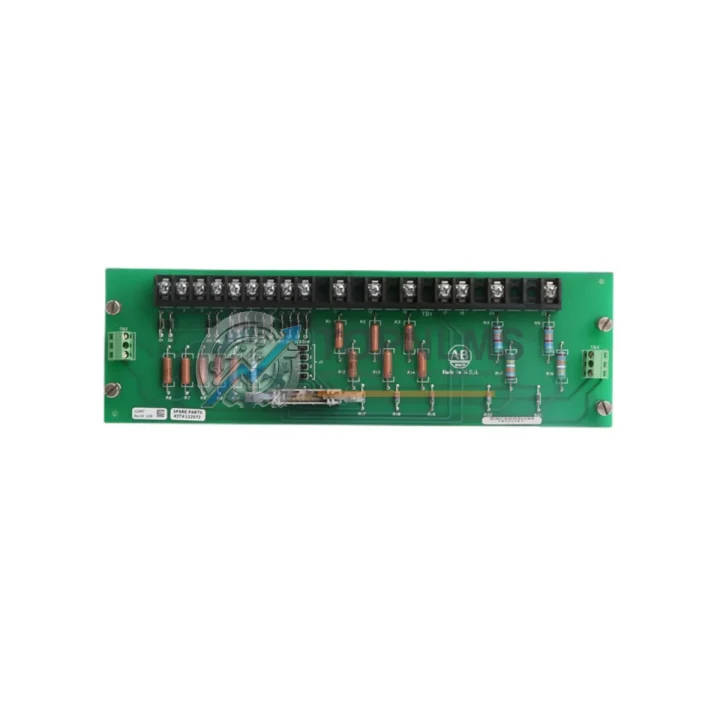

The Allen-Bradley SP-122972 (also cross-referenced as SP-122967 and 122969-01) is a critical PC board assembly used across the PLC-5 and SLC control platform families. As Rockwell Automation has progressively discontinued legacy PLC-5 and SLC 500 hardware, facilities running these platforms face increasing pressure to source reliable replacement boards or execute a controlled migration to supported architectures. TOPNLMS supplies this board as a direct replacement component, enabling engineers to restore system functionality with minimal downtime while planning a longer-term migration strategy.

Whether your plant is operating a PLC-5/10, PLC-5/20, PLC-5/30, PLC-5/40, or PLC-5/60 processor rack, or a legacy SLC 500 modular chassis, the SP-122972 board addresses common failure modes including power cycling faults, communication loss, and processor board errors. Our inventory is sourced, tested, and shipped from Xiamen with full traceability documentation to support your maintenance records.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PLC-5 or SLC 500 board replacement rarely involves a single component in isolation. In most retrofit and migration projects, the SP-122972 board replacement is performed alongside a broader assessment of the control cabinet. Engineers frequently address the 1771-A2B or 1771-A4B I/O chassis backplane condition at the same time, since a failed processor board often indicates thermal stress that may have affected adjacent modules. Similarly, the 1771-OBD or 1771-IBD discrete I/O modules in the same rack should be inspected and tested before returning the system to production.

For facilities running DH+ networks, the 1784-KTX or 1784-PKTX communication interface cards used for RSLogix 5 programming access are essential tools during commissioning after a board swap. If the plant is also evaluating a migration path toward ControlLogix or CompactLogix, the 1756-DHRIO or 1756-RIO bridge modules can be introduced to maintain backward compatibility with existing Remote I/O drops and DH+ segments while the new platform is commissioned in parallel.

Power supply integrity is another common concern during PLC-5 maintenance windows. The 1771-P4S power supply module should be load-tested before the replacement board is installed to avoid a repeat failure. For SLC 500 systems, the 1746-P4 power supply is the equivalent component to verify. In control cabinets where space is constrained, signal isolators and terminal block assemblies from the 1492-IFM series can simplify field wiring reconnection after the board is replaced, reducing the risk of wiring errors during reassembly.

If your migration roadmap includes upgrading the HMI layer, PanelView 550 or PanelView 600 terminals currently communicating over DH-485 can continue to operate without modification after the SP-122972 board is restored, preserving your operator interface investment during the transition period.

Retrofit Guidance FAQ

Q: Do I need to re-download the PLC program after replacing the SP-122972 board?
A: In most cases, no. The PLC-5 processor stores the user program in battery-backed RAM on the processor module itself, not on the SP-122972 board. Verify battery condition before the swap and confirm the program is intact via RSLogix 5 after power-up. As a precaution, always back up the program to a laptop via the 1784-KTX or serial port before beginning any board-level work.

Q: Will my DH+ and Remote I/O network come back online automatically after the board replacement?
A: Yes, provided the node address and baud rate settings on the processor are preserved. The SP-122972 board does not store network configuration independently — these parameters reside in the processor’s configuration memory. Confirm DH+ node addresses and RIO rack/group assignments in RSLogix 5 after the swap to ensure no address conflicts exist on the network.

Q: Is physical installation a direct swap with no chassis modification?
A: Yes. The SP-122972 uses the same PCB form factor and connector pinout as SP-122967 and 122969-01. Power down the chassis, discharge static, remove the failed board, seat the replacement, and restore power. No drilling, bracket modification, or chassis alteration is required.

Q: What if my system uses both PLC-5 and SLC 500 racks in the same cabinet?
A: The SP-122972 is specific to the PLC-5 platform. SLC 500 processor boards use a different form factor and are not interchangeable. If you are managing a mixed-platform cabinet, ensure you have identified the correct chassis and processor slot before ordering. Contact us with your full system configuration if you need assistance identifying the correct part.

Q: Can this board be used as a migration bridge to ControlLogix?
A: The SP-122972 is a like-for-like replacement, not a migration bridge. It restores your existing PLC-5 system to operational status. If your goal is to migrate to ControlLogix 5580 or CompactLogix 5380, a separate migration project using the 1756-DHRIO module and Rockwell’s PLC-5 to Logix migration tools would be the appropriate path. TOPNLMS can supply components for both the interim replacement and the longer-term migration.

Warranty Assurance

Every SP-122972 / SP-122967 / 122969-01 PC board shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including power-on testing, visual inspection for component damage, and connector integrity checks. Our quality control process is designed to catch latent defects before the board reaches your facility, reducing the risk of a repeat failure during a critical production window.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the fault assessment. Our after-sales response target is 24 hours for initial fault acknowledgment, with replacement dispatch within 3 business days for confirmed warranty cases. All warranty claims are handled directly by our technical team — no third-party intermediaries.

For procurement teams, we can provide a commercial invoice, packing list, and test report upon request to support your incoming inspection and asset management processes. Bulk orders for maintenance spares are accommodated with volume pricing — contact us for a formal quotation.

Stock is maintained in Xiamen and ships via DHL, FedEx, or UPS Express depending on destination. Typical transit times are 3–5 business days to most international destinations. Expedited shipping is available for urgent breakdown situations.
