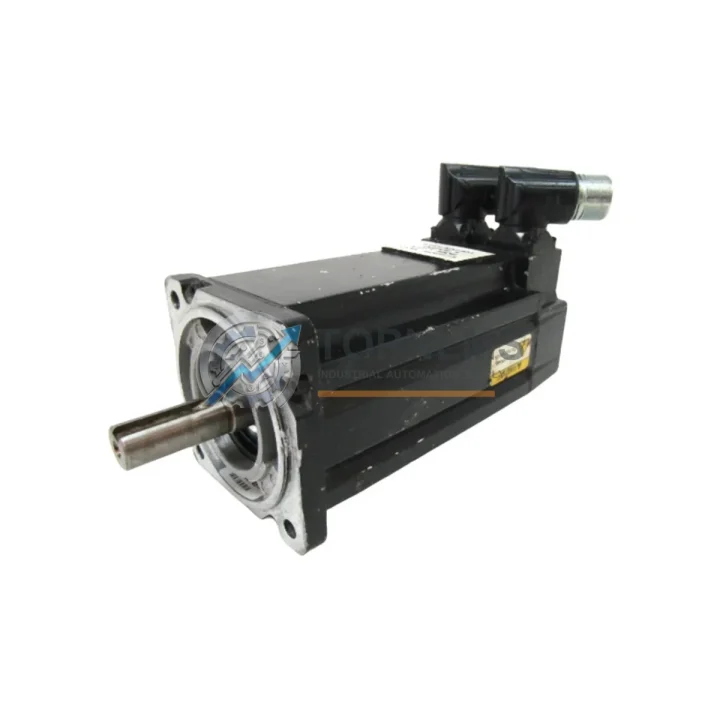

Allen-Bradley MPL-B320P-MJ74AA Replacement for MPL Series

Product Overview

Allen-Bradley MPL-B320P-MJ74AA Replacement for MPL Series: Smooth Migration from Legacy Servo Systems

Upgrading or replacing a failed Allen-Bradley MPL-B320P-MJ74AA brushless servo motor no longer requires extended downtime or costly system redesigns. This MPL Series medium-inertia servo motor is engineered for seamless drop-in compatibility with existing Rockwell Automation motion control architectures, enabling plant engineers and maintenance teams to restore production quickly while preserving their existing wiring, drive configuration, and mechanical mounting.

The MPL-B320P-MJ74AA is a 460V AC brushless servo motor from the Allen-Bradley MPL (Medium Power Low Inertia) Series, designed to operate within Rockwell Automation’s integrated motion platform. It is fully compatible with the Kinetix 6000, Kinetix 6200, Kinetix 5500, and Kinetix 5700 servo drive families via the SERCOS III and EtherNet/IP motion bus protocols. When migrating from an older Kinetix 2000 or Ultra 3000 drive system, the MPL-B320P-MJ74AA can be retained as the motor endpoint while the drive module is upgraded — eliminating the need to re-engineer the mechanical coupling, gearbox interface, or cable routing.

For facilities running legacy 1394 GMC Turbo or 1326AB Series servo motors, the MPL-B320P-MJ74AA provides a direct upgrade path. The motor’s standard 230mm flange and keyed shaft interface are dimensionally compatible with most existing servo mounts, reducing mechanical retrofit time to under two hours in typical installations. The factory-installed feedback device — a high-resolution multi-turn absolute encoder — eliminates the need for homing routines after power restoration, a critical advantage in continuous-process environments where re-referencing causes additional production loss.

Wiring compatibility is a primary concern during any servo motor replacement. The MPL-B320P-MJ74AA uses the standard Bulletin 2090 motor power and feedback cable system. If your existing installation uses 2090-XXNPMF-16Sxx power cables or 2090-XXNFMF-Sxx feedback cables, these can be reused without modification, provided cable condition is verified. For installations where the original cable has been damaged or is undersized, replacement 2090 Series cables are available and can be pre-terminated to match the existing conduit routing.

From a control program perspective, migrating to a replacement MPL-B320P-MJ74AA requires only a motor catalog number update within the Logix Designer (Studio 5000) axis configuration. The motor data file (MDF) for the MPL-B320P-MJ74AA is embedded in the Logix Designer motor database, so no manual parameter entry is required. Axis tuning parameters — including bandwidth, inertia ratio, and velocity loop gains — can be transferred from the original axis configuration or re-autotuned using the Logix Designer integrated motion autotune wizard.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete servo system migration typically involves more than the motor itself. When replacing the MPL-B320P-MJ74AA within a Kinetix-based motion system, the following components are commonly evaluated or replaced in parallel to ensure system integrity and long-term reliability.

The Kinetix 5700 Servo Drive (2198-Dxxx Series) is the recommended drive pairing for new installations using the MPL-B320P-MJ74AA, offering EtherNet/IP-based motion control with integrated safety and simplified commissioning via Studio 5000. For existing Kinetix 6000 installations, the 2094-BCxx-Mxx Kinetix 6000 Axis Module remains fully compatible and does not require replacement when only the motor is being swapped.

Power delivery to the servo system is managed through the 2094-BLxx Kinetix 6000 Power Rail or the 2198-DBXX-F Kinetix 5700 DC Bus Supply, depending on the drive generation in use. Verifying bus voltage stability before motor commissioning is a standard step that prevents nuisance faults during initial axis enable.

Feedback signal integrity is maintained through the 2090-XXNFMF-Sxx Bulletin 2090 Feedback Cable, which should be inspected or replaced during any motor swap to eliminate intermittent encoder faults. Similarly, the 2090-XXNPMF-16Sxx Motor Power Cable should be continuity-tested before reuse.

For multi-axis systems where the MPL-B320P-MJ74AA operates alongside other servo axes, the 1756-M02AE ControlLogix Motion Module or 1756-M08SE SERCOS Motion Module may be present in the control rack. These modules do not require firmware changes when a motor catalog number is updated in the axis configuration.

In applications where the servo motor drives a conveyor, rotary indexer, or packaging machine, a Bulletin 2090 Servo Motor Connector Kit and MP-Series Shaft Seal Kit are recommended as part of the preventive maintenance bundle during motor replacement. Additionally, if the control cabinet houses a 1783-US8T Stratix 2000 Ethernet Switch for EtherNet/IP motion traffic, verifying switch port configuration for motion VLAN isolation is advisable before bringing the replacement axis online.

Retrofit Guidance FAQ

Q: Can I reuse my existing wiring when replacing the MPL-B320P-MJ74AA?
A: Yes, in most cases. If your installation uses Bulletin 2090 power and feedback cables in good condition, they are directly compatible. Inspect for insulation damage, connector pin corrosion, and shield continuity before reuse.

Q: Do I need to re-tune the axis after installing the replacement motor?
A: If the replacement motor is the same catalog number (MPL-B320P-MJ74AA), the existing axis tuning parameters in Studio 5000 remain valid. A brief autotune verification is recommended if the load inertia or mechanical coupling has changed.

Q: Is the MPL-B320P-MJ74AA compatible with SERCOS II drives?
A: The MPL-B320P-MJ74AA is optimized for SERCOS III and EtherNet/IP motion. For SERCOS II systems (e.g., Kinetix 6000 with 2094-SE02F-M00-S0 interface), compatibility depends on the drive firmware version. Contact our technical team to confirm before ordering.

Q: What is the physical installation space requirement?
A: The MPL-B320P-MJ74AA uses a standard IEC 230mm flange. Verify rear clearance for cable bend radius (minimum 10x cable OD) and ensure the motor body does not contact adjacent cabinet components during thermal expansion.

Q: Can this motor replace a 1326AB Series motor directly?
A: A 1326AB to MPL migration requires a drive upgrade (e.g., to Kinetix 5500 or 6000) in addition to the motor swap, as the 1326AB used analog velocity command interfaces incompatible with digital motion bus architectures. The mechanical mounting and shaft dimensions are typically compatible.

Q: How long does commissioning take after installation?
A: For a like-for-like MPL-B320P-MJ74AA replacement with no drive or program changes, commissioning typically takes 30–90 minutes including cable reconnection, axis enable verification, and a short motion test cycle.

Warranty Assurance

Every Allen-Bradley MPL-B320P-MJ74AA unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection covering insulation resistance, encoder signal integrity, shaft runout, and connector seating. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection of the returned item. Our after-sales response target is 24 hours for initial fault assessment and 72 hours for replacement dispatch on confirmed warranty cases.

For time-critical plant shutdowns, we offer priority stock reservation and same-day dispatch for orders confirmed before 14:00 CST. Shipping options include DHL Express, FedEx International Priority, and sea freight consolidation for bulk orders. All units are shipped with original packaging, test records, and a certificate of conformance.
