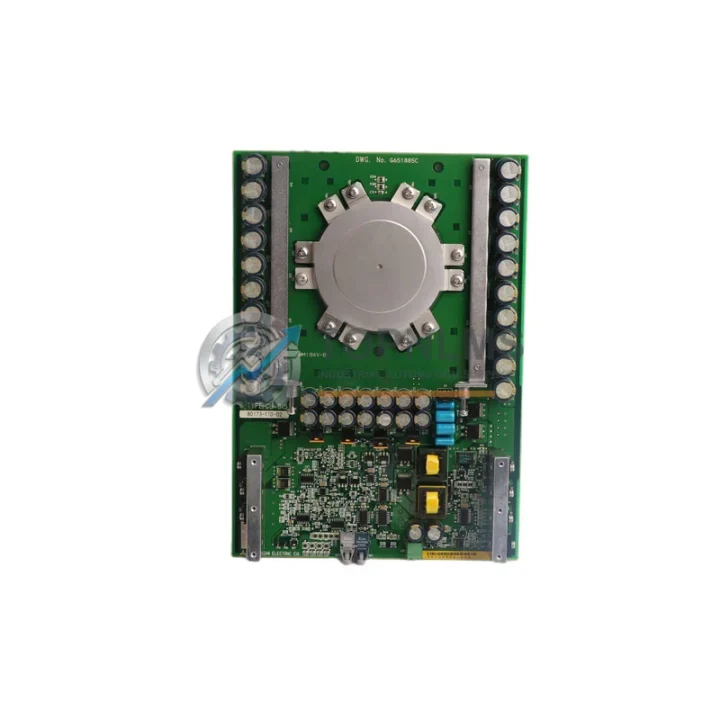

Allen-Bradley GU-D08 80173-109-01 Replacement for PowerFlex MV

Product Overview

Allen-Bradley GU-D08 80173-109-01 Replacement for PowerFlex MV: Seamless Migration & Upgrade Solution

When a PowerFlex Medium Voltage drive goes offline due to a failed or end-of-life SGCT gate driver board, every hour of unplanned downtime translates directly into production loss. The Allen-Bradley GU-D08 80173-109-01 FGC800B-130DS is the OEM-specified Symmetrical Gate Commutated Thyristor (SGCT) gate driver module used across the PowerFlex 7000 and PowerFlex 7000A medium-voltage AC drive platforms. This listing provides a verified, tested replacement and upgrade solution for facilities migrating away from failed, obsolete, or discontinued gate driver assemblies — with full attention to wiring compatibility, communication architecture, physical form factor, and commissioning requirements.

Many sites running legacy PowerFlex MV drives encounter the GU-D08 failure mode during routine operation or scheduled maintenance. The board interfaces directly with the SGCT thyristor devices mounted on the heat sink assembly, providing gate pulse signals, fault feedback, and thermal monitoring. A degraded or failed GU-D08 typically manifests as a drive fault on the HIM (Human Interface Module) or a gate driver fault code within the DriveLogix or SCANport diagnostic environment. Before condemning the entire drive, replacing the GU-D08 80173-109-01 FGC800B-130DS is the recommended first step — and in the majority of cases, it restores full drive functionality without requiring a complete drive replacement or costly field service engagement.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PowerFlex MV gate driver replacement rarely involves a single component in isolation. During the migration process, field engineers typically audit the surrounding drive architecture to prevent repeat failures and ensure the upgraded system meets current reliability standards.

On the power conversion side, the GU-D08 works in conjunction with the FGC800B-130DS SGCT thyristor devices themselves. If the gate driver failure was caused by a shorted or degraded thyristor, the SGCT device should be inspected or replaced concurrently — otherwise the new gate driver board may be damaged on first power-up. The PowerFlex 7000 power cell assembly also incorporates a dedicated gate driver power supply board that feeds isolated DC rails to each GU-D08 in the stack; this supply should be load-tested before reinstalling the replacement module.

For sites performing a broader drive modernization, the PowerFlex 7000 control board (the main CPU/control card) and the associated fiber optic interface modules are common co-replacement items. The fiber optic links carry gate pulse commands from the control board down to each gate driver in the multi-cell topology — degraded fiber cables or transceivers can cause intermittent gate faults that mimic a failed GU-D08. Replacing the fiber optic patch cables between the control rack and the power cell enclosure is a low-cost step that eliminates this variable.

In installations where the PowerFlex 7000 is integrated into a wider Rockwell Automation control architecture, the upstream ControlLogix or CompactLogix PLC communicates drive commands via a ControlNet or EtherNet/IP network adapter card installed in the drive. During a gate driver replacement outage, it is practical to inspect the network adapter, verify the drive’s I/O chassis backplane connections, and confirm that the DriveLogix embedded controller (if fitted) has current firmware. This avoids a second outage shortly after the gate driver repair is complete.

For facilities upgrading from older PowerFlex 700 or PowerFlex 400 low-voltage drives to the PowerFlex 7000 MV platform as part of a broader energy efficiency project, the control cabinet layout will also require attention to the MV isolation transformer, the input line reactor, and the bypass contactor assembly. These upstream components must be rated for the MV drive’s input current and switching characteristics — a detail that is often overlooked when the focus is on the drive electronics themselves.

Finally, for commissioning and diagnostics, a DriveExplorer or Studio 5000 Logix Designer connection via a 1203-USB or 1203-SSS SCANport communication adapter allows full parameter verification after the GU-D08 replacement. Confirming gate delay parameters, fault history reset, and thermal model calibration through the software interface is the recommended final step before returning the drive to service.

Retrofit Guidance FAQ

Q: Do I need to re-program the drive after replacing the GU-D08?
A: No. The GU-D08 80173-109-01 is a hardware gate driver board with no user-programmable firmware. Drive parameters stored in the control board are unaffected by a gate driver swap. Simply replace the board, reconnect the harness, and power up normally.

Q: Is the wiring harness from my old GU-D08 reusable?
A: Yes. The replacement unit uses an identical connector pinout and PCB footprint. The existing OEM harness plugs directly into the replacement board without modification.

Q: Will this replacement work with both PowerFlex 7000 and PowerFlex 7000A?
A: Yes. The GU-D08 80173-109-01 FGC800B-130DS is used across both the air-cooled (7000A) and liquid-cooled (7000) variants of the PowerFlex MV platform where the FGC800B-130DS SGCT is specified.

Q: What communication protocol does the gate driver use?
A: The GU-D08 communicates via Allen-Bradley’s internal proprietary gate drive bus — not an open fieldbus protocol. No EtherNet/IP, DeviceNet, or ControlNet configuration is required for the gate driver itself.

Q: How do I confirm the fault is in the gate driver and not the SGCT thyristor?
A: Use the drive’s built-in diagnostics to isolate the faulting cell. A gate driver fault code pointing to a specific phase/cell, combined with a healthy thyristor forward voltage drop test, confirms the GU-D08 as the failed component.

Q: What is the physical installation space requirement?
A: The replacement board matches the OEM PCB dimensions exactly. No cabinet modification, additional DIN rail, or spacer hardware is required.

Warranty Assurance

Every GU-D08 80173-109-01 FGC800B-130DS unit shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to dispatch, each unit undergoes a pre-shipment functional inspection to verify board integrity, connector condition, and component-level quality. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with a target response time of one business day. Customers are not required to return the defective unit before a replacement is dispatched in confirmed warranty cases, minimizing additional downtime exposure. All warranty claims are handled directly by our technical team — not a third-party service center — ensuring consistent, informed support from engineers familiar with PowerFlex MV drive architecture.

For procurement teams, TOPNLMS maintains stock of the GU-D08 80173-109-01 and related PowerFlex MV components to support both emergency replacement orders and planned maintenance purchasing. Lead times, quantity pricing, and export documentation (including commercial invoice, packing list, and certificate of origin) are available on request.

Contact our team for stock confirmation, technical pre-sales questions, or to arrange expedited shipping for urgent plant outage situations.
