Allen-Bradley 80190-780-01-R Replacement for PowerFlex Drive: Seamless Transition & Legacy System Compatibility

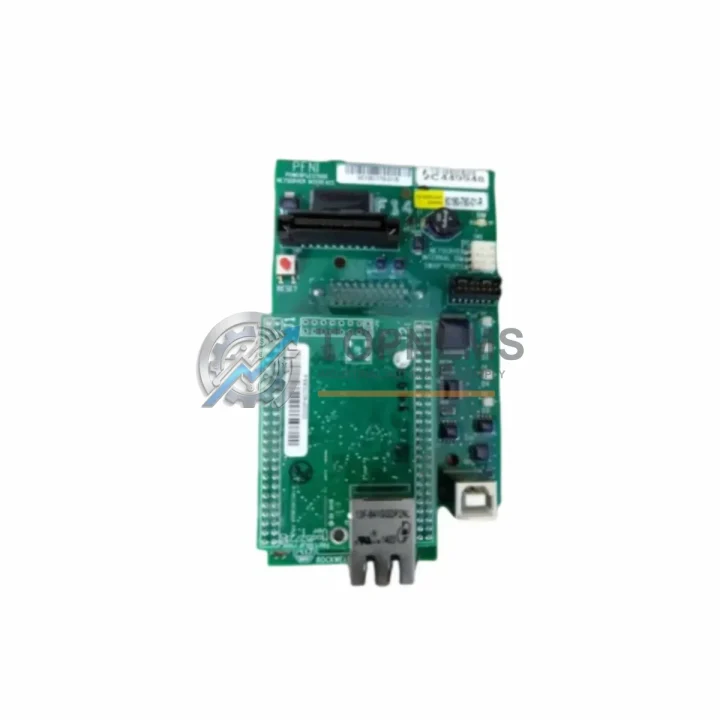

The Allen-Bradley 80190-780-01-R is a drive control board designed for the PowerFlex family of AC variable frequency drives. As Rockwell Automation continues to evolve its drive platform, many facilities running legacy PowerFlex 70, PowerFlex 700, or PowerFlex 40 series drives are encountering end-of-life notices, discontinued spare parts, and extended lead times on OEM replacements. The 80190-780-01-R serves as a direct-fit control board replacement that restores full drive functionality without requiring a complete drive chassis swap, making it one of the most cost-effective retrofit options available for plant engineers managing aging automation infrastructure.

Whether your facility is operating a continuous process line, a conveyor system, a pump station, or a compressor drive application, an unexpected failure of the drive control board can result in unplanned downtime measured in hours or days. Sourcing the 80190-780-01-R from TOPNLMS means you receive a tested, verified board with a 12-month warranty, shipped from in-stock inventory in Xiamen, China, with global logistics support to minimize your mean time to repair (MTTR).

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PowerFlex drive board replacement rarely involves a single component in isolation. In practice, plant engineers undertaking a control board swap on a PowerFlex 700 or PowerFlex 70 drive will often simultaneously inspect or replace several adjacent components to ensure system reliability after the repair. The 80190-780-01-R is commonly sourced alongside the 20-HIM-A6 Human Interface Module, which stores drive parameters and allows parameter upload/download during commissioning — critical when the original HIM has been lost or damaged. Engineers also frequently replace the 20-COMM-E2P EtherNet/IP communication adapter at the same time, since the communication module shares the same DPI port and is subject to similar wear cycles as the control board itself.

For facilities running DeviceNet-based control architectures, the 20-COMM-D DeviceNet adapter is a common companion part, ensuring that the restored drive can re-join the existing network without protocol reconfiguration. In applications where the drive feeds a motor through a long cable run, a dV/dt output filter or a line reactor may also be inspected as part of the retrofit scope. On the power input side, engineers often verify the condition of the 1321-3R line reactor and the associated input fusing before returning the drive to service.

Where the PowerFlex drive is mounted in a control cabinet alongside a ControlLogix or CompactLogix PLC, the 1756-L73 ControlLogix controller or a 1769-L33ER CompactLogix controller typically manages the drive via an EtherNet/IP network. Restoring the drive control board allows the PLC program to resume normal drive command and feedback without any ladder logic modification, provided the drive parameters are correctly restored. In multi-drive panels, the 1606-XLP power supply module that feeds the control backplane is also commonly checked during the same maintenance window. For legacy installations using a 1336 PLUS II or 1305 drive alongside a PowerFlex unit, the 80190-780-01-R replacement project often becomes the trigger for a broader panel modernization review, where older drives are progressively upgraded to the PowerFlex platform to standardize spare parts inventory and reduce the number of unique drive families maintained on site.

Signal isolation between the drive and field instrumentation is another consideration during retrofit. Where 4–20 mA analog reference signals are used for speed control, a signal isolator or a 1492-AIFM analog input field module may be part of the commissioning checklist to verify signal integrity after the board swap. Terminal block wiring should be documented and photographed before disassembly to ensure accurate reconnection.

Retrofit Guidance FAQ

Q: Do I need to rewire the drive after replacing the 80190-780-01-R control board?
A: No. The 80190-780-01-R is a direct board-level replacement with an identical connector footprint. All existing wiring to the drive chassis — including power terminals, motor output terminals, and control wiring — remains unchanged. Only the internal control board is swapped.

Q: Will my existing drive parameters be preserved?
A: Drive parameters are stored on the HIM module (e.g., 20-HIM-A6) or in a software backup created with DriveExplorer or Studio 5000 Logix Designer. If you have a parameter backup, parameters can be fully restored after the board replacement. If no backup exists, parameters will need to be re-entered manually based on your application data sheet.

Q: Is the 80190-780-01-R compatible with EtherNet/IP and DeviceNet communication adapters?
A: Yes. The replacement board maintains full compatibility with the DPI (Drive Peripheral Interface) port, which supports all standard PowerFlex communication adapters including the 20-COMM-E2P (EtherNet/IP), 20-COMM-D (DeviceNet), and 20-COMM-C (ControlNet). No changes to the PLC program or network configuration are required.

Q: How much physical space does the board replacement require?
A: The 80190-780-01-R matches the original board dimensions exactly. No modifications to the drive chassis, mounting hardware, or control cabinet layout are needed. The replacement is performed with the drive de-energized and locked out, following standard LOTO procedures.

Q: Can I use this board to replace a drive that was previously running on a 1336 PLUS II or older Allen-Bradley drive platform?
A: The 80190-780-01-R is specific to the PowerFlex drive chassis. If you are migrating from a 1336 PLUS II or 1305 series drive, a full drive chassis replacement to a PowerFlex 70 or PowerFlex 700 is required first, after which the 80190-780-01-R can serve as a spare or replacement control board for the new chassis.

Q: What commissioning steps are required after installation?
A: After installing the replacement board, restore drive parameters from backup or re-enter manually. Verify motor nameplate data (voltage, current, frequency, RPM) in the drive parameter set. Perform a no-load test run before reconnecting the mechanical load. Confirm communication adapter status via the PLC or HMI. Log the replacement in your maintenance management system (CMMS) for warranty tracking.

Warranty Assurance

Every 80190-780-01-R shipped by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each board undergoes a functional verification process to confirm power-up integrity and communication interface continuity. If a board is found to be defective on arrival (DOA) or fails within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or issue a refund, subject to return authorization and inspection.

Our after-sales response target is 24 hours for warranty claims submitted by email. Replacement units for confirmed warranty cases are prioritized for next-available shipment from our Xiamen warehouse. We support DHL Express, FedEx International Priority, and UPS Worldwide Expedited for urgent shipments, with tracking provided at time of dispatch.

For procurement teams requiring documentation, we can provide a commercial invoice, packing list, certificate of conformance, and test report upon request. All export shipments comply with applicable trade regulations. Payment terms and volume pricing are available for MRO procurement contracts and OEM integrators.
