Allen-Bradley 80190-480-01-R Original Industrial PowerFlex 7000: System Stability and Industrial Spare Maintenance Value

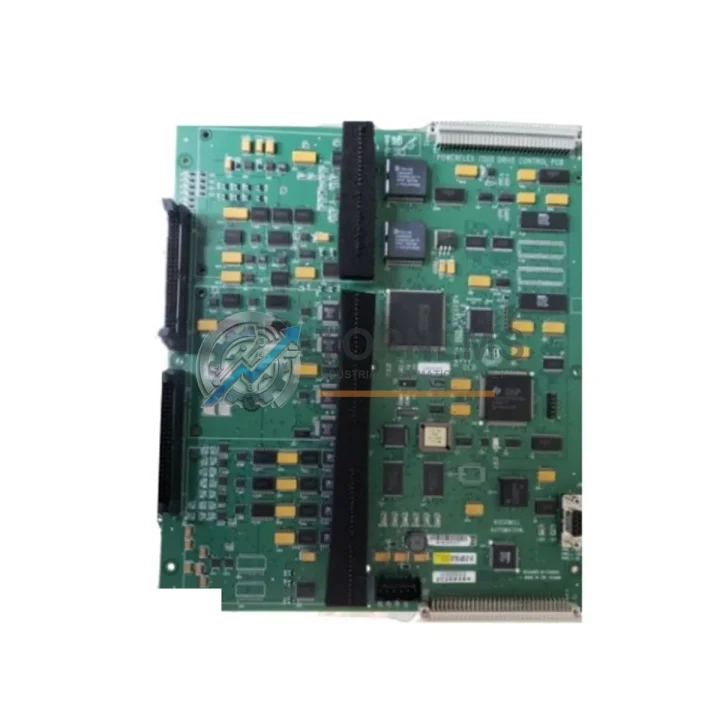

The Allen-Bradley 80190-480-01-R (cross-reference: 80190-478-51) is an original drive control board engineered specifically for the PowerFlex 7000 Medium Voltage AC Drive series. In industrial facilities where medium-voltage motor control is mission-critical — from large pump stations and compressor drives to mill and kiln applications — this control board serves as the central intelligence of the drive system. Its failure or degradation directly translates to unplanned downtime, production loss, and costly emergency procurement. Maintaining a verified original spare in your inventory is one of the most cost-effective decisions a maintenance team can make.

The PowerFlex 7000 platform is widely deployed across heavy industries including oil and gas, mining, water treatment, cement, and steel manufacturing. Many of these installations have been in continuous operation for over a decade, making original spare parts increasingly difficult to source through standard distribution channels. The 80190-480-01-R addresses this supply gap directly — providing a tested, original-specification replacement that restores full drive functionality without requiring firmware reconfiguration or system re-commissioning.

Critical Technical Specs Table

Preventive Maintenance Strategy

A scheduled maintenance inspection of a PowerFlex 7000 drive cabinet should never be limited to the control board alone. The 80190-480-01-R operates within a tightly integrated electrical and control architecture, and the reliability of the entire drive system depends on the condition of surrounding components. During any planned shutdown or annual inspection, maintenance engineers should simultaneously evaluate the PowerFlex 7000 gate driver boards and fiber optic interface modules, which communicate switching signals between the control board and the IGCT or SCR power stack. Degraded fiber optic cables or connectors are a common root cause of nuisance faults that are often misdiagnosed as control board failures.

The 24VDC control power supply module feeding the drive’s logic circuits should be load-tested during the same inspection window. An aging or undersized control power supply can cause intermittent resets and false fault codes that mimic control board faults. Similarly, the I/O interface modules handling analog speed references and digital run/stop commands should be verified for signal integrity — corroded terminal connections or drifting analog inputs can destabilize closed-loop speed control and trigger protective shutdowns.

For drives installed in environments with high ambient dust or humidity, the cooling fan assemblies and air filter assemblies within the drive enclosure require inspection at every maintenance interval. Restricted airflow is a leading cause of thermal stress on control electronics, accelerating the aging of capacitors and solder joints on boards like the 80190-480-01-R. Proactive replacement of cooling fans before they reach end-of-life is far less costly than an emergency board replacement during production.

The DC bus capacitor bank and associated pre-charge resistor modules are additional components that should be evaluated during any medium-voltage drive overhaul. Capacitor degradation is gradual and often invisible until catastrophic failure occurs. Pairing a control board replacement with a capacitor health check — and stocking a spare pre-charge contactor — significantly reduces the risk of repeat downtime within the same maintenance cycle.

For facilities running multiple PowerFlex 7000 drives, a consolidated spare parts strategy should also include HMI operator interface terminals (such as the PanelView series used in conjunction with PowerFlex 7000 systems) and DeviceNet or EtherNet/IP communication adapter modules. These components are frequently overlooked in spare parts planning yet are critical to restoring full supervisory control after a drive replacement event. Maintaining one spare communication adapter per drive type in your storeroom can reduce post-repair commissioning time from hours to minutes.

Strategic Replacement Solutions

The 80190-480-01-R is a direct original-specification replacement for aging or failed control boards in PowerFlex 7000 drives. Unlike third-party remanufactured alternatives, this original board retains full compatibility with the drive’s embedded firmware, parameter memory structure, and DriveLogix programming environment. This means that in most replacement scenarios, the existing drive parameters can be restored from a saved configuration file without requiring a full recommissioning procedure — a critical advantage when minimizing production downtime is the primary objective.

For facilities managing aging PowerFlex 7000 installations that are no longer covered by OEM service contracts, stocking the 80190-480-01-R as a strategic spare eliminates dependency on spot-market procurement during emergency shutdowns. Emergency sourcing of obsolete or low-volume drive components typically carries a 3–10× price premium and lead times of days to weeks. A pre-positioned spare board, verified and tested before the failure event, converts an unplanned emergency into a planned 2–4 hour maintenance activity.

The board is also suitable for system life extension programs where the goal is to maintain existing PowerFlex 7000 infrastructure rather than undertake a full drive replacement capital project. In many cases, replacing the control board — the most failure-prone electronic assembly in the drive — restores the system to like-new operational reliability at a fraction of the cost of a new drive. This approach is particularly valuable in applications where the drive is mechanically integrated into the process (e.g., gearbox-coupled mill drives) and physical replacement would require extended civil or mechanical work.

Support FAQ

Q1: Is the 80190-480-01-R compatible with all PowerFlex 7000 drive variants?
The 80190-480-01-R is designed for the PowerFlex 7000 medium voltage drive platform. Compatibility depends on the specific drive frame size, voltage rating, and firmware revision. We recommend confirming your drive’s nameplate data and existing board revision before ordering. Our technical team can assist with compatibility verification prior to purchase.

Q2: What testing is performed before shipment?
Every 80190-480-01-R unit undergoes a functional verification test prior to dispatch. This includes power-on self-test validation and visual inspection for physical damage, corrosion, or component anomalies. A test report is available upon request. All units are shipped in anti-static packaging with appropriate cushioning for international transit.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside specified environmental parameters. Warranty claims are processed with a replacement unit dispatched after fault verification.

Q4: How should I manage spare parts inventory for aging PowerFlex 7000 systems?
For facilities with 3 or more PowerFlex 7000 drives, we recommend maintaining at minimum one 80190-480-01-R control board as a strategic spare. For critical process applications (24/7 operations, single-drive bottlenecks), a dedicated hot spare per drive is advisable. Pairing the control board spare with a gate driver board and a control power supply module provides comprehensive coverage for the most common drive failure modes and maximizes the value of each planned maintenance window.
