Allen-Bradley 80190-380-02-R Replacement for PLC-5 Series

Product Overview

Allen-Bradley 80190-380-02-R Replacement for PLC-5 Series: Smooth Migration & Legacy System Compatibility

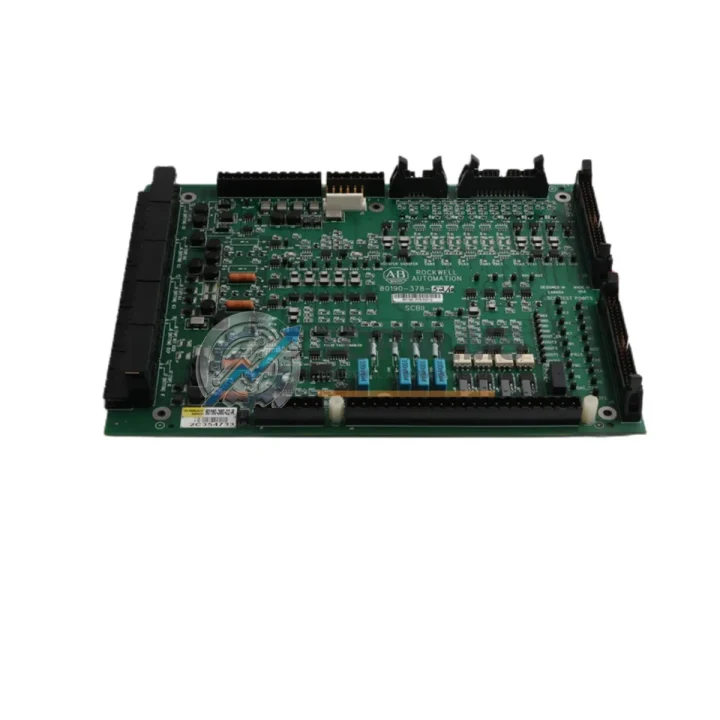

The Allen-Bradley 80190-380-02-R is a signal conditioning board originally designed for use within the Rockwell Automation PLC-5 control platform — one of the most widely deployed programmable logic controller families in heavy industry, oil & gas, automotive manufacturing, and process control. As this component has reached end-of-life status, facilities running legacy PLC-5 racks face increasing pressure to source reliable replacements before unplanned downtime forces costly emergency shutdowns.

TOPNLMS supplies the 80190-380-02-R as a tested, verified replacement unit, fully compatible with the original PLC-5 backplane architecture. Each unit undergoes functional verification prior to shipment, ensuring that signal conditioning performance — including analog input scaling, noise filtering, and channel isolation — meets the original Rockwell Automation specification. Whether you are maintaining an existing PLC-5 system or executing a phased migration toward a ControlLogix or CompactLogix platform, this board provides the bridge you need to keep operations running without interruption.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the 80190-380-02-R is rarely an isolated task. In most PLC-5 and SLC 500 installations, the signal conditioning board works in close coordination with other rack-mounted components. During a retrofit or emergency replacement, engineers frequently need to address the broader system context to ensure a stable, long-term outcome.

In PLC-5 rack configurations, the 1771-P4S or 1771-P7 power supply module is the primary source of regulated 5 VDC and 24 VDC for all installed boards. If the power supply has not been serviced recently, it is advisable to inspect or replace it alongside the signal conditioning board to eliminate power-related signal instability. Similarly, the 1771-A4B or 1771-A3B I/O chassis provides the physical backplane into which the 80190-380-02-R is seated — verifying chassis slot integrity and backplane connector condition is a standard step before inserting any replacement module.

For facilities that rely on Data Highway Plus (DH+) communication between the PLC-5 processor and SCADA or HMI systems, the 1784-KTX or 1784-PCMK communication interface card may also require attention during a migration project. If the site is transitioning toward EtherNet/IP, the 1761-NET-ENI serial-to-Ethernet adapter can serve as an interim bridge, allowing legacy SLC 500 or PLC-5 processors to communicate with modern network infrastructure without a full controller replacement.

On the I/O side, the 1771-IFE analog input module and 1771-OFE analog output module are commonly found in the same rack as signal conditioning boards. If channel counts are being expanded as part of the upgrade, these modules may need to be added or reconfigured. For digital I/O, the 1771-IBD and 1771-OBD discrete I/O modules are standard companions in PLC-5 systems and should be verified for firmware and wiring compatibility during any rack-level service event.

Where the migration scope extends to the operator interface layer, the PanelView 600 or PanelView Plus 700 HMI terminals connected via DH+ or RS-232 may require communication parameter updates to align with any changes made at the controller level. Ensuring that the HMI tag database reflects the correct data file addresses after module replacement is a critical commissioning step that is often overlooked in emergency replacement scenarios.

Retrofit Guidance FAQ

Q: Do I need to modify field wiring when installing this replacement board?
No. The 80190-380-02-R replacement uses the same terminal block layout as the original. Existing field wiring can be reconnected directly without modification, provided the wiring is in good condition and correctly labeled.

Q: Will my existing RSLogix 5 program need to be modified?
In most cases, no program changes are required for a direct drop-in replacement. The module occupies the same rack slot and data file addresses remain unchanged. However, if the replacement is part of a broader migration to ControlLogix using RSLogix 5000 or Studio 5000, a program conversion will be necessary.

Q: Is this board compatible with DH+ and DH-485 communication networks?
Yes. The board operates within the standard PLC-5 rack environment, which supports DH+ and DH-485 network topologies. No changes to the communication network configuration are required for a like-for-like replacement.

Q: What if the physical installation space in the control cabinet is constrained?
The replacement unit matches the original single-slot PLC-5 module form factor exactly. No additional cabinet space, DIN rail modification, or mounting hardware is required.

Q: How do I verify the replacement board is functioning correctly after installation?
After seating the module in the rack and restoring power, use RSLogix 5 to go online with the processor and verify that the module status indicator shows a healthy state. Check analog channel values against known reference signals to confirm signal conditioning accuracy before returning the system to production.

Q: Can this board be used as a spare for preventive maintenance inventory?
Yes. Given the discontinued status of the original part, maintaining one or two spare units in your MRO inventory is strongly recommended to avoid extended lead times during future failures.

Warranty Assurance

Every 80190-380-02-R replacement unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each board undergoes a multi-point functional inspection that includes power-on testing, backplane interface verification, and signal channel validation. Units that do not meet performance thresholds are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our technical team with the order reference and a description of the fault, and a replacement unit will be dispatched promptly. We do not require the return of the defective unit before shipping the replacement in most cases, minimizing the impact on your production schedule.

Our global logistics network supports express shipping to major industrial regions including Europe, Southeast Asia, the Middle East, and the Americas. Standard lead time from our Xiamen warehouse is 3–7 business days for international orders, with expedited options available for urgent requirements.

For procurement teams, we can provide a formal quotation, packing list, and certificate of conformance upon request. Volume pricing is available for orders of 3 or more units.
