Allen-Bradley 5069-L330ER Original Spare CompactLogix 5380

Product Overview

Allen-Bradley 5069-L330ER Original Spare CompactLogix 5380 — System Stability & Industrial Spare Value

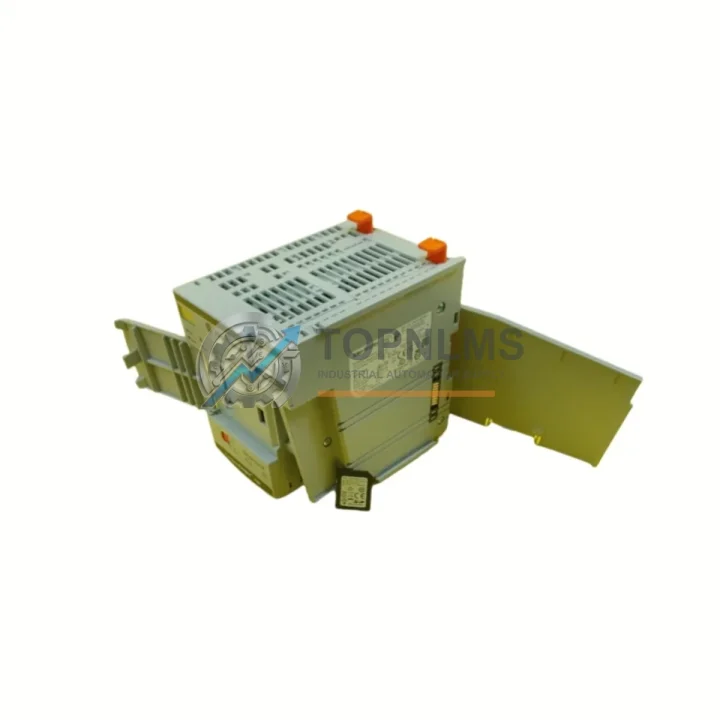

The Allen-Bradley 5069-L330ER is a high-performance CompactLogix 5380 Programmable Automation Controller (PAC) designed for demanding industrial environments where system uptime and control reliability are non-negotiable. With 3MB of user memory and dual-port EtherNet/IP connectivity, this controller serves as the processing backbone of modern machine control architectures across automotive, food & beverage, material handling, and discrete manufacturing sectors. Maintaining a verified original spare of the 5069-L330ER in your facility’s critical spare inventory is one of the most effective strategies for reducing unplanned downtime and protecting production continuity.

When a CompactLogix 5380 controller fails in a production environment, every minute of downtime translates directly into lost output and recovery costs. The 5069-L330ER is a direct replacement for aging or failed units within the 5069 Compact I/O system, and its compatibility with existing Studio 5000 Logix Designer projects means engineers can restore operations without reprogramming — simply swap the module, restore the project file, and resume production. This plug-and-play replacement capability is a critical advantage in time-sensitive maintenance scenarios.

Critical Technical Specs Table

Preventive Maintenance Strategy

A robust preventive maintenance program for a CompactLogix 5380 system extends well beyond the controller itself. During scheduled shutdowns or annual cabinet inspections, maintenance teams should treat the 5069-L330ER replacement as part of a broader system health review. Begin by inspecting the 5069-PA4 or 5069-PB4 power supply module — power instability is one of the leading causes of controller faults and premature failure. A degraded power supply can corrupt controller memory or cause intermittent resets, so stocking a spare power supply alongside the controller is strongly recommended.

Next, audit the 5069-IB16 digital input modules and 5069-OB16 digital output modules installed in the local I/O bank. These modules handle the field-level signals that the 5069-L330ER processes, and worn or contaminated I/O modules can generate false diagnostics that are often misattributed to controller failure. Replacing suspect I/O modules during the same maintenance window as a controller swap eliminates ambiguity and restores full system confidence.

Communication integrity is equally critical. The 5069-L330ER’s embedded dual-port EtherNet/IP switch relies on quality network infrastructure. Inspect and replace aging Ethernet patch cables (Cat5e or Cat6 shielded) within the control cabinet, and verify the integrity of any 1783-US5T or 1783-BMS10CGN managed switches in the network topology. A failing network switch can cause intermittent communication faults that are difficult to diagnose without replacing the controller first.

For systems that include analog process control, verify the calibration and condition of 5069-IF8 analog input modules and 5069-OF4 analog output modules. Signal drift in these modules can affect PID loop performance and trigger nuisance alarms. During the same inspection cycle, check the 5069-ARM axis registration module if motion control is part of the application, as motion faults can cascade into controller-level errors.

Finally, inspect the 1492-CABLE series wiring harnesses and terminal block connections throughout the cabinet. Loose or corroded terminal connections are a common root cause of intermittent I/O faults. Pairing a controller replacement with a full terminal inspection ensures that the new 5069-L330ER operates in a clean, verified electrical environment from day one.

Strategic Replacement Solutions

The 5069-L330ER is the recommended upgrade path for facilities currently operating older CompactLogix platforms such as the 1769-L33ER or 1769-L36ERM. The 5380 series offers significantly improved processing speed, larger memory capacity, and enhanced EtherNet/IP throughput compared to its predecessors, while maintaining compatibility with existing Studio 5000 project architectures. This means maintenance engineers can migrate aging control systems to the 5069-L330ER without redesigning the control logic — a critical advantage for facilities that cannot afford extended commissioning windows.

For sites running multiple CompactLogix 5380 controllers across production lines, establishing a shared spare pool strategy is highly effective. A single 5069-L330ER spare can serve as a hot standby for multiple identical controllers across the facility, provided that project files are version-controlled and stored on a centralized backup server. This approach minimizes spare inventory investment while maximizing coverage across the plant floor.

All units supplied by TOPNLMS are sourced from verified original channels, fully tested prior to shipment, and covered by a 12-month warranty. Each controller is inspected for firmware integrity, communication port functionality, and physical condition before dispatch, ensuring that your replacement unit is ready for immediate installation upon arrival.

Support FAQ

Q1: Is the 5069-L330ER compatible with my existing Studio 5000 project files?
Yes. The 5069-L330ER is fully compatible with Studio 5000 Logix Designer v31 and later. Existing project files created for the 5069-L330ER can be restored directly to the replacement unit without modification, enabling rapid return to production.

Q2: What is the recommended spare inventory strategy for CompactLogix 5380 controllers?
For facilities with three or more 5069-L330ER units in operation, maintaining one verified spare on-site is recommended. For single-controller installations, a regional spare held by your distributor or a pre-arranged rapid-delivery agreement with TOPNLMS provides equivalent protection with lower carrying cost.

Q3: How is the unit tested before shipment?
Every 5069-L330ER unit is powered on, communication ports are verified, and firmware version is confirmed prior to packaging. Units that do not pass functional testing are not shipped. A test report is available upon request.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed within 5 business days of receipt of the returned unit.
