Allen-Bradley 5069-L306ERM Ruggedized PLC Module for Harsh Environments

Product Overview

Allen-Bradley 5069-L306ERM Ruggedized PLC Module for Harsh Environments: Industrial Resilience in the Most Demanding Conditions

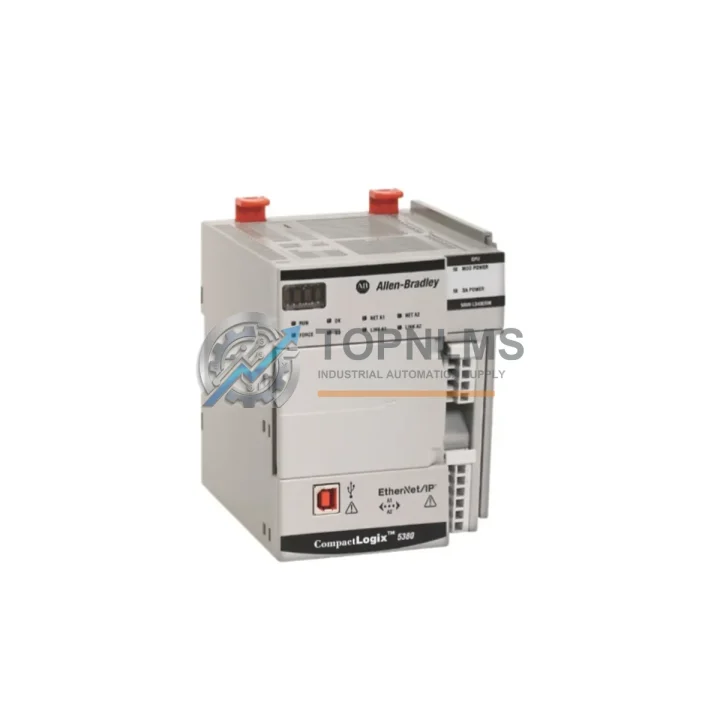

The Allen-Bradley 5069-L306ERM is a high-performance CompactLogix 5380 series programmable logic controller engineered to deliver uncompromising reliability across the most challenging industrial environments. With 600KB of user memory and native EtherNet/IP dual-port communication, this controller is purpose-built for continuous operation in facilities where downtime is not an option — from petrochemical refineries and offshore platforms to underground mining operations and high-voltage power substations.

Designed under Rockwell Automation’s rigorous engineering standards, the 5069-L306ERM operates reliably in environments characterized by extreme temperature fluctuations, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference (EMI). Its compact 5069 Compact I/O architecture allows seamless integration into space-constrained control cabinets without sacrificing processing power or I/O density, making it a preferred choice for system integrators and plant engineers who demand both performance and physical durability.

Rugged Specifications Table

Comprehensive Protection Solutions

The 5069-L306ERM does not operate in isolation — it anchors a broader ecosystem of ruggedized automation components that together ensure system-wide resilience. In a typical heavy-industry control cabinet, this controller works in concert with 5069-IB16 digital input modules and 5069-OB16 digital output modules to handle high-density field signal processing, while 5069-IF8 analog input modules provide precision measurement from pressure transmitters, thermocouples, and flow sensors in corrosive or high-temperature process lines.

For distributed I/O architectures across large plant floors, the 5069-L306ERM’s dual EtherNet/IP ports enable direct ring-topology connectivity to 1734 POINT I/O remote adapter nodes, eliminating single points of failure in the network backbone. When integrated with PowerFlex 755 variable frequency drives over EtherNet/IP, the controller delivers closed-loop speed and torque regulation for high-inertia motors in cement mills, steel rolling lines, and water treatment pump stations — environments where motor faults can cascade into full-line shutdowns.

Safety-critical applications benefit from pairing the 5069-L306ERM with GuardLogix 5380 safety controllers or dedicated 1791DS safety I/O modules, enabling SIL 2 / PLd safety functions such as emergency stop, safety gate monitoring, and two-hand control — all within the same Studio 5000 programming environment. For power distribution integrity, 1606-XLP industrial power supplies provide stable 24VDC rail voltage even under wide AC input fluctuations common in mining substations and offshore generator systems.

Communication reliability in EMI-dense environments is further reinforced through 1783-BMS series managed Ethernet switches, which support IGMP snooping, QoS prioritization, and port-level diagnostics — ensuring that CIP motion and safety traffic reaches the controller without latency spikes. Where legacy fieldbus integration is required, 1756-DNB DeviceNet bridge modules or 1756-ENBT EtherNet/IP bridge cards extend the controller’s reach into older DCS and SCADA architectures without requiring full system replacement.

Application in Critical Infrastructure

In oil and gas upstream operations, the 5069-L306ERM is deployed in wellhead control panels and pipeline SCADA RTU enclosures, where it manages valve actuator sequencing, pressure safety shutdowns, and flow metering data aggregation. Its ability to sustain operation across wide temperature ranges makes it suitable for both arctic pipeline monitoring stations and desert gas compression facilities.

In underground coal and metal mining, the controller governs conveyor belt interlocking systems, ventilation fan control, and dewatering pump automation. Its vibration tolerance and sealed-enclosure compatibility allow installation in mobile mining equipment and tunnel-mounted junction boxes subject to continuous mechanical stress.

Within electric power generation and transmission facilities — including thermal power plants, hydroelectric stations, and grid-scale battery energy storage systems — the 5069-L306ERM handles turbine governor control, transformer protection relay coordination, and auxiliary system sequencing. Its EtherNet/IP connectivity integrates directly with SCADA historian platforms for real-time performance monitoring and predictive maintenance analytics.

In water and wastewater treatment plants, the controller manages multi-stage filtration, chemical dosing pump control, and UV disinfection system sequencing in environments with high ambient humidity and chemical vapor exposure. Its non-condensing humidity rating and corrosion-resistant housing make it a reliable long-term installation in wet process areas.

For metallurgical and steel production facilities, the 5069-L306ERM withstands the radiated heat, electromagnetic noise from arc furnaces, and airborne metallic particulates that routinely degrade lesser controllers. It is commonly specified for continuous casting line control, rolling mill automation, and ladle transfer car positioning systems where microsecond-level response times and fault-tolerant communication are mandatory.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All 5069-L306ERM units shipped by TOPNLMS carry a 12-month warranty from the date of shipment. Coverage includes manufacturing defects, functional failures under normal operating conditions, and firmware-related malfunctions. In the event of a warranty claim, we provide RMA processing, technical diagnosis, and replacement or repair at no additional cost. Warranty documentation is issued with every order.

Q2: How is each unit tested before shipment?
Every 5069-L306ERM undergoes a multi-stage pre-shipment inspection protocol: visual inspection for physical integrity, power-on functional verification, communication port handshake testing via EtherNet/IP, and firmware version confirmation against Rockwell Automation’s published release matrix. Units that do not pass all test stages are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 5069-L306ERM compatible with my existing CompactLogix or ControlLogix system?
The 5069-L306ERM is fully compatible with the 5069 Compact I/O backplane ecosystem and is programmed using Studio 5000 Logix Designer v30 and above. It supports standard CIP (Common Industrial Protocol) and EtherNet/IP, enabling integration with existing ControlLogix 5580, CompactLogix 5370, and GuardLogix safety controller architectures. For legacy system integration involving DeviceNet or ControlNet, bridge modules are available. Please contact our technical team with your existing system topology for a compatibility assessment.

Q4: Can TOPNLMS guarantee long-term supply and replacement support for this model?
Yes. TOPNLMS maintains dedicated stock of the 5069-L306ERM and its associated 5069 series I/O modules to support long-term MRO (Maintenance, Repair & Operations) procurement programs. For facilities operating continuous production lines where unplanned downtime carries significant financial risk, we offer reserved stock agreements and priority fulfillment SLAs. Our team can also source end-of-life or discontinued Rockwell Automation components to support legacy system maintenance without requiring full controller platform upgrades.
