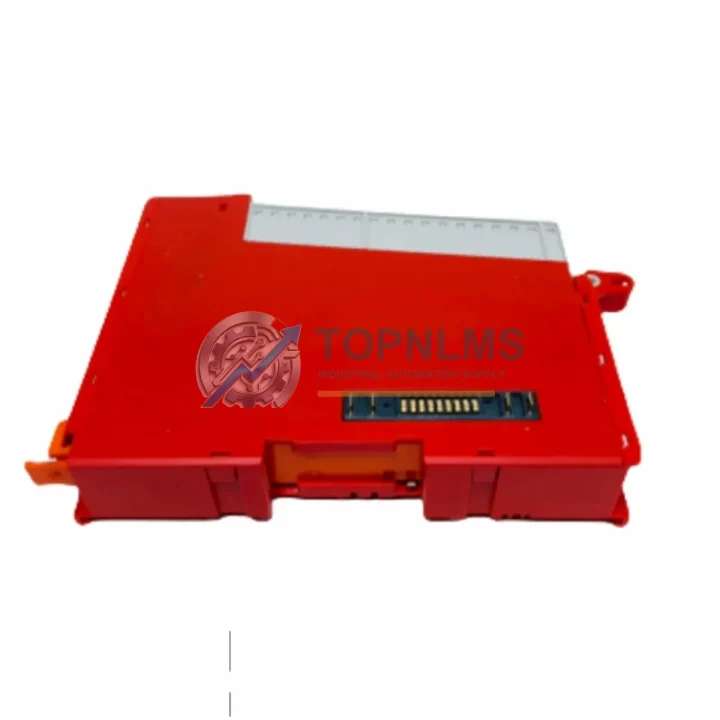

Allen-Bradley 5069-IB8S Ruggedized Safety Input Module

Product Overview

Allen-Bradley 5069-IB8S Ruggedized Safety Input Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 5069-IB8S is an 8-point, 24V DC sourcing safety input module with integrated exciter, engineered for the CompactLogix 5069 platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature process plants, high-humidity coastal facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing lines — this module delivers the signal integrity and safety performance that critical infrastructure demands.

Built to IEC 61131-2 input standards and rated for Safety Integrity Level 2 (SIL 2) applications, the 5069-IB8S integrates seamlessly into safety-rated control architectures where a single point of failure is not an option. Its integrated exciter eliminates the need for external excitation wiring, reducing panel complexity and potential failure points inside the control cabinet.

Rugged Specifications Table

Comprehensive Protection Solutions

The 5069-IB8S does not operate in isolation — it is one node in a tightly integrated safety and control architecture. In a typical CompactLogix 5069 safety panel, it works alongside the 5069-L306ERS3 CompactLogix 5380 Safety Controller, which processes the safety-rated input signals and executes the safety program logic. Output-side safety actions are handled by modules such as the 5069-OB8S Safety Output Module, which drives safety relays, solenoid valves, and motor contactors in response to the controller’s decisions.

For analog process measurements in the same cabinet — temperature, pressure, or flow — the 5069-IF8 8-Channel Analog Input Module provides high-resolution signal acquisition, while the 5069-OF8 Analog Output Module drives control valves and positioners. Communication to the plant DCS or SCADA layer is typically handled via the 5069-AENTR EtherNet/IP Adapter, enabling deterministic data exchange over the plant’s industrial Ethernet backbone.

In larger installations where the 5069-IB8S feeds into a distributed I/O network, it may be paired with POINT I/O 1734-IB8S safety input modules at remote field junction boxes, all coordinated through a 1756 ControlLogix L8xE safety controller in the main control room. Power distribution within the panel is managed by 1606-XLP power supplies — Allen-Bradley’s industrial DIN-rail power supply series — ensuring stable 24V DC bus voltage even during line transients. Safety relay modules such as the 440R-N23132 Guardmaster Safety Relay provide hardwired backup protection for emergency stop circuits, complementing the software-based safety logic in the 5069-IB8S system.

Application in Critical Infrastructure

The Allen-Bradley 5069-IB8S is deployed across the most demanding sectors of industrial infrastructure worldwide. In oil and gas upstream operations, it monitors wellhead safety sensors — high-pressure switches, gas detection inputs, and emergency shutdown (ESD) pushbuttons — where SIL 2 integrity is mandated by IEC 61511. Offshore platform control rooms rely on its vibration tolerance and wide operating temperature range to maintain continuous operation through structural movement and marine humidity.

In mining and mineral processing, the module handles conveyor belt safety interlocks, crusher overload detection, and ventilation fan status monitoring in environments saturated with coal dust, silica, and corrosive particulates. Its sealed backplane connection and conformal-coat-ready design protect signal integrity where airborne contamination would compromise conventional I/O modules.

At power generation and electrical substation facilities, the 5069-IB8S monitors turbine protection inputs, transformer fault signals, and switchgear position feedback. Its IEC 61000-4 EMC compliance ensures immunity to the high-frequency switching transients and ground potential differences common in high-voltage environments. Water and wastewater treatment plants use it to monitor pump seal failures, chemical dosing interlocks, and overflow detection — applications where a missed safety input can result in environmental discharge or equipment damage.

In steel mills and metallurgical plants, the module operates reliably in the presence of intense electromagnetic interference from arc furnaces and induction heaters, maintaining safety loop integrity for ladle transfer systems, rolling mill guards, and fume extraction interlocks. Its 0–60°C operating range accommodates the elevated ambient temperatures found near furnace areas without derating.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a module fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault. Modules are inspected upon return; confirmed warranty failures are replaced within 5–7 business days.

Q2: How is each 5069-IB8S tested before shipment?
Every unit undergoes pre-shipment functional verification including power-on self-test (POST) confirmation, input channel continuity checks, and backplane communication handshake testing. Modules sourced from authorized distribution channels are accompanied by original Rockwell Automation traceability documentation. Units are packed in anti-static ESD-safe packaging with desiccant to prevent moisture ingress during international transit.

Q3: Is the 5069-IB8S compatible with my existing CompactLogix 5069 system and Studio 5000 project?
Yes. The 5069-IB8S is fully compatible with all CompactLogix 5069 chassis and is configured natively within Studio 5000 Logix Designer v32.00 and later. It supports Add-On Instructions (AOIs) for safety function blocks and integrates with Rockwell’s Safety Task in the controller. If you are upgrading from an earlier CompactLogix 5370 system, a migration path exists via the 5069 chassis adapter; contact our technical team for project-specific compatibility confirmation.

Q4: Can TOPNLMS support long-term supply continuity for this module?
Yes. TOPNLMS maintains standing inventory of high-demand CompactLogix 5069 safety I/O modules to support planned maintenance shutdowns, emergency breakdowns, and capital project builds. For customers with multi-site operations or annual maintenance contracts, we offer reserved stock agreements and priority allocation. Inquiries for volume pricing, lead-time commitments, or approved vendor qualification documentation should be directed to [email protected] or +86 18359293191.
