Allen-Bradley 314066-A02 Original Industrial Spare SLC Compatible

Product Overview

Allen-Bradley 314066-A02 Original Industrial Spare SLC Compatible: Ensuring System Stability in Critical Automation Environments

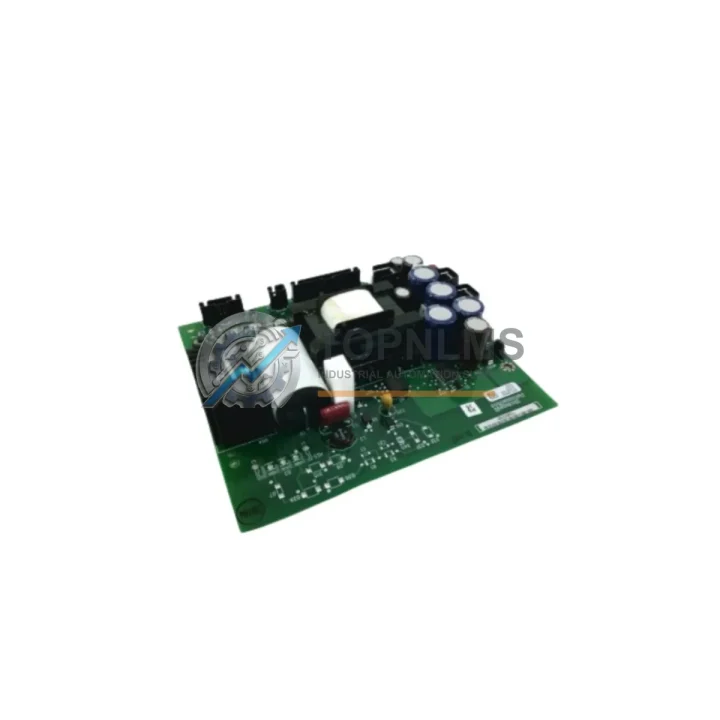

The Allen-Bradley 314066-A02 is an original PC power supply board engineered for Rockwell Automation industrial control platforms. In manufacturing facilities, process plants, and discrete automation environments where SLC-based control systems remain the backbone of production, maintaining a verified spare of the 314066-A02 is not optional — it is a fundamental element of any responsible maintenance strategy. Power supply boards are among the highest-failure-risk components in any control cabinet, subject to continuous thermal cycling, voltage fluctuation, and capacitor degradation over time. A failed power supply board can bring an entire production line to a halt within seconds, making rapid, like-for-like replacement the only viable path to minimizing unplanned downtime.

The 314066-A02 is designed to deliver stable, regulated DC power to the processor and I/O backplane of compatible Rockwell Automation PC-based control platforms. Its original design ensures full electrical compatibility with the host system without requiring firmware reconfiguration, jumper changes, or hardware adaptation. For maintenance engineers managing aging SLC or legacy Rockwell PC platforms, sourcing an original board — rather than a generic substitute — eliminates compatibility risk and preserves system certification integrity.

Critical Technical Specs

Preventive Maintenance Strategy

A power supply board failure rarely occurs in isolation. In any planned maintenance window or emergency shutdown, experienced maintenance engineers know that the power supply board is the first component to inspect — but it should never be the last. When replacing or inspecting the 314066-A02, a comprehensive cabinet audit is strongly recommended to prevent repeat failures and extend the operational life of the entire control system.

Begin by inspecting the backplane and chassis assembly for signs of corrosion, loose connectors, or mechanical stress. The backplane distributes power and communication signals to all installed modules; a degraded backplane can cause intermittent faults that are difficult to diagnose and often misattributed to the processor or I/O modules. At the same time, verify the condition of all SLC 500 I/O modules — digital input, digital output, and analog I/O cards — as power irregularities from a failing supply board can cause latent damage to I/O circuitry that only manifests weeks after the original fault.

The SLC 5/03, 5/04, or 5/05 processor module should be checked for firmware version and battery status. Processor batteries are a frequently overlooked maintenance item; a depleted battery results in program loss on power cycle, compounding the impact of any power supply failure. While the cabinet is open, inspect all terminal blocks and wiring harnesses for insulation degradation, loose terminations, and signs of overheating — conditions that accelerate power supply board wear.

For systems with communication-intensive architectures, the DH+ or ControlNet communication module should be tested for signal integrity. Communication modules are sensitive to power quality; a marginal power supply board can introduce noise that degrades network performance long before causing a hard fault. Similarly, any installed analog signal isolators or signal conditioning modules should be verified for calibration drift, as these components are directly affected by supply voltage stability.

If the control cabinet includes a 24VDC power supply unit feeding field devices, sensors, or relay coils, this should be load-tested and its output voltage verified under full load. A degraded 24VDC PSU is a common secondary cause of I/O faults that are incorrectly diagnosed as PLC processor issues. Relay output modules and relay interface modules should also be inspected for contact wear, particularly in high-cycle applications such as conveyor control, press automation, or packaging lines.

Finally, review the status of any installed fuse modules or circuit protection assemblies within the cabinet. Blown or weakened fuses are a direct indicator of overcurrent events that may have contributed to the power supply board failure. Replacing fuses without addressing the root cause — and without stocking verified spare fuse modules — leaves the system vulnerable to repeat failure. A complete spare parts kit for this platform should include the 314066-A02 power supply board, a spare processor module, at least one set of I/O modules for each installed type, a communication module, and a set of fuse and terminal block spares.

Strategic Replacement Solutions

The Allen-Bradley 314066-A02 is a direct original replacement for aging or failed PC power supply boards in Rockwell Automation SLC-compatible control platforms. Unlike third-party alternatives, the original board requires no hardware modification, no firmware update, and no recalibration of connected I/O — it is a true drop-in replacement that restores system operation to factory specification.

For facilities managing multiple SLC-based control systems, maintaining at least one 314066-A02 in on-site inventory is the most cost-effective insurance against unplanned downtime. The cost of a single hour of production stoppage in most industrial environments far exceeds the cost of stocking a verified spare. With a 12-month warranty and pre-shipment testing, the 314066-A02 sourced from TOPNLMS provides procurement teams with the documentation and confidence required for maintenance budget justification.

For older systems where the original platform is approaching end-of-life, the 314066-A02 also serves as a bridge component — extending the operational life of the existing control architecture while a migration to a newer Rockwell Automation platform such as the ControlLogix or CompactLogix family is planned and budgeted. This approach avoids forced emergency migrations driven by component failure and allows engineering teams to execute system upgrades on a controlled schedule.

Support FAQ

Q: Is the 314066-A02 tested before shipment?
A: Yes. Every unit is functionally tested prior to dispatch. A test report is available upon request. All units are shipped in ESD-safe packaging to prevent electrostatic damage during transit.

Q: What warranty coverage is provided?
A: The 314066-A02 carries a 12-month warranty from the date of shipment. Warranty coverage includes functional failure under normal operating conditions. Our technical team provides pre- and post-sale support for installation verification and compatibility confirmation.

Q: How do I verify compatibility with my existing Rockwell Automation system before ordering?
A: Provide your existing system model number, chassis type, and current power supply part number to our technical team at [email protected]. We will confirm compatibility before order confirmation. We do not recommend installation without prior compatibility verification for board-level components.

Q: What is the recommended inventory strategy for this component?
A: For facilities with one to three SLC-based control systems, maintaining one spare 314066-A02 on-site is recommended. For larger installations or critical production lines with zero-tolerance for downtime, a minimum of two units is advised. Pairing this spare with a spare processor module and a set of I/O modules provides comprehensive coverage for the most common failure scenarios in this platform.
