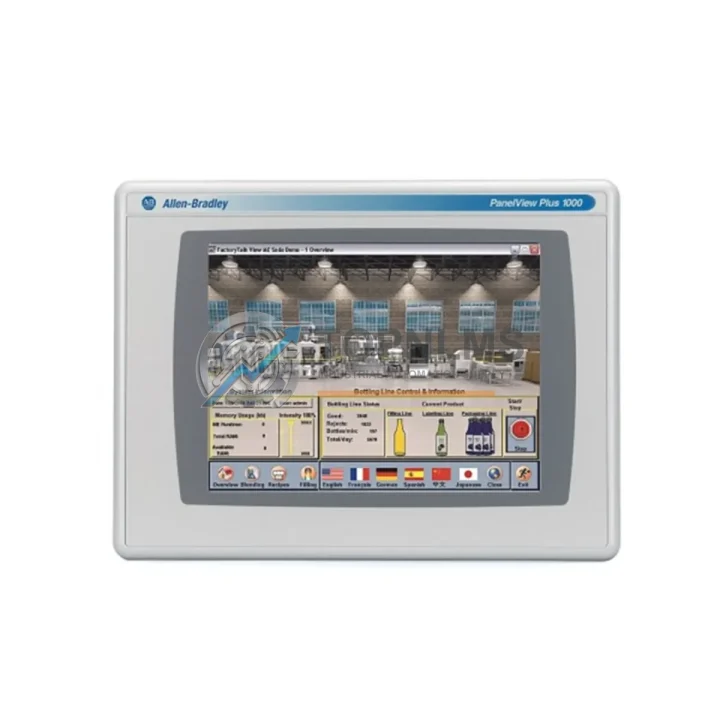

Allen-Bradley 2711PC-T10C4D8 Ruggedized HMI Terminal for Harsh Environments

Product Overview

Allen-Bradley 2711PC-T10C4D8 Ruggedized HMI Terminal: Industrial Resilience for Harsh Environments

The Allen-Bradley 2711PC-T10C4D8 is a PanelView Plus Compact 1000 DC Human-Machine Interface (HMI) terminal engineered by Rockwell Automation to deliver uncompromising performance in the most demanding industrial environments. With a 10.4-inch color touch screen, integrated DC power input, and a compact yet robust enclosure, this HMI terminal is purpose-built for continuous operation in high-temperature, high-humidity, dusty, vibration-prone, and electromagnetically noisy plant floors. Whether deployed in a petrochemical control room, a mining conveyor system, a water treatment facility, or a heavy-duty metal processing line, the 2711PC-T10C4D8 provides operators with a reliable, high-visibility interface that keeps critical processes under control around the clock.

Designed to integrate seamlessly with Allen-Bradley ControlLogix, CompactLogix, and MicroLogix PLC families, this terminal communicates over EtherNet/IP and DF1 protocols, enabling real-time data exchange with the broader control architecture. In a typical control cabinet deployment, the 2711PC-T10C4D8 works alongside Allen-Bradley 1756-series ControlLogix I/O modules, 1769 CompactLogix expansion modules, and PowerFlex 525 or PowerFlex 755 variable frequency drives to provide operators with live process visualization, alarm management, and parameter adjustment without interrupting production. Its compatibility with the Studio 5000 Logix Designer and FactoryTalk View ME software ecosystem ensures that engineering teams can develop, test, and deploy HMI applications with confidence and minimal commissioning time.

In harsh-environment installations, the 2711PC-T10C4D8 is frequently paired with Allen-Bradley 1734 POINT I/O modules for distributed I/O management, 1783-series Stratix managed Ethernet switches for deterministic network communication, and 1606-series power supplies that deliver clean, stable DC power even under fluctuating grid conditions. The terminal’s sealed front panel meets NEMA 4/4X and IP65 ingress protection ratings, making it resistant to water jets, dust ingress, and corrosive washdown chemicals — a critical requirement in food processing, pharmaceutical, and chemical plant environments. Its wide operating temperature range and vibration tolerance further qualify it for mobile equipment, offshore platforms, and outdoor enclosures where ambient conditions are unpredictable.

Electromagnetic compatibility is a key strength of the 2711PC-T10C4D8. In facilities where large motors, welding equipment, high-frequency inverters, and power distribution switchgear generate significant EMI, this terminal maintains stable communication and display integrity. When installed with proper cable shielding, grounding practices, and Allen-Bradley 1492-series terminal blocks for clean signal routing, the HMI continues to deliver accurate process data without screen artifacts, communication dropouts, or false alarms. This makes it an ideal operator interface for arc furnace control panels, rolling mill automation systems, and high-power drive cabinets.

For safety-critical applications, the 2711PC-T10C4D8 can be integrated into safety-instrumented system architectures alongside Allen-Bradley GuardLogix safety PLCs and 440C-series safety relay modules. Operators can configure dedicated safety alarm screens, emergency shutdown (ESD) confirmation dialogs, and process interlock status displays that comply with IEC 61511 and ISA-84 functional safety standards. In oil and gas upstream and midstream facilities, this capability is essential for maintaining SIL-rated process protection while providing operators with intuitive, real-time situational awareness.

Rugged Specifications Table

Comprehensive Protection Solutions

The 2711PC-T10C4D8 is most effective when deployed as part of a fully integrated Allen-Bradley control architecture. In a typical heavy-industry control cabinet, this HMI terminal serves as the primary operator interface for a system built around a 1756-L73 ControlLogix CPU, with 1756-IB16 digital input modules and 1756-OB16 digital output modules handling field device I/O. Process analog signals from pressure transmitters, flow meters, and temperature sensors are conditioned through 1756-IF16 analog input modules before being visualized on the 2711PC-T10C4D8 screen in real time.

Motor control loops managed by PowerFlex 755 drives are monitored and adjusted directly from the HMI, with drive fault codes, speed references, and torque limits displayed on dedicated operator screens. For distributed control architectures, the terminal communicates over a 1783-BMS10CGL Stratix managed switch, ensuring deterministic EtherNet/IP traffic even in electrically noisy environments. Power quality for the entire panel is maintained by a 1606-XLS240E power supply, which provides regulated 24 VDC to the HMI, I/O modules, and 700-series relay modules simultaneously.

In safety-integrated installations, the 2711PC-T10C4D8 is paired with a 1756-L73S GuardLogix safety controller and 440C-CR30 safety relay to implement machine guarding and emergency stop functions. Signal integrity between field devices and the control panel is ensured through 1492-J4 terminal blocks and properly shielded instrumentation cables, minimizing ground loops and EMI-induced noise that could compromise HMI display accuracy or trigger nuisance alarms.

Application in Critical Infrastructure

The Allen-Bradley 2711PC-T10C4D8 has established a strong track record across the most demanding sectors of critical infrastructure. In oil and gas upstream facilities, it serves as the primary operator console for wellhead control panels, managing choke valve positions, separator pressure, and produced water flow rates in environments where ambient temperatures can exceed 50°C and salt-laden air accelerates corrosion. Its NEMA 4X-rated front panel and sealed connector interfaces make it suitable for Zone 2 classified areas when installed in appropriately rated enclosures.

In underground mining operations, the 2711PC-T10C4D8 controls conveyor belt systems, ventilation fan drives, and dewatering pump stations where vibration, coal dust, and high humidity are constant challenges. The terminal’s robust touch screen maintains reliable input recognition even when operators are wearing heavy gloves, and its high-brightness display remains legible under the mixed lighting conditions typical of mine portals and underground drives.

Water and wastewater treatment plants rely on the 2711PC-T10C4D8 for SCADA-integrated operator stations controlling aeration blowers, chemical dosing pumps, UV disinfection systems, and sludge dewatering presses. The terminal’s EtherNet/IP connectivity allows seamless integration with plant-wide SCADA systems running FactoryTalk View SE, providing operators with a consistent interface from the local panel to the central control room. In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the HMI manages auxiliary systems such as cooling water circuits, fuel gas conditioning skids, and transformer protection relay status displays, where continuous uptime is non-negotiable.

Metallurgical and steel processing plants deploy the 2711PC-T10C4D8 in rolling mill control pulpits, ladle furnace operator stations, and continuous casting machine interfaces, where the combination of high ambient temperatures, intense electromagnetic fields from induction heating equipment, and airborne metallic particulates creates one of the harshest operating environments in industrial automation. The terminal’s proven EMC performance and sealed enclosure design make it a preferred choice for these applications, where an HMI failure can result in costly production stoppages and safety incidents.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the 2711PC-T10C4D8?
The 12-month warranty covers all hardware defects, component failures, and operational malfunctions under normal industrial use conditions. If the unit fails to perform to its published specifications within the warranty period, we will repair or replace it at no additional cost. The warranty period begins from the date of shipment and applies to both new surplus and tested refurbished units as specified in your order confirmation.

Q2: How is each unit tested before shipment?
Every 2711PC-T10C4D8 unit undergoes a multi-stage pre-shipment inspection that includes visual inspection for physical damage, power-on functional testing to verify display, touch screen response, and communication port operation, and firmware version verification. Units are tested against Allen-Bradley factory specifications using calibrated test equipment. A test report is available upon request for customers requiring documented quality assurance records.

Q3: Is the 2711PC-T10C4D8 compatible with my existing ControlLogix or CompactLogix system?
Yes. The 2711PC-T10C4D8 is fully compatible with the Allen-Bradley ControlLogix (1756 series), CompactLogix (1769 series), MicroLogix, and SLC 500 PLC families via EtherNet/IP and DF1 serial communication. It is programmed using FactoryTalk View ME software and integrates directly with Studio 5000 Logix Designer tag databases, enabling seamless tag browsing and application development without manual address mapping.

Q4: Can you guarantee long-term supply and replacement support for this model?
Yes. We maintain dedicated stock of the 2711PC-T10C4D8 and related PanelView Plus Compact series terminals to support customers with long-term maintenance contracts, plant turnaround schedules, and emergency spare parts requirements. As an established industrial automation parts supplier, we source units from verified supply chains and can provide advance purchase agreements for customers requiring guaranteed availability over multi-year maintenance windows. Contact our technical team to discuss your specific stocking and replacement support needs.
