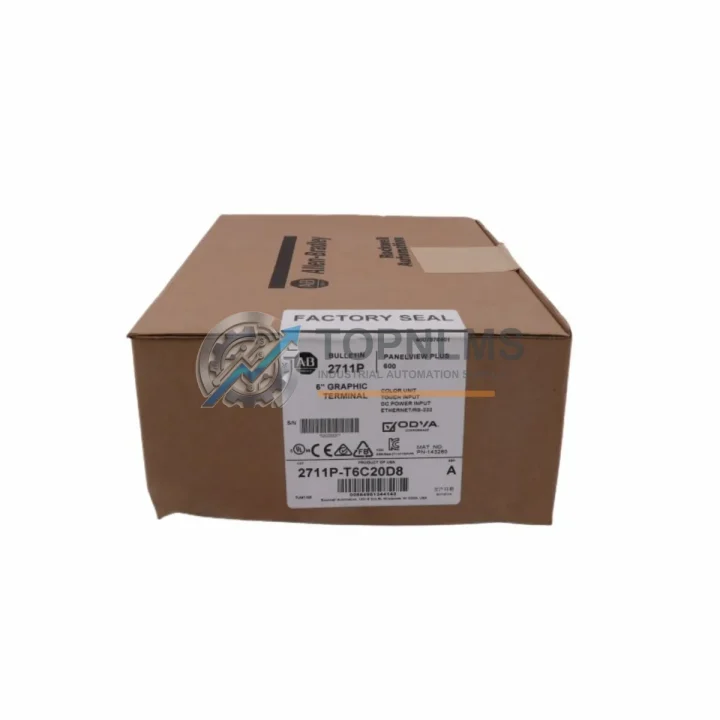

Allen-Bradley 2711P-T6C20D8 Original Industrial Spare PanelView Plus 6

Product Overview

Allen-Bradley 2711P-T6C20D8 Original Industrial Spare — PanelView Plus 6 System Stability & Maintenance Value

The Allen-Bradley 2711P-T6C20D8 is a 6.5-inch color touchscreen HMI terminal from the PanelView Plus 6 series, engineered by Rockwell Automation for demanding industrial environments. Whether you are managing a scheduled shutdown, responding to an unplanned fault, or building a proactive spare-parts inventory, the 2711P-T6C20D8 represents a critical node in your control system’s uptime strategy. Its DC input architecture, compact panel-mount form factor, and native FactoryTalk View ME compatibility make it a direct, drop-in replacement for aging or failed terminals across a wide range of manufacturing, process, and infrastructure applications.

In modern industrial facilities, HMI terminals are among the highest-wear operator interface components. Continuous touchscreen interaction, vibration, thermal cycling, and exposure to airborne contaminants accelerate degradation of display backlights, touch overlays, and internal power circuitry. Maintaining at least one verified spare 2711P-T6C20D8 on the shelf eliminates the risk of extended downtime caused by lead times on new procurement — a risk that can translate directly into production losses far exceeding the cost of the spare itself.

Critical Technical Specs

Preventive Maintenance Strategy

A disciplined preventive maintenance program for any control cabinet housing a PanelView Plus 6 terminal should extend well beyond the HMI itself. During a scheduled inspection or replacement of the 2711P-T6C20D8, maintenance engineers should simultaneously audit the surrounding electrical environment to prevent cascading failures.

Begin with the 24 VDC power supply feeding the HMI — units such as the Allen-Bradley 1606-XLP series are common in PanelView Plus 6 installations and should be checked for output voltage stability, ripple, and thermal performance. A degraded power supply is a leading cause of premature HMI failure and display anomalies. Alongside the power supply, inspect the 1492-series terminal blocks and wiring harnesses connected to the HMI’s I/O and communication ports; loose or corroded terminations introduce signal noise that can manifest as touchscreen erratic behavior or communication faults.

If the 2711P-T6C20D8 is integrated into a larger ControlLogix or CompactLogix control system, the inspection window is an ideal time to verify the health of the 1756-EN2T or 1769-L33ER EtherNet/IP communication modules that bridge the HMI to the PLC backplane. Communication module firmware should be current, and network switch ports serving the HMI should be checked for duplex mismatches or excessive error counts. For installations using legacy DH-485 or DF1 serial communication, the 1761-NET-AIC Advanced Interface Converter is a common point of failure and should be kept as a spare alongside the HMI terminal.

Within the control cabinet, 1756-series I/O modules — including digital input modules such as the 1756-IB16 and analog input modules such as the 1756-IF8 — should be visually inspected for indicator fault lights and reseated if necessary. Relay output modules like the 1756-OW16I are subject to contact wear and should be part of any lifecycle replacement plan. For systems with safety requirements, 1791DS-series safety I/O modules should be verified against their diagnostic status bits via the HMI itself before the terminal is swapped out.

Finally, the CompactFlash or SD memory card used to store the FactoryTalk View ME application on the 2711P-T6C20D8 should be backed up and a verified copy stored offline before any replacement procedure. Memory card corruption is a silent failure mode that can render an otherwise functional spare terminal inoperable at the moment it is most needed.

Strategic Replacement Solutions

The 2711P-T6C20D8 is designed as a form-fit-function replacement within the PanelView Plus 6 product family. Its panel cutout dimensions, DC power input, and FactoryTalk View ME application compatibility allow maintenance teams to execute a terminal swap in under 30 minutes with no PLC program changes required — provided the replacement unit is pre-loaded with the correct application image.

For facilities operating legacy PanelView Plus (5xx series) or PanelView Standard terminals, the 2711P-T6C20D8 represents a forward-compatible upgrade path. While application migration from older FactoryTalk View or PanelBuilder software is required, the investment eliminates dependency on discontinued hardware and extends the operational life of the surrounding control system by a decade or more. The PanelView Plus 6 platform remains in active production and support from Rockwell Automation, ensuring continued availability of firmware updates, spare parts, and technical documentation.

Stocking the 2711P-T6C20D8 as a managed spare — rather than sourcing reactively after a failure — reduces mean time to repair (MTTR) from days to hours. For high-criticality lines, a two-unit buffer stock is recommended: one unit pre-configured with the current application image and one unit in factory-sealed condition for long-term storage. Both units should be stored in anti-static packaging in a climate-controlled environment and rotated on a 3–5 year cycle to prevent capacitor aging.

Support FAQ

Q1: Is the 2711P-T6C20D8 a genuine original Allen-Bradley unit?
Yes. All units supplied by TOPNLMS are original Allen-Bradley / Rockwell Automation components. Each unit undergoes functional testing prior to shipment and is covered by a 12-month warranty from the date of delivery. We do not supply counterfeit, refurbished-as-new, or third-party clone units.

Q2: What is the lead time and how is the unit shipped?
In-stock units are typically dispatched within 1–3 business days. International shipments are made via DHL, FedEx, or UPS Express with full tracking. Each unit is packed in anti-static foam with original or equivalent protective packaging. A test report and packing list are included with every shipment.

Q3: Can this unit directly replace my existing PanelView Plus 6 terminal without reprogramming?
Yes, provided the replacement unit is loaded with the same FactoryTalk View ME application version as the original. The 2711P-T6C20D8 shares the same hardware platform, panel cutout, and communication interfaces as other PanelView Plus 6 6.5-inch terminals. If you require assistance verifying compatibility with your specific catalog number or firmware revision, contact our technical team before ordering.

Q4: What does the 12-month warranty cover?
The warranty covers manufacturing defects and functional failures under normal operating conditions for 12 months from the shipment date. It does not cover damage resulting from incorrect installation, overvoltage, physical impact, or operation outside specified environmental limits. Warranty claims are processed with a replacement unit dispatched after fault verification — we do not require return of the defective unit before shipping the replacement in most cases.
