Allen-Bradley 2711P-T12C4D1 Replacement for PanelView Plus 1250

Product Overview

Allen-Bradley 2711P-T12C4D1 Replacement for PanelView Plus 1250: Smooth Migration from Legacy HMI Systems

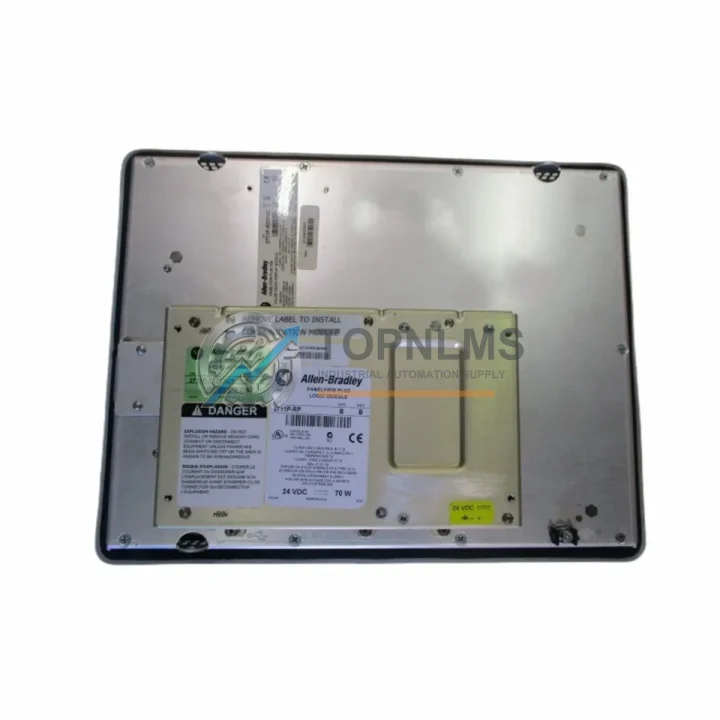

The Allen-Bradley 2711P-T12C4D1 is a 12.1-inch TFT color touch screen terminal from Rockwell Automation’s PanelView Plus 1250 series, designed for demanding industrial environments where operator interface reliability is non-negotiable. As legacy HMI platforms reach end-of-life or become increasingly difficult to source, facilities running older PanelView 1000, PanelView 1200, or early PanelView Plus 600/1000 terminals face mounting pressure to migrate to a more supportable platform without disrupting production. The 2711P-T12C4D1 provides a direct upgrade path that preserves existing communication infrastructure, minimizes rewiring, and reduces engineering rework during the transition.

This unit supports EtherNet/IP and DH-485 communication protocols, making it compatible with a broad range of Allen-Bradley PLCs including the ControlLogix 1756 series, CompactLogix 1769 series, and MicroLogix 1400 controllers. Facilities currently operating on legacy Data Highway Plus (DH+) networks can bridge to EtherNet/IP using a 1761-NET-ENI or 1761-NET-AIC adapter, preserving existing ladder logic and tag structures while upgrading the operator interface layer. This approach eliminates the need for full PLC reprogramming and allows phased modernization of the control architecture.

From a physical installation standpoint, the 2711P-T12C4D1 fits standard NEMA 4/4X and IP65-rated panel cutouts, which are common in control cabinets originally designed for PanelView 1200 or PanelView Plus 1000 terminals. The unit’s 12.1-inch display footprint and mounting dimensions allow direct panel replacement in most existing enclosures without requiring new cutouts or custom fabrication. Power supply requirements are 24 VDC, consistent with the majority of Allen-Bradley control cabinet power architectures using 1606-XLP or 1606-XLS series power supplies, so no power infrastructure changes are typically needed.

Application programming is handled through FactoryTalk View Studio ME, which supports direct import of existing PanelView Plus application files (.MER format). Engineers migrating from older PanelView Plus 600 or PanelView Plus 1000 terminals can reuse existing screen layouts, alarm configurations, tag databases, and trend displays with minimal modification. The 2711P-T12C4D1’s 12.1-inch screen resolution (800×600 SVGA) provides additional display real estate compared to smaller legacy terminals, allowing operators to consolidate multiple screens or add diagnostic information without redesigning the entire application.

For facilities running Siemens S7-300 or S7-400 PLCs alongside Allen-Bradley equipment in mixed-vendor environments, the 2711P-T12C4D1 can communicate via third-party protocol drivers available through FactoryTalk View ME, enabling integration without replacing the underlying PLC infrastructure. Similarly, plants using Modbus TCP/IP for legacy instrumentation can leverage the unit’s EtherNet/IP port with appropriate gateway configurations to maintain connectivity across heterogeneous control networks.

Procurement teams evaluating this replacement should note that the 2711P-T12C4D1 is stocked and available for immediate shipment from our Xiamen warehouse. Each unit undergoes pre-shipment functional testing covering display integrity, touch calibration, communication port verification, and power-on diagnostics. Standard lead time is 3–7 business days for international destinations, with expedited options available for urgent production downtime situations. All units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete migration from a legacy PanelView or early PanelView Plus platform to the 2711P-T12C4D1 typically involves several supporting components that work in concert to ensure system continuity. The 1756-EN2T EtherNet/IP communication module is commonly installed in existing ControlLogix 1756 chassis to enable high-speed network communication with the new HMI terminal, replacing older 1756-DHRIO Data Highway Plus bridge modules that are no longer supported. For CompactLogix-based systems, the 1769-L33ER or 1769-L36ERM controller already includes an onboard EtherNet/IP port, simplifying the network transition without additional hardware.

Wiring termination during the panel retrofit is typically handled through 1492-CABLE series pre-wired terminal blocks or 1492-IFM interface modules, which allow I/O wiring to be disconnected and reconnected at the terminal block level rather than at the PLC backplane — significantly reducing rewiring time and the risk of wiring errors during the cutover window. Signal isolation between legacy 4–20 mA analog loops and the new control system is addressed using DIN-rail-mounted signal isolators or 1794-IE8 FLEX I/O analog input modules where the existing I/O infrastructure requires modernization alongside the HMI upgrade.

For facilities where the control cabinet also houses legacy 1747-SLC 5/05 or 1747-SLC 5/04 processors communicating over DH-485, the 2711P-T12C4D1’s native DH-485 port provides a direct connection path without requiring a protocol converter, preserving the existing PLC program and tag structure while delivering a modern operator interface. Programming cable connectivity for on-site commissioning and application download is handled via the 2711P-CBL-EX04 Ethernet programming cable or standard Cat5e patch cable connected to the unit’s RJ-45 port.

Where the control cabinet layout requires a compact HMI alongside the 2711P-T12C4D1 for auxiliary operator stations, the 2711P-T7C4D1 (7-inch PanelView Plus 700) or 2711P-T10C4D1 (10.4-inch PanelView Plus 1000) can be deployed on the same EtherNet/IP network, sharing tag databases and alarm configurations managed centrally through FactoryTalk View ME Server. This multi-terminal architecture is common in large process control installations where operators require both a primary control station and a secondary monitoring station within the same control room.

Retrofit Guidance FAQ

Q: Can I reuse my existing PanelView Plus application files on the 2711P-T12C4D1?
A: Yes. FactoryTalk View Studio ME supports direct import of .MER application files from earlier PanelView Plus terminals. Screen layouts, tag databases, alarm configurations, and trend objects are preserved. Minor resolution adjustments may be needed when migrating from a 640×480 display to the 800×600 screen of the 2711P-T12C4D1.

Q: Does the 2711P-T12C4D1 support DH-485 communication for legacy SLC 500 systems?
A: Yes. The unit includes a native DH-485 port (RS-485), allowing direct connection to SLC 5/03, SLC 5/04, and SLC 5/05 processors without a protocol converter. Existing ladder logic and tag mappings remain unchanged.

Q: What is the panel cutout size for the 2711P-T12C4D1?
A: The required panel cutout is 330.2 mm × 254.0 mm (13.0″ × 10.0″). Verify your existing enclosure cutout dimensions before installation. In most cases where a PanelView 1200 or PanelView Plus 1000 was previously installed, the cutout will require minor enlargement.

Q: Is the 24 VDC power wiring compatible with my existing cabinet power supply?
A: Yes. The 2711P-T12C4D1 operates on 24 VDC (18–32 VDC range), consistent with standard Allen-Bradley 1606-XLP and 1606-XLS series power supplies. No power infrastructure changes are required in the vast majority of retrofit scenarios.

Q: How do I handle the EtherNet/IP network configuration during commissioning?
A: Assign a static IP address to the 2711P-T12C4D1 via the terminal’s configuration menu or via BOOTP/DHCP. Ensure the HMI and the target ControlLogix or CompactLogix controller are on the same subnet. Use RSLinx Classic or FactoryTalk Linx to verify communication before downloading the application.

Q: Can the 2711P-T12C4D1 communicate with non-Rockwell PLCs?
A: FactoryTalk View ME supports third-party communication drivers for Modbus TCP/IP, Siemens S7, and other protocols via RSLinx Enterprise or third-party OPC DA servers. Consult your system integrator for mixed-vendor communication configurations.

Warranty Assurance

Every 2711P-T12C4D1 unit supplied by TOPNLMS is backed by a 12-month warranty covering manufacturing defects, display failures, communication port malfunctions, and functional failures under normal industrial operating conditions. Prior to shipment, each unit undergoes a structured pre-delivery inspection that includes power-on functional testing, touch screen calibration verification, communication port continuity checks, and visual inspection for physical damage.

In the event of a warranty claim, our after-sales team responds within 24 business hours. Replacement units are dispatched from our Xiamen warehouse upon confirmation of the defect, with return shipping labels provided for the defective unit. For customers requiring advance replacement to minimize production downtime, expedited swap arrangements are available upon request.

Our procurement guarantee includes accurate product identification against the original Rockwell Automation catalog number, pre-shipment documentation (test report, packing list, and certificate of conformance available upon request), and full traceability of the supply chain. We maintain standing inventory of PanelView Plus series terminals to support both planned maintenance schedules and emergency replacement requirements.

For volume procurement, OEM integration projects, or system integrator partnerships, contact our technical sales team to discuss pricing, lead times, and consignment stock arrangements.
