Allen-Bradley 2711P-T10C22D9P Replacement for PanelView Plus 7

Product Overview

Allen-Bradley 2711P-T10C22D9P Replacement for PanelView Plus 7 Standard — Smooth Migration & Legacy System Compatibility

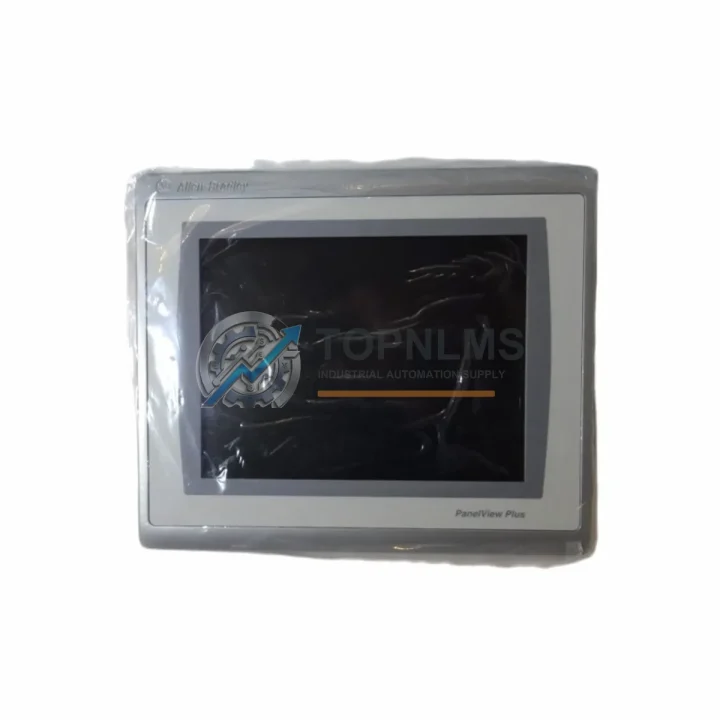

The Allen-Bradley 2711P-T10C22D9P is a 10.4-inch color touch-screen HMI terminal from the PanelView Plus 7 Standard series, manufactured by Rockwell Automation. As legacy PanelView Plus 6 and earlier PanelView Plus 7 units reach end-of-service milestones, plant engineers and system integrators increasingly require a verified, drop-in replacement that preserves existing wiring infrastructure, ControlLogix or CompactLogix communication configurations, and panel cutout dimensions — all while minimizing unplanned downtime.

TOPNLMS supplies the 2711P-T10C22D9P as a direct replacement unit, fully tested prior to shipment, with a 12-month warranty. Each unit is inspected for display integrity, touch calibration, communication port functionality, and power input compliance before dispatch from our Xiamen warehouse. Expedited international shipping is available to reduce field downtime to the absolute minimum.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from an aging PanelView Plus 6 or discontinued PanelView Plus 7 variant to the 2711P-T10C22D9P rarely involves the HMI terminal in isolation. In most retrofit projects, the HMI replacement is coordinated with adjacent system components to ensure end-to-end communication integrity and control cabinet compatibility.

On the controller side, the 2711P-T10C22D9P communicates natively over EtherNet/IP with Rockwell Automation controllers such as the 1756-L71 ControlLogix and 1769-L33ER CompactLogix processors. If the existing backplane or chassis — such as a 1756-A7 or 1756-A13 rack — is being retained, no communication reconfiguration is typically required beyond IP address assignment in FactoryTalk View Studio ME.

For installations where the legacy HMI was connected via a 1761-NET-ENI Ethernet interface module or a 1747-UIC USB-to-DH485 adapter, these interface devices can often be decommissioned entirely, as the 2711P-T10C22D9P provides direct dual-port EtherNet/IP connectivity. This simplifies the control cabinet wiring and reduces potential failure points.

In distributed I/O architectures, the HMI upgrade is frequently paired with a review of 1734 POINT I/O or 1756 ControlLogix I/O modules. If any I/O modules are also approaching end-of-life, coordinating their replacement alongside the HMI swap reduces total system downtime and consolidates commissioning effort into a single maintenance window.

Power distribution within the control cabinet should also be verified. The 2711P-T10C22D9P operates on 24 VDC, consistent with most Rockwell Automation panel power architectures. If the existing 1606-XLP power supply or equivalent is already supplying 24 VDC to the legacy HMI, no power wiring changes are required. For cabinets undergoing broader modernization, a 1606-XLS series power supply with higher current capacity may be considered to support additional devices.

Where the retrofit scope includes updating the programming environment, engineers should ensure FactoryTalk View Studio ME is updated to version 8.0 or later before transferring the existing application to the replacement terminal. Application files (.MER format) created on earlier PanelView Plus 6 platforms can typically be converted and re-deployed to the 2711P-T10C22D9P with minimal tag remapping, particularly when the underlying ControlLogix or CompactLogix program structure has not changed.

Retrofit Guidance FAQ

Q: Can I reuse the existing panel cutout?
A: Yes. The 2711P-T10C22D9P uses the same standard 10.4″ PanelView cutout dimensions as predecessor PanelView Plus 6 and Plus 7 models. No panel sheet metal modification is required in the vast majority of installations.

Q: Is the 24 VDC wiring directly compatible?
A: Yes. The power connector pinout and 24 VDC input specification are consistent with earlier PanelView Plus models. Existing power wiring can be reconnected directly without modification.

Q: Do I need to rewrite my FactoryTalk View ME application?
A: In most cases, no. Existing .MER application files can be restored to the 2711P-T10C22D9P via USB or Ethernet. Minor tag path updates may be required if the controller IP address or slot configuration has changed.

Q: What communication protocols does this unit support?
A: The 2711P-T10C22D9P communicates via EtherNet/IP natively. It is compatible with ControlLogix, CompactLogix, MicroLogix (via Ethernet bridge), and other EtherNet/IP-enabled Rockwell Automation controllers.

Q: How is the replacement unit shipped and tested?
A: Each unit undergoes pre-shipment functional testing covering display, touch calibration, Ethernet port operation, and power input. Units are shipped with protective packaging from our Xiamen facility. Expedited international shipping options are available.

Q: What if the replacement unit develops a fault within the warranty period?
A: TOPNLMS provides a 12-month warranty from the date of shipment. Faulty units are eligible for replacement or repair. Our technical support team responds within one business day to warranty claims.

Warranty Assurance

Every 2711P-T10C22D9P supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection protocol includes functional power-on testing, display and touch verification, communication port validation, and visual inspection for physical integrity. Units that do not pass inspection are not dispatched.

In the event of a warranty claim, TOPNLMS will assess the reported fault and arrange for unit replacement or repair at no additional cost to the buyer. Our after-sales response target is one business day. We maintain stock of common PanelView Plus 7 Standard models to support rapid replacement dispatch when required.

For procurement teams, we can provide test reports, shipment documentation, and unit serial numbers upon request. Bulk orders and standing purchase agreements are supported for MRO and spare parts programs.
