Allen-Bradley 2711P-RP8D Replacement for PanelView Plus 6

Product Overview

Allen-Bradley 2711P-RP8D Replacement for PanelView Plus 6: Seamless Transition & Legacy System Upgrade

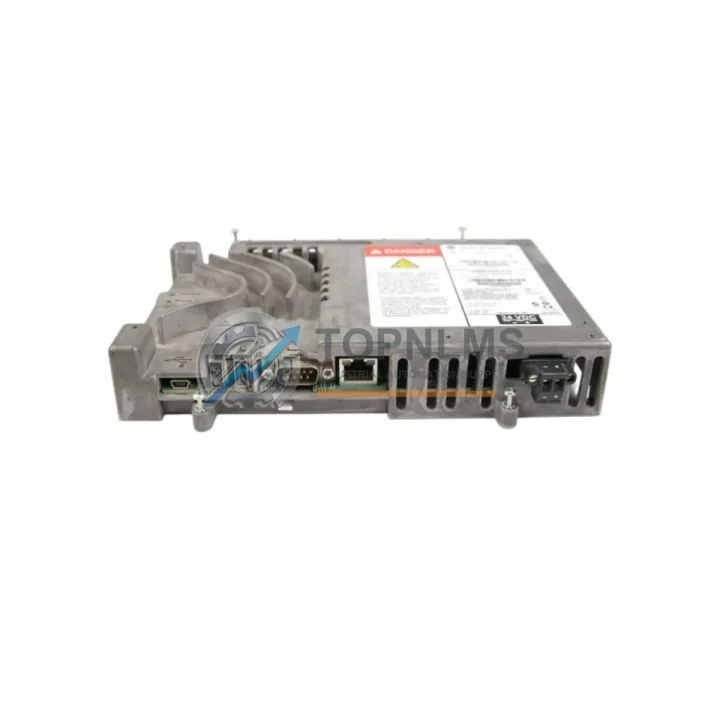

The Allen-Bradley 2711P-RP8D is the runtime core logic module for the PanelView Plus 6 family of human-machine interface terminals. As industrial facilities continue to modernize aging SCADA and control architectures, the 2711P-RP8D has become one of the most sought-after replacement and upgrade components for plants running legacy PanelView Plus 600, PanelView Plus 700, PanelView Plus 1000, and PanelView Plus 1250 terminals. Whether your existing runtime module has failed, reached end-of-life, or your facility is executing a planned migration from an older PanelView 550 or PanelView 900 operator panel to the PanelView Plus 6 platform, this module provides a direct, validated upgrade path with minimal disruption to your production environment.

The 2711P-RP8D runtime core is designed to slot directly into the PanelView Plus 6 terminal chassis, replacing the logic processing unit without requiring panel cutout modifications or new enclosure fabrication. The module retains full compatibility with existing FactoryTalk View ME application files, meaning your HMI screens, alarm configurations, tag databases, and communication driver settings can be transferred or reused with minimal reprogramming effort. For facilities running Logix5000-based controllers — including the CompactLogix L3x series and ControlLogix L7x series — the 2711P-RP8D communicates natively over EtherNet/IP, preserving your existing network topology and eliminating the need for protocol converters or gateway devices.

During a typical retrofit, engineers replacing a failed or obsolete runtime module will also evaluate adjacent components in the control cabinet. The 2711P-RW1 CompactFlash card is commonly replaced alongside the runtime core to ensure application storage integrity, while the 2711P-CBL-EX04 programming cable is used to re-establish communication between the engineering workstation and the terminal during commissioning. If the terminal is mounted in a harsh environment, the 2711P-T10C4D8 or 2711P-T12W21D8S display assembly may also be assessed for wear, as the logic module and display assembly share the same chassis form factor and are often upgraded together during planned maintenance windows.

For plants migrating from older Rockwell Automation platforms — such as the PLC-5 or SLC 500 series — to a modern Logix-based architecture, the 2711P-RP8D serves as the HMI anchor point in the new system. The migration typically involves replacing the legacy 1785-L40B or 1747-L553 processor with a ControlLogix or CompactLogix controller, updating the I/O subsystem from 1771 or 1746 fixed I/O to 1756 or 1769 modular I/O, and simultaneously upgrading the operator interface from a PanelView 550 or PanelView 900 to a PanelView Plus 6 terminal running the 2711P-RP8D runtime core. This coordinated upgrade eliminates the communication bottlenecks associated with DH+ and DH-485 networks, transitioning the entire system to EtherNet/IP for unified, high-speed data exchange.

Physical installation of the 2711P-RP8D is straightforward. The module inserts into the rear of the PanelView Plus 6 terminal and is secured with standard captive screws. No additional mounting hardware, DIN rail adapters, or backplane connectors are required beyond what is already present in the existing terminal chassis. Power is supplied directly through the terminal’s internal bus, and the module draws from the same 24 VDC supply used by the display assembly, simplifying power budget calculations during panel design. The module’s compact form factor ensures it fits within the original panel cutout dimensions, which is a critical consideration when retrofitting existing enclosures where space is constrained.

Communication compatibility is a primary concern for any HMI upgrade project. The 2711P-RP8D supports EtherNet/IP as its primary network protocol, with full CIP (Common Industrial Protocol) compliance ensuring interoperability with any Logix-family controller, Stratix managed switch, or third-party EtherNet/IP device on the plant network. For legacy installations that still rely on DF1 serial communication to interface with older MicroLogix 1100 or MicroLogix 1400 controllers, the terminal’s serial port remains accessible, providing a backward-compatible communication path during phased migration projects where not all controllers are upgraded simultaneously.

Spare parts availability and procurement lead time are critical factors in industrial maintenance planning. TOPNLMS maintains ready stock of the 2711P-RP8D to support emergency replacement scenarios where production downtime must be minimized. Each unit undergoes functional verification prior to shipment, including power-on testing, communication port validation, and firmware version confirmation. Units are shipped in anti-static packaging with full documentation, and global express delivery options are available to support urgent maintenance requirements at facilities worldwide.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PanelView Plus 6 runtime core replacement rarely involves the 2711P-RP8D in isolation. In most field retrofit scenarios, the engineering team will simultaneously evaluate and source several related components to ensure the upgraded terminal is fully operational and future-proofed. The 2711P-RW1 CompactFlash card is the standard application storage medium for the PanelView Plus 6 platform and is typically replaced alongside the runtime core to eliminate the risk of corrupted application data from a worn or failed storage card. The 2711P-CBL-EX04 programming and configuration cable is required to connect the engineering workstation to the terminal’s USB or serial port during initial commissioning and firmware updates.

For facilities upgrading the broader control system architecture, the 1756-L73 ControlLogix processor and 1769-L33ER CompactLogix controller are the most common Logix-family controllers paired with PanelView Plus 6 terminals in new and retrofit installations. These controllers communicate with the 2711P-RP8D over EtherNet/IP through a Stratix 5700 managed Ethernet switch, which provides the network segmentation and Quality of Service (QoS) features required for reliable HMI-to-controller communication in production environments. Where legacy serial communication must be preserved during a phased migration, the 1761-NET-AIC Advanced Interface Converter provides a bridge between DF1 full-duplex serial and the plant’s existing DH-485 network, allowing the upgraded PanelView Plus 6 terminal to communicate with MicroLogix controllers that have not yet been replaced.

I/O infrastructure upgrades that accompany a runtime core replacement often include the 1769-IQ16 CompactLogix 16-point DC input module and 1769-OB16 16-point DC output module, which provide the discrete I/O capacity required for most machine control applications. For analog signal conditioning, the 1769-IF4 4-channel analog input module is commonly specified alongside the runtime core upgrade to support process variable monitoring directly from the HMI. Signal isolation requirements in high-noise industrial environments may also necessitate the addition of dedicated signal isolators between field devices and the I/O modules to protect the upgraded control system from electrical interference.

Retrofit Guidance FAQ

Q: Can I reuse my existing FactoryTalk View ME application file after replacing the runtime core?
A: Yes. The 2711P-RP8D is fully compatible with existing FactoryTalk View ME .mer application files. In most cases, the application file can be transferred directly from the old CompactFlash card or from the engineering workstation to the new runtime core without modification. If the firmware version on the replacement module differs from the original, a firmware update may be required before loading the application file.

Q: Does replacing the runtime core require any wiring changes in the control cabinet?
A: No wiring changes are required for a like-for-like runtime core replacement within the PanelView Plus 6 terminal family. The 2711P-RP8D connects to the display assembly and power supply through the terminal’s internal bus, and all external wiring — including Ethernet, serial, and power connections — interfaces with the terminal chassis rather than the runtime module directly.

Q: Is the 2711P-RP8D compatible with EtherNet/IP networks using managed switches?
A: Yes. The module supports full EtherNet/IP (CIP) communication and is compatible with both managed and unmanaged Ethernet switches. For production environments, a managed switch such as the Stratix 5700 is recommended to enable VLAN segmentation, port mirroring, and QoS prioritization for HMI traffic.

Q: What is the physical installation procedure for the 2711P-RP8D?
A: Power down the PanelView Plus 6 terminal and disconnect all external cables. Remove the existing runtime module by loosening the captive screws on the rear of the terminal chassis. Insert the 2711P-RP8D into the module slot, ensuring the connector is fully seated, and tighten the captive screws. Reconnect all external cables, restore power, and proceed with firmware verification and application file loading.

Q: Can the 2711P-RP8D communicate with legacy PLC-5 or SLC 500 controllers?
A: Direct EtherNet/IP communication with PLC-5 or SLC 500 controllers is not supported, as these platforms predate the EtherNet/IP protocol. However, communication can be established via DF1 serial using the terminal’s serial port, or through a protocol gateway device that bridges EtherNet/IP to DH+ or DH-485. For long-term reliability, upgrading the legacy controller to a Logix-family platform is recommended.

Q: What programming software is required to configure the 2711P-RP8D?
A: FactoryTalk View Studio ME is the required engineering software for creating and modifying HMI applications for the PanelView Plus 6 platform. The software runs on a Windows-based engineering workstation and connects to the terminal via Ethernet or USB using the 2711P-CBL-EX04 cable.

Warranty Assurance

Every Allen-Bradley 2711P-RP8D supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a structured pre-shipment inspection that includes power-on functional testing, communication port verification, firmware version confirmation, and physical condition assessment. Units that do not meet our quality standards are quarantined and excluded from sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection of the returned item. Our technical support team is available to assist with installation guidance, compatibility verification, and commissioning support via email and telephone. Replacement units for warranty claims are dispatched within 2 business days of claim approval to minimize production downtime for our customers.

We ship globally via DHL Express, FedEx International Priority, and UF Express, with typical transit times of 3–7 business days to most destinations. Export documentation, including commercial invoices, packing lists, and certificates of origin, is prepared for all international shipments to facilitate smooth customs clearance. For urgent replacement requirements, same-day dispatch is available for orders confirmed before 14:00 CST.

TOPNLMS is committed to supporting industrial facilities through every stage of their control system modernization journey — from emergency spare parts procurement to planned multi-phase migration projects. Our inventory of Allen-Bradley, Siemens, Schneider Electric, ABB, and Mitsubishi automation components is maintained to support both immediate replacement needs and long-term project sourcing requirements.
