Allen-Bradley 2711P-RP3 Replacement/Upgrade Solution

Product Overview

Allen-Bradley 2711P-RP3 Replacement/Upgrade Solution for PanelView Plus 6: Seamless Transition from Legacy HMI Systems

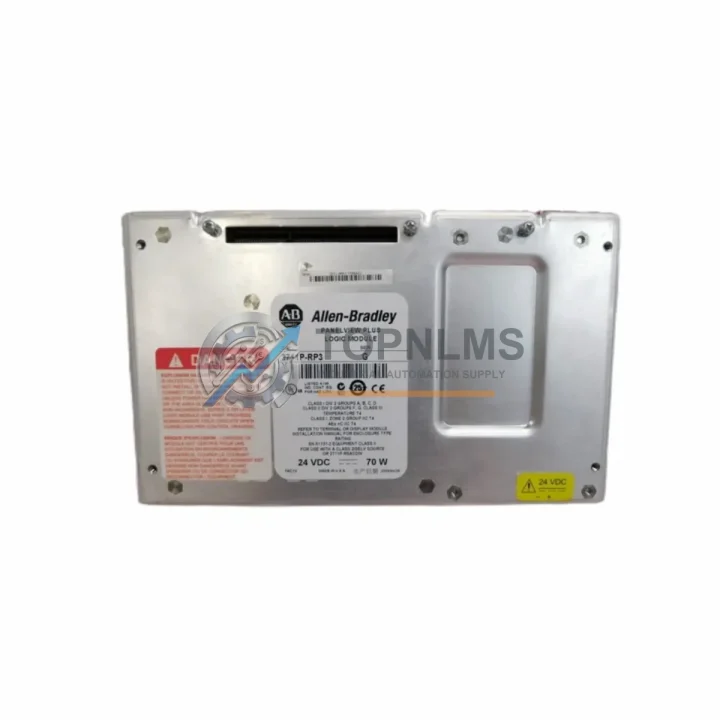

The Allen-Bradley 2711P-RP3 is the 256MB marine-grade logic module designed for the PanelView Plus 6 family of human-machine interfaces. As industrial facilities continue to modernize aging control architectures, the 2711P-RP3 serves as a direct, field-proven replacement for earlier PanelView Plus logic modules — including the 2711P-RP1 and 2711P-RP2 — without requiring panel cutout modifications or new terminal wiring. Whether your facility is retiring a legacy PanelView 1000e, migrating from a PanelView Plus 1000 (2711P-T10C4D8), or consolidating a distributed HMI network, the 2711P-RP3 provides a validated upgrade path that minimizes engineering rework and unplanned downtime.

In a typical retrofit scenario, the 2711P-RP3 slots directly into the existing PanelView Plus 6 terminal chassis, replacing a worn or failed logic module without disturbing the display assembly, backplane connector, or existing Ethernet/IP wiring. The module retains compatibility with FactoryTalk View ME application files, meaning operators can transfer existing .MER runtime files from the old module via USB or SD card and resume production with minimal reconfiguration. For sites running ControlLogix L7x or CompactLogix L3x controllers, the EtherNet/IP communication path remains unchanged — no driver updates or tag remapping are required in Studio 5000 Logix Designer.

Facilities upgrading from older DeviceNet or DH-485 based HMI architectures will find the 2711P-RP3 particularly valuable. The module supports dual Ethernet ports for Device Level Ring (DLR) topology, enabling seamless integration into ring-based network architectures alongside other DLR-capable devices such as the 1756-EN2TR EtherNet/IP bridge module or Stratix 5700 managed switches. This eliminates the need for additional network hardware when migrating from legacy serial communication setups.

For control cabinet integrators, the 2711P-RP3 maintains the same physical footprint and power draw as its predecessors, drawing 24VDC from the existing panel power supply — typically a 1606-XLP or equivalent 24VDC regulated supply — without requiring a dedicated power rail upgrade. The marine-grade rating (UL Type 4X / IP66 equivalent) ensures continued suitability for washdown, offshore, and harsh-environment applications where the original module was deployed.

During field commissioning, technicians replacing a failed 2711P-RP2 with the 2711P-RP3 will note that the SD card slot position and USB Type-A port remain in identical locations, preserving existing cable management. Backup and restore procedures using FactoryTalk View ME Station remain identical, and the module’s onboard diagnostics are accessible through the same terminal configuration menu. For multi-panel installations — such as those using a 2711P-RDT10C display terminal paired with a remote logic module — the 2711P-RP3 is fully compatible with the existing remote I/O cable assembly and requires no firmware downgrade.

Sites operating mixed Rockwell Automation architectures that include 1769 CompactLogix I/O modules, 1734 POINT I/O distributed racks, or 1756 ControlLogix chassis will benefit from the 2711P-RP3’s native EtherNet/IP Class 1 and Class 3 messaging support, ensuring real-time data exchange with all connected I/O subsystems without additional configuration. The module also supports RSLinx Classic and RSLinx Enterprise for legacy integration environments where FactoryTalk Linx has not yet been deployed.

From a procurement standpoint, TOPNLMS maintains verified stock of the 2711P-RP3 with full pre-shipment functional testing, including power-on self-test, Ethernet port verification, and SD card read/write validation. Each unit ships with original Allen-Bradley packaging where available, and all units are covered by a 12-month replacement warranty from the date of delivery. Expedited shipping from Xiamen is available for urgent breakdown scenarios, with DHL Express and FedEx International Priority options supporting next-business-day dispatch for in-stock units.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete PanelView Plus 6 logic module migration typically involves more than a single component swap. During the upgrade process, engineers commonly address the condition of the 2711P-RDT10C display terminal, which may show backlight degradation after years of continuous operation. The 1606-XLP panel power supply should be inspected for output voltage stability, as aging supplies can cause intermittent logic module resets. For facilities transitioning from serial-based HMI communication, the 1761-NET-ENI EtherNet/IP adapter provides a bridge for legacy MicroLogix 1100 or SLC 500 controllers that do not natively support EtherNet/IP, allowing the new 2711P-RP3 to communicate without replacing the entire controller platform.

In distributed I/O environments, the 1734-AENT POINT I/O EtherNet/IP adapter is frequently upgraded in parallel with the HMI logic module to ensure consistent network firmware versions across the DLR ring. Similarly, sites using 1756-EN2TR dual-port EtherNet/IP communication modules in their ControlLogix chassis benefit from the DLR topology support introduced in the 2711P-RP3, enabling a fully redundant ring without additional switches. For programming and backup operations during commissioning, a 1784-U2DHP USB-to-DH+ interface cable is recommended for technicians who need to access legacy SLC or PLC-5 controllers in the same panel during the transition period. Where signal isolation is required between the HMI power circuit and field I/O, a DIN-rail mounted signal isolator or 1492-AIFM analog interface module ensures clean signal integrity throughout the retrofit.

Retrofit Guidance FAQ

Q: Can I reuse my existing FactoryTalk View ME application without modification?
A: Yes. Copy the .MER runtime file from the old module’s SD card or USB backup and load it onto the 2711P-RP3. No recompilation is required if the target controller IP address and tag database remain unchanged.

Q: Do I need to re-terminate any Ethernet cables?
A: No. The 2711P-RP3 uses the same RJ-45 connector positions as the 2711P-RP2. Existing Cat5e or Cat6 patch cables connect directly without modification.

Q: Is the 2711P-RP3 compatible with older ControlLogix L6x controllers?
A: Yes, via EtherNet/IP Class 1 and Class 3 messaging. Ensure the 1756-ENBT or 1756-EN2T module firmware is at a compatible revision (v4.x or later recommended).

Q: What happens to my DH-485 network if I was using the 2711P-RP1?
A: The 2711P-RP3 does not include a native DH-485 port. A 1761-NET-AIC Advanced Interface Converter can bridge the existing DH-485 segment to the EtherNet/IP network, preserving communication with legacy SLC 500 controllers.

Q: How much physical space does the swap require?
A: The 2711P-RP3 is a direct drop-in replacement for the existing logic module slot in any PanelView Plus 6 terminal. No panel cutout enlargement or DIN rail repositioning is needed.

Q: Can the module be tested before installation?
A: Yes. TOPNLMS performs a full power-on self-test, Ethernet port check, and SD card validation on every unit prior to shipment. A test report is available upon request.

Warranty Assurance

Every Allen-Bradley 2711P-RP3 supplied by TOPNLMS is backed by a 12-month replacement warranty from the date of confirmed delivery. Pre-shipment testing includes power-on self-test, dual Ethernet port link verification, USB port functionality check, and SD card read/write cycle validation. Units that fail any test criterion are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS initiates a replacement dispatch within 2 business days of fault confirmation — no extended RMA queues. Our technical support team is reachable at [email protected] or +86 18359293191 for pre-purchase compatibility verification, commissioning guidance, and post-delivery support. Expedited replacement shipping is available for critical breakdown scenarios at no additional warranty cost.

Procurement teams can request a formal quotation, proforma invoice, or certificate of conformity for each order. All units are shipped with commercial invoice and packing list documentation suitable for customs clearance in major industrial markets including the EU, Southeast Asia, the Middle East, and South America.
