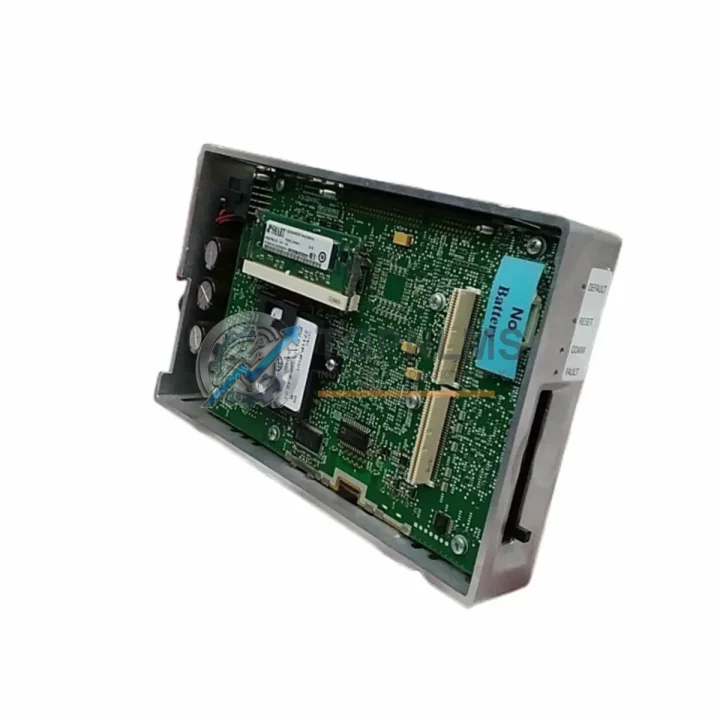

Allen-Bradley 2711P-RP1EX Ruggedized HMI Logic Module

Product Overview

Allen-Bradley 2711P-RP1EX Ruggedized HMI Logic Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 2711P-RP1EX is a high-performance HMI Logic Module engineered for the PanelView Plus operator terminal platform, designed to deliver uncompromising reliability in the most demanding industrial environments. Whether deployed on a continuous petrochemical production line, inside a dusty mining control cabinet, or exposed to the electromagnetic interference of a heavy-duty motor drive system, the 2711P-RP1EX maintains stable, deterministic operation where lesser components fail. Its ruggedized architecture reflects Rockwell Automation’s commitment to industrial-grade durability — making it a trusted backbone for critical HMI applications across global process industries.

Built to withstand wide operating temperature ranges, high-humidity conditions, and mechanical vibration common to steel mills, water treatment facilities, and offshore platforms, the 2711P-RP1EX integrates seamlessly into existing PanelView Plus 6 and PanelView Plus 7 terminal housings. Its compact logic module form factor allows field technicians to perform rapid replacement without full terminal disassembly, minimizing unplanned downtime on production-critical assets.

Rugged Specifications Table

Comprehensive Protection Solutions

The 2711P-RP1EX does not operate in isolation — it is the intelligence layer within a broader, integrated control architecture. In a typical heavy-industry control cabinet, this logic module interfaces directly with Allen-Bradley ControlLogix L7x series PLCs via EtherNet/IP, enabling real-time data exchange between the operator interface and the programmable controller. Alongside the 1756-EN2T EtherNet/IP communication module, the 2711P-RP1EX receives process variables, alarm states, and setpoint confirmations with sub-second latency, even under high network load.

For installations requiring distributed I/O, the module works in concert with 1734 POINT I/O modules and 1769 CompactLogix I/O adapters, allowing field signals from temperature transmitters, pressure switches, and flow meters to be visualized and acknowledged directly at the HMI terminal. In environments where variable-speed drives are present — such as Rockwell PowerFlex 755 or PowerFlex 525 AC drives — the 2711P-RP1EX provides the operator interface for speed reference, fault acknowledgment, and drive diagnostics, reducing the need for dedicated drive keypads and simplifying panel layouts.

Power integrity is equally critical. The 2711P-RP1EX terminal system is typically powered through Allen-Bradley 1606-XLP series industrial power supplies, which provide regulated 24 VDC with built-in surge protection and wide-range AC input — essential for sites with unstable grid power. Safety-critical installations may also incorporate 440C GuardMaster safety relays or 1791DS-IB4XOB4 Guard I/O modules to enforce machine safety zones, with the HMI terminal providing the operator acknowledgment interface for safety resets and bypass authorizations.

Communication redundancy is addressed through integration with 1783-US8T Stratix managed switches, ensuring that EtherNet/IP traffic between the 2711P-RP1EX and upstream ControlLogix controllers remains stable even in electrically noisy environments. For legacy installations still running Data Highway Plus networks, the module supports DH-485 connectivity through the 2711P-CBL-EX04 cable assembly, preserving backward compatibility with older Allen-Bradley SLC 500 and MicroLogix 1400 controller platforms.

Application in Critical Infrastructure

In oil and gas upstream operations, the 2711P-RP1EX serves as the primary operator interface for wellhead control panels and compressor skid automation systems. Its sealed, ruggedized logic module withstands the hydrocarbon-laden atmospheres and wide ambient temperature swings common to onshore and offshore installations. Operators use the PanelView Plus terminal to monitor compressor suction and discharge pressures, initiate emergency shutdowns, and acknowledge process alarms — all through a single, reliable HMI platform.

In underground mining environments, where coal dust, silica particulate, and mechanical shock are constant threats, the 2711P-RP1EX is deployed in conveyor belt control systems, ventilation fan automation panels, and pump station monitoring stations. Its vibration-resistant design and wide operating temperature range ensure continuous operation through shift changes and seasonal temperature extremes, while its EtherNet/IP connectivity allows remote monitoring from surface control rooms.

Power generation facilities — including thermal, hydroelectric, and combined-cycle gas turbine plants — rely on the 2711P-RP1EX for turbine control HMI panels, auxiliary system monitoring, and balance-of-plant automation. The module’s EMI immunity is particularly valued in generator halls, where high-voltage switching events and large rotating machinery create significant electromagnetic disturbances that can disrupt lesser-grade electronics.

Municipal water treatment and wastewater management plants deploy the 2711P-RP1EX in SCADA-integrated control panels for pump stations, chemical dosing systems, and filtration process control. Its IP65-rated terminal housing resists the high-humidity, chemical-splash environments typical of water treatment facilities, while its long-term availability from TOPNLMS ensures that plant operators can source replacement modules without costly system redesigns.

In metallurgical and steel production environments, the 2711P-RP1EX withstands the radiant heat, heavy vibration, and electromagnetic interference generated by electric arc furnaces, rolling mills, and continuous casting lines. Its role in these facilities extends beyond simple operator display — it is the critical human-machine interface through which process engineers monitor melt temperatures, adjust rolling speeds, and respond to equipment fault conditions in real time.
