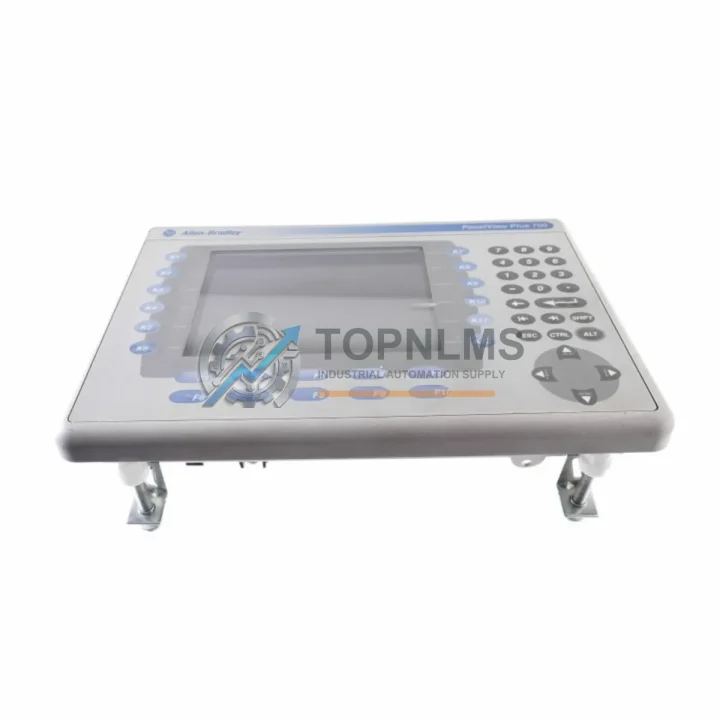

Allen-Bradley 2711P-RDK7C Ruggedized HMI Display Module for Harsh Environments

Product Overview

Allen-Bradley 2711P-RDK7C Ruggedized HMI Display Module for Harsh Environments

The Allen-Bradley 2711P-RDK7C is a factory-hardened keypad and LED display replacement module engineered for the PanelView Plus 6 700 series human-machine interface terminals. Designed and manufactured by Rockwell Automation to meet the rigorous demands of continuous industrial operation, this module delivers unwavering performance in environments characterized by elevated temperatures, high humidity, airborne particulates, mechanical vibration, and electromagnetic interference. Whether deployed on a petrochemical processing line, a mining conveyor control station, or a high-voltage power distribution switchgear panel, the 2711P-RDK7C maintains operator interface integrity where lesser components fail.

Industrial facilities cannot afford unplanned downtime. The 2711P-RDK7C is engineered with sealed membrane keypad technology and a ruggedized LED backlight assembly that resists ingress from dust and moisture, making it suitable for NEMA 4/4X and IP65-rated enclosure installations. Its robust construction tolerates the shock and vibration profiles common to heavy manufacturing, metal stamping, and continuous casting environments. The module integrates seamlessly with the PanelView Plus 6 700 terminal chassis, restoring full operator control functionality without requiring panel rewiring or software reconfiguration — a critical advantage during emergency maintenance windows on live production lines.

Rugged Specifications Table

Comprehensive Protection Solutions

The 2711P-RDK7C does not operate in isolation — it is one critical node within a broader Rockwell Automation control architecture. In a typical PanelView Plus 6 installation, the HMI terminal communicates over EtherNet/IP with a ControlLogix or CompactLogix PLC, such as the 1756-L73 ControlLogix controller or the 1769-L33ER CompactLogix processor, which execute the ladder logic and function block programs governing machine behavior. The display module surfaces real-time process data, alarm states, and operator prompts generated by these controllers, making its reliability inseparable from overall system uptime.

On the I/O side, digital and analog signals from field instruments are aggregated through 1756-IB16 digital input modules and 1756-OF8 analog output modules housed in the same ControlLogix chassis. These modules feed process variables — temperature, pressure, flow rate, motor speed — directly to the HMI screen that the 2711P-RDK7C keypad and display assembly presents to the operator. A failed display module blinds the operator to these critical readings, underscoring the importance of maintaining certified spare units on-site.

Power integrity is equally essential. The PanelView Plus 6 terminal and its associated control cabinet components are typically powered through a 1606-XLP72E industrial power supply or equivalent Allen-Bradley 24 VDC regulated supply, which provides stable, noise-filtered DC power even when upstream AC mains fluctuate due to large motor starts or grid instability. Surge and transient protection is further reinforced by 1492-SPM series surge protective devices installed at the panel entry point.

Communication reliability between the HMI and the PLC backbone is maintained through managed industrial Ethernet switches such as the Stratix 5700 series, which support IGMP snooping, QoS prioritization, and ring topology redundancy — features that prevent EtherNet/IP packet loss in electrically noisy environments. Where legacy serial communication is required, 1761-NET-AIC Advanced Interface Converters bridge DH-485 and RS-232 protocols to the modern EtherNet/IP network without signal degradation.

Safety-rated systems in the same cabinet may include GuardLogix 1756-L71S safety controllers and 440C-CR30 safety relay modules, which enforce SIL 2 / PLd safety functions such as emergency stop, light curtain monitoring, and two-hand control. The 2711P-RDK7C HMI module can display safety status and acknowledge alarms generated by these safety devices, integrating operator awareness into the safety loop without requiring a separate dedicated safety HMI panel.

Application in Critical Infrastructure

In upstream oil and gas facilities, the 2711P-RDK7C is deployed at wellhead control panels and compressor station HMI stations where operators monitor separator pressure, gas flow rates, and emergency shutdown valve positions. The module’s IP65 front-face sealing prevents hydrocarbon vapors and water ingress from compromising the keypad membrane, while its wide operating temperature range accommodates both arctic field installations and desert processing plants.

In underground mining operations, the module is installed in explosion-proof enclosures at conveyor drive control stations and ventilation fan panels. Mechanical vibration from blasting operations and continuous haulage equipment subjects the display assembly to sustained shock loads; the 2711P-RDK7C’s ruggedized construction and vibration-rated mounting interface maintain display legibility and keypad responsiveness under these conditions.

Power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — rely on PanelView Plus 6 terminals for turbine governor control, boiler management, and switchgear interlocking. The 2711P-RDK7C replacement module enables rapid restoration of HMI functionality following display failure, minimizing the risk of operating critical generation equipment without a functional operator interface. Water treatment and wastewater facilities similarly depend on these terminals for SCADA-integrated pump station control, chemical dosing management, and effluent monitoring, where continuous 24/7 operation demands proven spare-part availability.

In steel mills and aluminum smelters, the module withstands radiant heat from furnaces, electromagnetic interference from high-current bus bars, and airborne metallic particulates — conditions that rapidly degrade consumer-grade electronics but fall within the design envelope of the Allen-Bradley PanelView Plus 6 platform.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal industrial operating conditions from the date of shipment. If the 2711P-RDK7C module fails within the warranty period due to a covered defect, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault. Return shipping instructions and an RMA number will be issued within one business day.

Q2: How is each unit tested before shipment?
Every 2711P-RDK7C module undergoes functional verification prior to dispatch. Testing confirms keypad membrane continuity across all keys, LED backlight illumination uniformity, and connector pin integrity. Units that do not pass all test criteria are quarantined and not shipped. A test record is retained for traceability. Customers requiring a copy of the test report may request one at the time of order.

Q3: Is the 2711P-RDK7C compatible with all PanelView Plus 6 700 terminal variants?
The 2711P-RDK7C is the OEM-specified keypad and display replacement module for PanelView Plus 6 700 series terminals, including the 2711P-T7C4A8, 2711P-T7C4D8, 2711P-T7C5A8, and 2711P-T7C5D8 models. It is not cross-compatible with PanelView Plus 6 400, 600, 1000, 1250, or 1500 series terminals, nor with the earlier PanelView Plus (non-6) platform. If you are uncertain of your terminal model, provide the full catalog number from the terminal nameplate and our technical team will confirm compatibility before shipment.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
TOPNLMS maintains dedicated stock of the 2711P-RDK7C and other PanelView Plus 6 replacement modules to support customers with multi-site maintenance contracts and scheduled preventive replacement programs. Blanket purchase orders and reserved stock arrangements are available for customers requiring guaranteed availability over 12–36 month horizons. Contact our sales team to discuss volume pricing and supply assurance agreements tailored to your facility’s maintenance schedule.
