Allen-Bradley 2711P-RC3 Original Industrial Spare PanelView Plus Compatible

Product Overview

Allen-Bradley 2711P-RC3 Original Industrial Spare PanelView Plus Compatible: System Stability & Maintenance Value

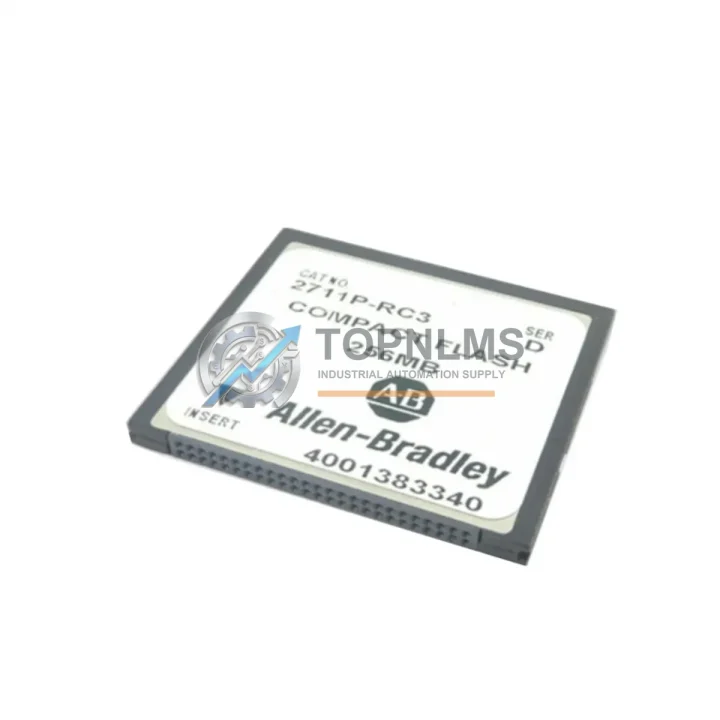

The Allen-Bradley 2711P-RC3 is an original external CompactFlash (CF) storage card designed for the PanelView Plus family of Human-Machine Interface (HMI) terminals. In industrial environments where uptime is non-negotiable, this component plays a critical role in preserving operator interface data, application programs, alarm histories, and runtime configurations. Whether you are managing a food processing line, an automotive assembly cell, a water treatment facility, or a discrete manufacturing plant running on Rockwell Automation architecture, the 2711P-RC3 is a foundational spare that belongs in every maintenance stockroom.

Sourced as an original Allen-Bradley component, the 2711P-RC3 is fully compatible with PanelView Plus 6, PanelView Plus 7 Standard, and earlier PanelView Plus 1000/1250/1500 series terminals. Its plug-and-play design allows maintenance engineers to restore a failed or corrupted HMI storage medium within minutes, dramatically reducing mean time to repair (MTTR) and protecting production schedules from extended unplanned downtime.

Critical Technical Specs

Preventive Maintenance Strategy

A proactive maintenance program for PanelView Plus HMI systems extends well beyond the storage card itself. When scheduling a planned inspection or responding to an unplanned shutdown, maintenance teams should treat the 2711P-RC3 replacement as part of a broader cabinet health check. The HMI terminal is the operator’s window into the entire control system, and its reliability depends on the integrity of every connected component.

During a PanelView Plus service interval, it is best practice to simultaneously inspect the 2711P-RP8A or 2711P-RP9 logic module, which houses the processor and memory for the terminal — a degraded logic module is often the root cause of repeated CF card corruption. Check the 2711P-T10C4D8 or equivalent PanelView Plus display assembly for backlight wear and touchscreen calibration drift, as display failures frequently accompany storage media issues in aging HMI units.

The power supply feeding the HMI cabinet deserves equal attention. Voltage fluctuations are a leading cause of CompactFlash data corruption. Verify the 1606-XLP power supply output is stable and within specification. If the PanelView Plus is integrated into a larger control panel alongside an Allen-Bradley ControlLogix or CompactLogix PLC (such as a 1756-L71 or 1769-L33ER), inspect the 1756-EN2T EtherNet/IP communication module and associated Ethernet patch cables for continuity and connector integrity — communication faults between the PLC and HMI are frequently misdiagnosed as HMI storage failures.

For systems using DeviceNet or ControlNet topologies, check the 1756-DNB DeviceNet Bridge module and associated trunk cable termination resistors. I/O modules such as the 1756-IB16 digital input module and 1756-OB16E digital output module should be inspected for blown fuses, loose terminal screws, and LED fault indicators. Terminal blocks and 1492-W4 wiring duct connections within the same cabinet should be torqued to specification to prevent intermittent signal faults that generate nuisance alarms logged to the HMI storage card.

If the facility operates multiple PanelView Plus terminals across production zones, maintaining a minimum of two 2711P-RC3 cards per site as cold-standby spares is strongly recommended. Pair this with a documented backup schedule using FactoryTalk View ME software to export application images to a network share, ensuring that a replacement card can be programmed and installed within a single shift window.

Strategic Replacement Solutions

The 2711P-RC3 is the direct OEM replacement for CompactFlash storage in all PanelView Plus terminals that feature an external CF slot. Unlike third-party industrial CF cards, the Allen-Bradley original part is validated against Rockwell Automation’s firmware stack, eliminating compatibility risks that can arise from non-certified media — particularly important in FDA-regulated, ISO-certified, or safety-instrumented environments where component traceability is audited.

For facilities managing legacy PanelView Plus 550 or PanelView Plus 600 terminals (2711P-B6C5A, 2711P-B6C8A series), the 2711P-RC3 provides a direct storage upgrade path without requiring any firmware modification or hardware adaptation. This makes it an ideal solution for extending the operational life of older HMI installations where a full terminal replacement would require costly FactoryTalk View ME application re-engineering and operator retraining.

When a PanelView Plus terminal fails to boot or displays a “No Application Found” error, the 2711P-RC3 is the first-line replacement component. Swapping the CF card with a pre-programmed spare restores full HMI functionality in under five minutes, compared to hours or days required for a full terminal RMA process. This rapid-swap capability is the core value proposition for maintenance managers operating under strict OEE (Overall Equipment Effectiveness) targets.

For sites transitioning toward PanelView Plus 7 Performance or PanelView 5000 series terminals, the 2711P-RC3 remains relevant as a transitional spare during phased upgrade programs, ensuring that legacy lines remain operational while new HMI infrastructure is commissioned in parallel.

Support FAQ

Q1: Is the 2711P-RC3 compatible with all PanelView Plus terminal models?
The 2711P-RC3 is compatible with PanelView Plus 6 (all 2711P-T and 2711P-B series with external CF slot), PanelView Plus 7 Standard, and earlier PanelView Plus 1000, 1250, and 1500 series terminals. It is not designed for PanelView Plus 7 Performance or PanelView 5000 series, which use internal eMMC storage. Always verify your terminal’s catalog number before ordering.

Q2: What pre-shipment testing is performed on the 2711P-RC3?
Each unit undergoes functional verification including read/write integrity testing and physical inspection prior to dispatch. Units are shipped in anti-static packaging with individual serial tracking. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q3: How should I manage 2711P-RC3 inventory for a multi-site facility?
For facilities with 5 or more PanelView Plus terminals, we recommend maintaining a minimum 2:1 spare ratio (two spare cards per five terminals) as cold-standby inventory. Pair physical spares with a digital backup library of all HMI application images stored on a network server, updated after every application change. This dual strategy ensures both hardware and software recovery within a single maintenance shift.

Q4: Can the 2711P-RC3 be used to transfer application programs between terminals?
Yes. The 2711P-RC3 can be used as a portable application transfer medium between compatible PanelView Plus terminals of the same series and firmware version. Load the application image onto the CF card using FactoryTalk View ME Studio, insert into the target terminal, and follow the on-screen restore procedure. Verify firmware version compatibility between source and target terminals before transfer to avoid application load errors.
