Allen-Bradley 2711P-K4M5D Ruggedized HMI for Harsh Environments

Product Overview

Allen-Bradley 2711P-K4M5D Ruggedized HMI Terminal: Industrial Resilience for Harsh Environments

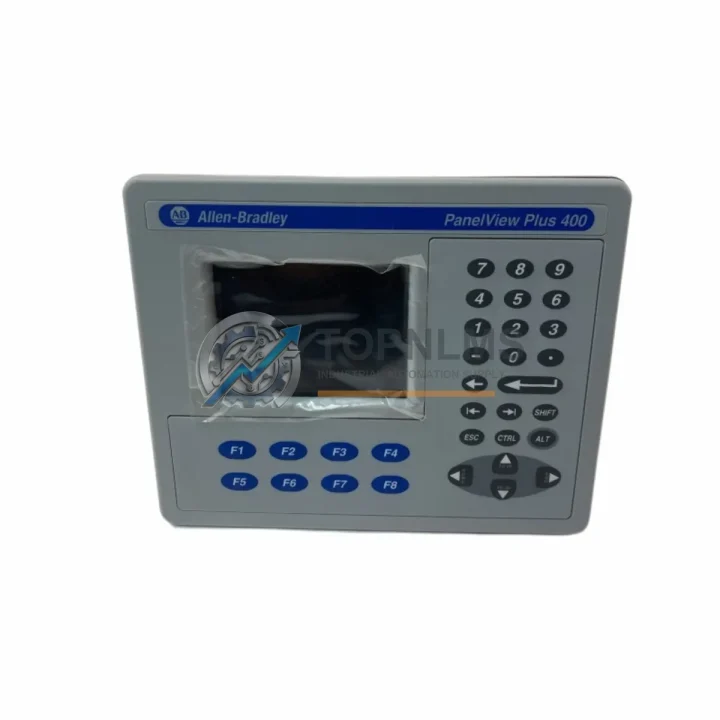

The Allen-Bradley 2711P-K4M5D PanelView Plus 400 is a compact, ruggedized human-machine interface (HMI) terminal engineered by Rockwell Automation to deliver reliable operator control in the most demanding industrial environments. Designed for continuous operation under conditions of high ambient temperature, elevated humidity, airborne particulate contamination, mechanical vibration, and electromagnetic interference, this grayscale keypad HMI is a proven solution for plant-floor applications where uptime is non-negotiable. Its sealed front panel and robust enclosure construction make it equally suitable for open-air installations and enclosed control cabinet deployments across a wide range of heavy industries.

The 2711P-K4M5D integrates seamlessly into Rockwell Automation’s FactoryTalk View ME software environment, enabling engineers to develop, deploy, and maintain operator interface applications with minimal configuration overhead. The unit communicates natively over EtherNet/IP and DH-485 protocols, allowing direct connectivity to Allen-Bradley ControlLogix, CompactLogix, MicroLogix, and SLC 500 series PLCs without additional protocol converters or gateway hardware. This tight system integration reduces wiring complexity inside the control cabinet and shortens commissioning time on new installations.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control architectures, the 2711P-K4M5D does not operate in isolation. It functions as the operator-facing layer of a broader automation system that must remain cohesive and fault-tolerant under continuous production pressure. On the controller side, it pairs directly with Allen-Bradley ControlLogix 1756 series processor modules and CompactLogix 1769 series controllers, which handle the real-time logic execution that the HMI visualizes and commands. For distributed I/O, the system typically incorporates 1734 POINT I/O modules or 1756 ControlLogix I/O modules, providing the digital and analog signal interfaces that connect field instruments to the control layer.

Power integrity is critical in harsh environments where voltage fluctuations and transient spikes are common. The 2711P-K4M5D is typically powered through Allen-Bradley 1606 series industrial power supplies, which provide regulated 24 VDC output with built-in surge protection and wide-range AC input tolerance. For installations in areas with significant electromagnetic interference — such as near variable frequency drives (VFDs) or large motor starters — proper grounding of the control cabinet and the use of shielded Ethernet cables are essential to maintain signal integrity on the EtherNet/IP network connecting the HMI to the controller.

Safety-critical installations may also incorporate Allen-Bradley GuardLogix safety controllers alongside the standard ControlLogix chassis, enabling the HMI to display safety status and allow authorized operators to acknowledge safety faults without requiring a separate dedicated safety panel. Communication between nodes on the plant network is managed through Stratix 5700 or Stratix 2000 series managed Ethernet switches, which support Device Level Ring (DLR) topology for network redundancy — a key consideration in continuous-process industries where a single network failure cannot be permitted to halt production. Terminal blocks and wiring duct within the control cabinet, such as those from the Allen-Bradley 1492 series, complete the physical infrastructure that supports reliable long-term operation of the entire panel assembly.

Application in Critical Infrastructure

The 2711P-K4M5D has established a strong track record across critical infrastructure sectors where operator interface reliability directly affects process safety and production continuity. In upstream and midstream oil and gas facilities, this HMI terminal is deployed on wellhead control panels, pipeline SCADA outstations, and compressor station control cabinets, where it must withstand wide ambient temperature swings, hydrocarbon-laden atmospheres, and persistent mechanical vibration from rotating equipment. Its NEMA 4X-rated front panel prevents ingress of water jets and corrosive cleaning agents, making it suitable for washdown environments in food-grade and chemical processing plants as well.

In underground and surface mining operations, the 2711P-K4M5D controls conveyor drive systems, ventilation fan starters, and dewatering pump stations — applications characterized by heavy dust loading, high humidity, and frequent voltage disturbances from large motor switching events. The unit’s EMC-compliant design ensures that nearby variable frequency drives and soft starters do not corrupt the HMI’s display or communication link to the PLC. Power generation facilities, including coal-fired, gas turbine, and hydroelectric plants, rely on this terminal for boiler management, turbine control, and auxiliary system monitoring, where continuous 24/7 operation over multi-year maintenance cycles is the baseline expectation.

Water and wastewater treatment authorities deploy the 2711P-K4M5D on pump station control panels and chemical dosing skids, where the combination of high ambient humidity, chemical vapors, and outdoor enclosure requirements demands a sealed, corrosion-resistant operator interface. In metallurgical and steel mill environments, the terminal manages rolling mill auxiliary drives, furnace temperature control loops, and material handling conveyors — all operating in the presence of intense radiated heat, metallic dust, and strong electromagnetic fields from induction heating equipment. Across all these sectors, the 2711P-K4M5D’s proven compatibility with the broader Rockwell Automation ecosystem ensures that spare parts, replacement units, and technical support remain accessible throughout the full operational lifecycle of the installation.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every 2711P-K4M5D unit shipped from TOPNLMS carries a 12-month warranty covering manufacturing defects, functional failures, and component-level faults under normal operating conditions. Prior to dispatch, each unit undergoes a multi-point functional inspection including power-on verification, display integrity check, keypad response testing, and communication port validation. A warranty claim can be initiated by contacting [email protected] with the order reference and a description of the fault. Replacement or repair is processed within the agreed lead time, and return shipping logistics are coordinated by our technical team.

Q2: How is outgoing product quality verified before shipment?
All units are sourced from authorized distribution channels or verified surplus inventories and are subject to incoming inspection upon receipt at our facility. Before shipment, each 2711P-K4M5D is powered up and tested against its published functional specification. Units that do not pass inspection are quarantined and not offered for sale. Packaging is selected to protect against electrostatic discharge (ESD), mechanical shock, and moisture ingress during international transit.

Q3: Is the 2711P-K4M5D compatible with my existing ControlLogix or CompactLogix system?
Yes. The 2711P-K4M5D is fully compatible with Allen-Bradley ControlLogix (1756 series), CompactLogix (1769 series), MicroLogix (1100, 1400 series), and SLC 500 series controllers via EtherNet/IP or DH-485 communication. It is programmed and configured using FactoryTalk View ME software. If you are upgrading from an older PanelView Standard terminal, application migration tools within FactoryTalk View ME can assist with converting legacy screens. For compatibility questions specific to your system architecture, contact our technical team before ordering.

Q4: Can TOPNLMS support long-term or repeat supply of this model?
Yes. TOPNLMS maintains ongoing procurement relationships for Allen-Bradley PanelView Plus 400 series terminals, including the 2711P-K4M5D, to support customers with planned maintenance programs, capital spares strategies, and emergency replacement requirements. For customers managing multi-site installations or requiring scheduled deliveries, we offer reserved stock arrangements and priority fulfillment agreements. Contact [email protected] or call +86 18359293191 to discuss your supply continuity requirements.
