Allen-Bradley 2711P-B10C15A2/A Replacement for PanelView Plus

Product Overview

Allen-Bradley 2711P-B10C15A2/A Replacement for PanelView Plus 1000: Smooth Migration from Legacy HMI Systems

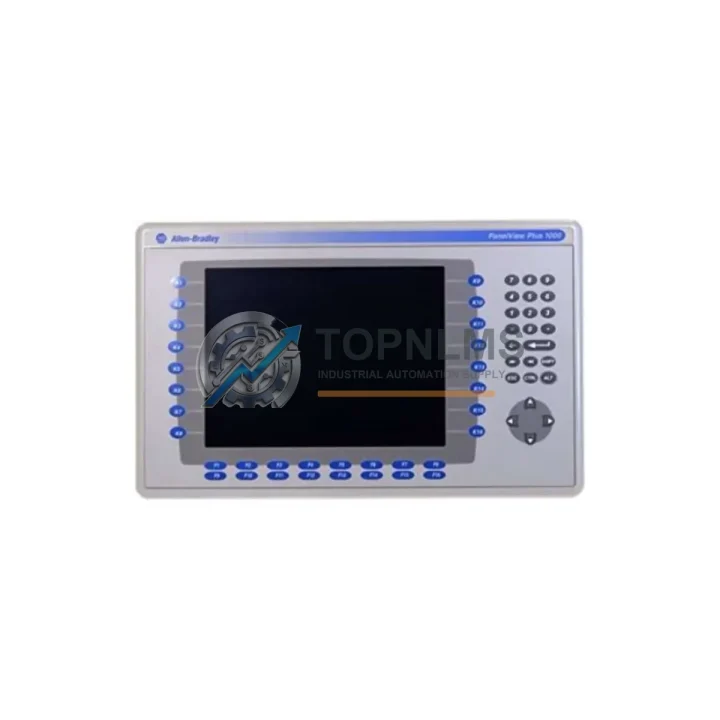

The Allen-Bradley 2711P-B10C15A2/A is a 10.4-inch color touch/keypad HMI terminal from the PanelView Plus 1000 series, designed for seamless integration into Rockwell Automation control architectures. As legacy operator panels age out of production support cycles, facilities running older PanelView 550, PanelView 900, or early PanelView Plus 6 units face increasing pressure to migrate to a supported, maintainable platform. This unit provides a validated, drop-in upgrade path that preserves existing wiring infrastructure, communication topology, and FactoryTalk View ME application logic with minimal re-engineering effort.

For plants currently operating on Allen-Bradley MicroLogix 1400, CompactLogix L3x, or ControlLogix L6x/L7x controllers, the 2711P-B10C15A2/A connects natively over EtherNet/IP and DH-485, eliminating the need for protocol converters or gateway devices. Where legacy systems relied on RS-232 or DH+ communication, the transition to EtherNet/IP via this terminal significantly reduces cabling complexity and enables remote diagnostics through Studio 5000 and FactoryTalk AssetCentre.

Physical installation is straightforward: the panel cutout dimensions align with the PanelView Plus 600/1000 family standard, meaning existing control cabinet openings require no modification. The unit mounts flush with standard 24 VDC panel power, compatible with existing Allen-Bradley 1606-XLP power supplies already deployed in most ControlLogix and CompactLogix cabinets. Gasket sealing meets NEMA 4/4X and IP65 ratings, suitable for wash-down and dusty industrial environments.

Application migration from a PanelView 900 or PanelView Plus 6 is handled through FactoryTalk View Studio ME. Existing .mer runtime files can be converted and re-compiled with minimal screen layout adjustment. Tag database imports from RSLogix 5000 or Studio 5000 projects map directly, preserving alarm configurations, trend displays, and recipe management structures. This dramatically reduces commissioning time compared to a full HMI platform change.

In multi-axis drive systems, this HMI is commonly paired with Allen-Bradley PowerFlex 525 and PowerFlex 755 drives communicating over EtherNet/IP, providing operators with real-time speed reference, fault diagnostics, and parameter adjustment from a single operator interface. Integration with 1734 POINT I/O and 1756 ControlLogix I/O modules is native, requiring no additional configuration beyond standard tag mapping in the FactoryTalk project.

For facilities upgrading from standalone relay logic or older SLC 500 systems, the 2711P-B10C15A2/A supports DF1 Full-Duplex and DH-485 protocols, allowing phased migration where the new HMI is deployed ahead of the controller upgrade. This approach minimizes production downtime by decoupling the operator interface replacement from the PLC changeover schedule.

Communication module compatibility extends to 1761-NET-ENI Ethernet interface modules for legacy MicroLogix platforms, and 1747-AENTR EtherNet/IP adapters for SLC 500 racks, ensuring the HMI can serve as a bridge display during multi-phase retrofit projects. Signal isolation requirements between the HMI and field devices are typically handled by Phoenix Contact or Weidmuller signal isolators already present in the cabinet, with no additional isolation hardware required at the HMI terminal itself.

Procurement teams will note that this unit ships fully tested and verified against Rockwell Automation factory specifications. Each unit undergoes power-on functional verification, display calibration check, and communication port testing prior to dispatch. Stock is maintained at our Xiamen warehouse for same-week international shipment via DHL Express or FedEx International Priority, with full export documentation including commercial invoice, packing list, and certificate of origin.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete PanelView Plus 1000 migration typically involves more than the HMI terminal itself. During the retrofit process, engineers commonly address the Allen-Bradley 1756-L73 ControlLogix controller as the primary logic engine, paired with 1756-EN2T EtherNet/IP communication modules to establish the network backbone. On the I/O side, 1734-IB8 POINT I/O digital input modules and 1734-OB8 digital output modules handle field device interfacing, while 1756-IF8 analog input modules manage process variable signals from transmitters and sensors.

Power distribution within the control cabinet is typically managed by Allen-Bradley 1606-XLP95E power supplies, which provide stable 24 VDC to both the HMI and I/O subsystems. For drive integration, PowerFlex 525 AC drives with embedded EtherNet/IP ports connect directly to the same network segment as the 2711P-B10C15A2/A, enabling unified operator control from the HMI screen. Programming and commissioning require a 1784-U2DHP USB-to-DH+ interface cable for legacy controller access, alongside a standard Ethernet patch cable for Studio 5000 connectivity to the new ControlLogix platform.

Retrofit Guidance FAQ

Q: Can I reuse existing wiring from a PanelView 900 installation?
A: Yes. The 24 VDC power wiring and RS-232/DH-485 signal cables are fully reusable. Only the EtherNet/IP connection requires a new Cat5e/Cat6 cable run if upgrading the communication protocol.

Q: Will my existing FactoryTalk View ME application run without modification?
A: In most cases, .mer files compiled for PanelView Plus 6 or earlier PV+ 1000 units load directly. Minor resolution or font adjustments may be needed for screens originally designed for smaller displays.

Q: Is DH+ communication supported?
A: The 2711P-B10C15A2/A does not include a native DH+ port. A 1761-NET-AIC or 1784-PKTX interface is required for DH+ connectivity to legacy PLC-5 or SLC 500 systems.

Q: What is the physical installation clearance requirement?
A: Minimum 50mm clearance on all sides for ventilation. The unit is panel-mount only; no DIN rail option is available for this model.

Q: Can this HMI communicate with third-party PLCs?
A: FactoryTalk View ME supports OPC DA/UA drivers and Modbus TCP via third-party communication drivers, enabling limited interoperability with Siemens S7, Mitsubishi Q-series, and other platforms during phased migration projects.

Warranty Assurance

Every 2711P-B10C15A2/A unit supplied by TOPNLMS is covered by a 12-month replacement warranty from the date of shipment. Pre-shipment testing includes full power-on verification, display pixel inspection, touchscreen calibration, and communication port continuity checks. Units are packed in anti-static foam with original-style carton protection for international freight.

In the event of a warranty claim, TOPNLMS provides advance replacement dispatch within 3 business days upon fault confirmation, minimizing production downtime. Our technical support team is available via email at [email protected] or by phone at +86 18359293191 for pre-sales compatibility verification, installation guidance, and post-sales fault diagnosis.

Export documentation, including commercial invoice, packing list, HS code declaration, and certificate of origin, is provided with every international shipment. Payment terms, lead times, and volume pricing are available upon request for MRO procurement teams and system integrators.
