Allen-Bradley 2711-K6C1 Replacement for PanelView 600

Product Overview

Allen-Bradley 2711-K6C1 Replacement for PanelView 600: Seamless Transition & Legacy System Compatibility

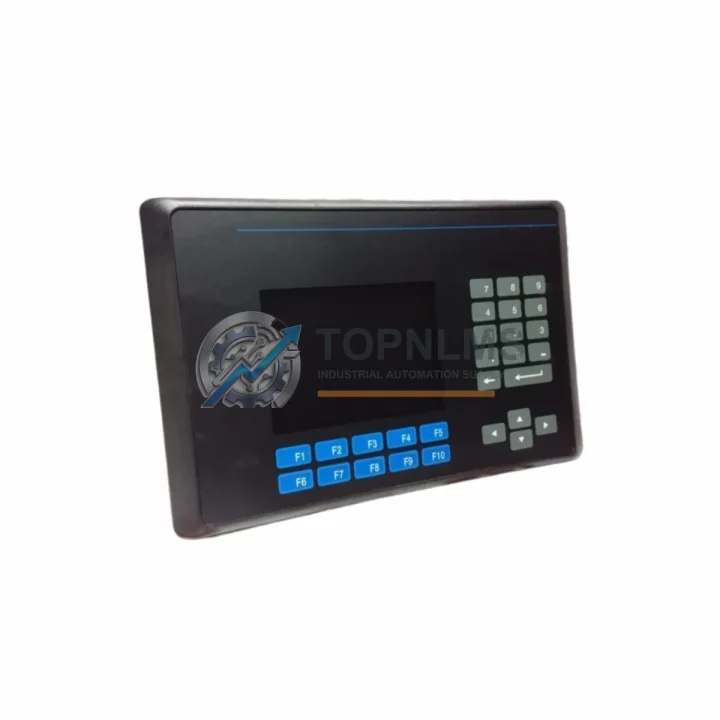

The Allen-Bradley 2711-K6C1 is a 6-inch color keypad operator terminal from the PanelView 600 series, manufactured by Rockwell Automation. As this model has reached end-of-life and is no longer in active production, many facilities running legacy Allen-Bradley PLC systems — including SLC 500, MicroLogix 1000, MicroLogix 1100, and PLC-5 platforms — are now facing urgent replacement decisions. TOPNLMS supplies tested, verified 2711-K6C1 units to support smooth migration and minimize unplanned downtime across manufacturing, water treatment, packaging, and process control environments.

The 2711-K6C1 communicates via DH-485 and RS-232 serial protocols, making it directly compatible with SLC 500 controllers and MicroLogix family PLCs without requiring protocol conversion hardware. When replacing a failed or aging 2711-K6C1, the physical panel cutout dimensions (approximately 192 mm × 141 mm) and the existing DH-485 cable infrastructure can typically be reused, significantly reducing retrofit labor. The terminal’s keypad-based interface and ladder logic tag mapping remain consistent with the original Rockwell PanelBuilder 32 programming environment, so existing application files can be reloaded with minimal modification.

For facilities transitioning from older operator interfaces such as the 2711-K5A2 or 2711-K5A5 (PanelView 550 series), the 2711-K6C1 represents a direct form-factor upgrade with enhanced color display capability while maintaining backward-compatible communication settings. Engineers migrating from the 2711-B6C1 (PanelView 600 with DH+ communication) should verify the communication module selection, as the K-series uses DH-485/RS-232 rather than DH+. In mixed-protocol control cabinets, a 1747-AIC link coupler or 1761-NET-AIC network interface converter may be required to bridge communication segments.

Power supply compatibility is a key consideration during replacement. The 2711-K6C1 operates on 24 VDC, consistent with the majority of Allen-Bradley panel power distribution schemes using 1606-XLP or 1606-XLS series power supplies. No additional power conditioning is required in standard installations. The terminal mounts flush to the control panel door and connects to the PLC network via the rear-panel communication port, preserving the original wiring harness in most retrofit scenarios.

When upgrading a complete control station, the 2711-K6C1 is commonly deployed alongside the 1747-L553 SLC 5/05 processor, 1746-IB16 digital input modules, 1746-OB16 digital output modules, and 1746-NI4 analog input modules within a 1746-A13 modular rack. This combination provides a fully integrated, field-proven control architecture suitable for conveyor systems, pump stations, and batch processing lines. For applications requiring expanded I/O, the 1747-SDN DeviceNet scanner module can be added to the same rack without affecting the HMI communication channel.

In facilities where the original 2711-K6C1 is being replaced as part of a broader modernization initiative — rather than a like-for-like swap — the PanelView Plus 600 (2711P-B6C20D) offers a migration path with FactoryTalk View ME software compatibility, Ethernet/IP connectivity, and a modern color touchscreen interface. However, for sites requiring immediate continuity with existing PanelBuilder 32 application files and DH-485 wiring, the 2711-K6C1 replacement unit from TOPNLMS provides the lowest-risk, fastest-return solution.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 2711-K6C1 replacement rarely involves the HMI terminal alone. In most field installations, the operator terminal is one component within a tightly integrated control architecture. During the replacement or modernization process, engineers frequently need to address adjacent components to ensure system continuity.

The communication backbone connecting the 2711-K6C1 to the SLC 500 controller typically relies on a 1747-AIC isolated link coupler or a 1761-NET-AIC network interface converter. These components manage the DH-485 network segment and must be verified for integrity before commissioning the replacement terminal. In installations where the SLC 5/03 or SLC 5/04 processor (1747-L531 or 1747-L541) is also approaching end-of-life, a coordinated replacement of both the HMI and the processor module reduces future maintenance risk and avoids a second planned outage.

For I/O expansion or signal conditioning requirements, the 1746-IB32 32-point digital input module and 1746-OB32 32-point digital output module are commonly installed in the same 1746-A10 or 1746-A13 rack as the SLC processor. Analog signal integrity can be maintained using the 1746-NI8 8-channel analog input module, which supports 4–20 mA and 0–10 VDC field signals without requiring external signal isolators in most applications.

Where the control cabinet also houses a variable frequency drive — such as a PowerFlex 40 (22B series) or PowerFlex 400 — the drive’s DeviceNet or RS-485 Modbus communication port can be integrated into the same control network monitored by the 2711-K6C1 replacement terminal, provided the SLC processor is equipped with a 1747-SDN scanner card. This eliminates the need for a separate drive keypad and centralizes operator control at the HMI panel.

Programming cable access is also a practical consideration during commissioning. The 1747-UIC USB-to-DH-485 interface cable allows a laptop running RSLogix 500 or Studio 5000 Logix Designer to connect directly to the SLC network for program upload, verification, and tag mapping confirmation — all without interrupting the HMI communication channel. Having this cable on-site during the replacement procedure significantly reduces commissioning time.

Retrofit Guidance FAQ

Q: Can I reuse the existing DH-485 cable when replacing the 2711-K6C1?
A: Yes. The DH-485 wiring (typically Belden 3106A or equivalent shielded twisted pair) and the existing RJ45 or terminal block connections at the rear of the panel can be reused directly. Verify cable continuity and shield grounding before powering up the replacement unit.

Q: Do I need to reprogram the replacement terminal?
A: No reprogramming is required if you have a backup of the original PanelBuilder 32 application file (.pba). The file can be downloaded to the replacement 2711-K6C1 via the RS-232 programming port using a standard 1747-CP3 or compatible serial cable. If no backup exists, TOPNLMS recommends uploading the application from the original terminal before removal, if the unit is still partially functional.

Q: Is the 2711-K6C1 compatible with MicroLogix 1400?
A: Yes. The MicroLogix 1400 (1766-L32BWA and related variants) supports DH-485 communication via its built-in Channel 0 port, making it fully compatible with the 2711-K6C1 without any additional communication hardware.

Q: What if my panel cutout is sized for a PanelView 550?
A: The PanelView 600 series has a slightly larger panel cutout than the PanelView 550. A cutout adapter plate or minor panel modification will be required. TOPNLMS can advise on dimensional specifications upon request.

Q: Can the 2711-K6C1 communicate with a ControlLogix or CompactLogix controller?
A: Direct DH-485 communication with ControlLogix or CompactLogix is not supported natively. A 1761-NET-AIC or 1747-AIC bridge, combined with a 1756-DHRIO or 1756-DH485 communication module in the ControlLogix chassis, can provide the necessary protocol bridging. For new installations with ControlLogix, upgrading to a PanelView Plus terminal with Ethernet/IP is the recommended long-term path.

Q: How is the unit tested before shipment?
A: Every 2711-K6C1 unit supplied by TOPNLMS undergoes power-on functional verification, display integrity check, keypad response test, and communication port continuity test prior to packaging. A test report is available upon request.

Warranty Assurance

All Allen-Bradley 2711-K6C1 units supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. This warranty covers functional defects, display failures, communication port faults, and keypad malfunctions under normal operating conditions. Units that fail within the warranty period are eligible for replacement or full refund at the buyer’s discretion, with return shipping coordinated by TOPNLMS.

Prior to dispatch, each unit is individually tested for power-on operation, display output, keypad functionality, and communication port integrity. Units that do not pass all test criteria are quarantined and not shipped. A pre-shipment inspection report can be provided for quality-critical procurement requirements.

TOPNLMS maintains stock of 2711-K6C1 and related PanelView 600 series components to support emergency replacement orders. Standard lead time for in-stock units is 3–5 business days for international air freight. Express shipment options (DHL, FedEx, UPS) are available for urgent downtime recovery situations. All units are packaged in anti-static protective packaging with foam cushioning to prevent transit damage.

For procurement inquiries, bulk pricing, or technical pre-sales support, contact the TOPNLMS team directly. We support OEM integrators, MRO procurement teams, and plant maintenance engineers with reliable sourcing of discontinued and hard-to-find Allen-Bradley components.
