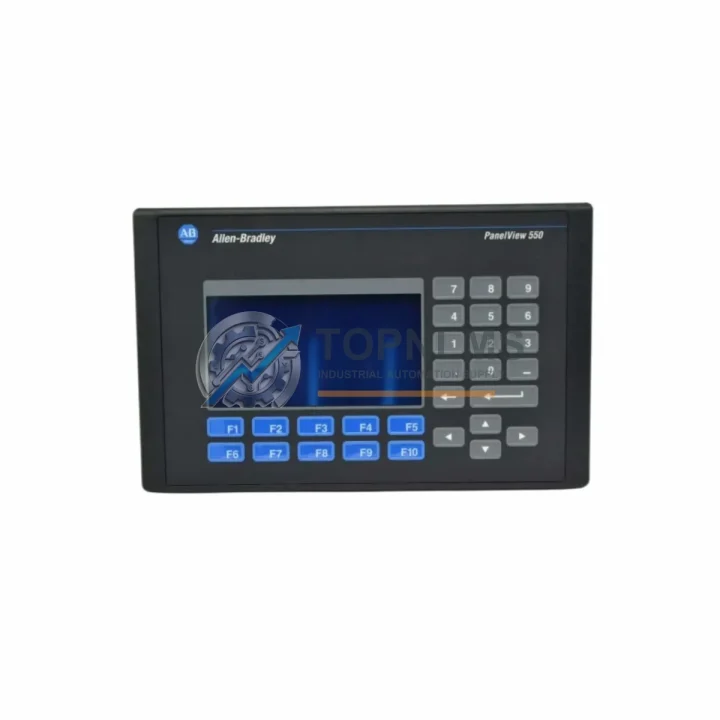

Allen-Bradley 2711-K5A5X Ruggedized HMI Module for Harsh Environments

Product Overview

Allen-Bradley 2711-K5A5X Ruggedized HMI Module for Harsh Environments

The Allen-Bradley 2711-K5A5X is a PanelView 550 keypad operator interface terminal engineered by Rockwell Automation to deliver dependable human-machine interaction in the most demanding industrial environments. Rated for continuous operation across wide temperature ranges, high-humidity zones, and locations subject to mechanical vibration and airborne particulates, the 2711-K5A5X is purpose-built for facilities where downtime is not an option. Its sealed keypad membrane and robust enclosure construction provide reliable protection against dust ingress and moisture, making it a trusted front-end display and control solution for process-critical applications across oil and gas, mining, power generation, water treatment, metallurgy, and heavy manufacturing.

Designed to integrate seamlessly within Rockwell Automation’s ControlLogix and SLC 500 control architectures, the 2711-K5A5X communicates over DH-485 and RS-232 serial links, enabling straightforward connectivity to Allen-Bradley PLCs such as the SLC 5/03, SLC 5/04, and MicroLogix 1500 series. Its 5.5-inch monochrome display with 32-character × 16-line text capability provides clear operator visibility even under ambient light interference common in outdoor substations and open-process floors. The terminal supports up to 1,000 alarm messages and 500 data display screens, giving operators the situational awareness needed to respond rapidly to process deviations before they escalate into safety incidents.

In high-vibration environments such as compressor stations, rolling mills, and heavy press lines, the 2711-K5A5X’s solid-state keypad design eliminates the mechanical wear points that plague touchscreen alternatives, significantly extending mean time between failures. When paired with Allen-Bradley 1746 SLC I/O modules, 1756 ControlLogix I/O cards, or 1769 CompactLogix expansion modules, the terminal forms a cohesive, field-proven control front-end that plant engineers can rely on for years of uninterrupted service. Its compatibility with the 1747-AIC isolated link coupler further enhances noise immunity on long DH-485 cable runs through electrically noisy environments where variable frequency drives, large motor starters, and high-current bus bars generate significant electromagnetic interference.

Rugged Specifications Table

Comprehensive Protection Solutions

The 2711-K5A5X does not operate in isolation — it is the operator-facing node of a broader, layered control and protection architecture. In a typical control cabinet deployment, the terminal interfaces with Allen-Bradley 1746-OB16 digital output modules and 1746-IB16 digital input modules to relay real-time process status to field operators. For applications requiring analog process variable monitoring, the 1746-NI4 analog input module feeds live sensor data — temperature, pressure, flow — directly to the PanelView 550 display, enabling operators to detect out-of-range conditions at a glance.

Power integrity is foundational to HMI reliability. The 2711-K5A5X is typically powered from a 1606-XLP72E Allen-Bradley switch-mode power supply, which provides regulated 24 VDC with built-in overvoltage and short-circuit protection, ensuring the terminal remains operational even during upstream power fluctuations common in heavy industrial facilities. For installations in hazardous classified areas or where galvanic isolation is required between the control network and field devices, the 1747-AIC isolated link coupler is the recommended interface, suppressing ground loops and transient spikes that could otherwise corrupt DH-485 communications.

Safety-critical lines benefit from the addition of Allen-Bradley 440R GuardMaster safety relays, which monitor E-stop circuits and light curtain inputs independently of the main PLC scan cycle. When the 2711-K5A5X displays a safety alarm, operators can act on it knowing the underlying safety relay layer provides a hardware-enforced response regardless of PLC program state. For facilities running Profibus DP or DeviceNet alongside DH-485 segments, the 1747-SDN DeviceNet scanner module bridges the two networks, allowing the PanelView 550 to present consolidated status from distributed I/O nodes across the plant floor.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 2711-K5A5X is deployed at wellhead control panels and compressor station skids where operators must monitor and adjust process parameters — suction pressure, discharge temperature, separator levels — without relying on fragile touchscreen interfaces that degrade under hydrocarbon mist and UV exposure. Its sealed keypad survives repeated cleaning with industrial solvents and maintains tactile responsiveness after years of gloved-hand operation in cold-weather field enclosures.

Mining and mineral processing facilities rely on the PanelView 550 series at crusher control stations, conveyor drive panels, and flotation cell operator consoles. The terminal’s vibration tolerance — validated against IEC 68-2-6 sinusoidal profiles — ensures display integrity and keypad registration accuracy even when mounted directly on vibrating structural steel adjacent to jaw crushers or ball mills. In coal-fired and combined-cycle power plants, the 2711-K5A5X serves as the local operator interface for boiler feed pump control panels and auxiliary equipment skids, where its DH-485 link to SLC 500 PLCs provides deterministic scan-cycle communication unaffected by the high-frequency electrical noise generated by large generator excitation systems.

Water and wastewater treatment authorities deploy the 2711-K5A5X at lift station control panels and chemical dosing skids, where the terminal’s NEMA 4 / IP65 panel-mount rating protects internal electronics from wash-down water jets and chlorine-laden humid air. Metallurgical plants — including steel rolling mills and aluminum smelters — use the terminal at reheat furnace operator stations and casting line control desks, where ambient temperatures near the terminal enclosure can approach the upper limits of the operating range and electromagnetic interference from large induction furnaces demands robust noise immunity.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 2711-K5A5X?
Every 2711-K5A5X shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will arrange repair, replacement, or credit — whichever best suits your project timeline. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q2: How is each unit tested before shipment?
All 2711-K5A5X units undergo a pre-shipment functional verification that includes power-on self-test confirmation, keypad actuation check across all keys, display pixel integrity inspection, and communication port continuity verification. Units that do not pass all checkpoints are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: Is the 2711-K5A5X compatible with my existing SLC 500 or ControlLogix system?
Yes. The 2711-K5A5X communicates natively over DH-485 and RS-232, which are supported by the full SLC 500 family (SLC 5/02 through SLC 5/05) and by ControlLogix systems via the 1761-NET-AIC or 1747-AIC interface modules. PanelView 550 application files created in RSView32 or PanelBuilder 32 software are directly compatible. TOPNLMS technical staff can advise on cable pinouts, baud rate configuration, and node addressing if required.

Q4: Can TOPNLMS support long-term or repeat supply of the 2711-K5A5X?
Yes. TOPNLMS maintains standing inventory of PanelView 550 series terminals and associated Allen-Bradley spare parts to support planned maintenance programs, emergency breakdowns, and capital project builds. For customers with recurring demand, blanket purchase order arrangements and reserved stock agreements are available. Contact our team to discuss volume pricing and lead-time commitments tailored to your maintenance schedule.
