Allen-Bradley 2711-K3A2L1 Replacement for PanelView 300: Seamless Transition to Modern HMI Control

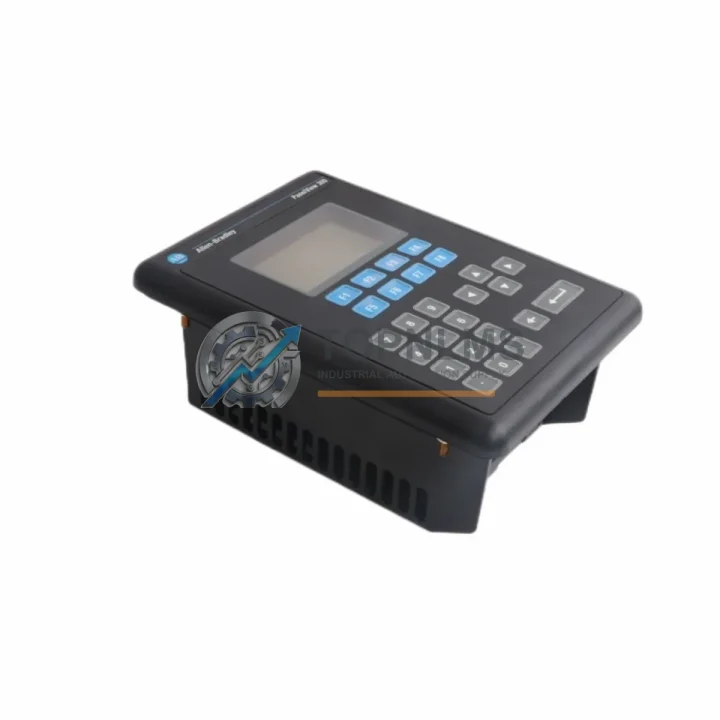

The Allen-Bradley 2711-K3A2L1 is a PanelView 300 Keypad HMI terminal from Rockwell Automation, widely deployed across discrete manufacturing, packaging lines, conveyor systems, and process control panels throughout the 1990s and early 2000s. As this model has reached end-of-life and is no longer manufactured, facilities running legacy SLC 500, MicroLogix 1000, or MicroLogix 1100 PLC platforms face increasing pressure to source reliable replacement units or execute a controlled migration to a supported HMI platform.

TOPNLMS supplies the 2711-K3A2L1 as a direct replacement unit — tested, verified, and ready for installation — while also supporting customers who require a structured upgrade path to a compatible modern terminal. Whether your priority is a like-for-like swap to minimize downtime or a phased migration that preserves existing ladder logic and communication wiring, our technical team can support both approaches.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 2711-K3A2L1 replacement rarely involves only the HMI terminal itself. In practice, the migration touches several interconnected components within the control cabinet and the broader automation architecture. Understanding these dependencies helps maintenance engineers and procurement teams plan accurately and avoid secondary delays.

For facilities running SLC 500 racks, the HMI communicates over DH-485 using a dedicated port on the SLC 5/03 or SLC 5/04 processor. When replacing the 2711-K3A2L1, the existing 1747-AIC Advanced Interface Converter or 1761-NET-AIC network interface converter typically remains in service without modification, provided the replacement terminal supports the same DH-485 protocol. This is a key advantage of a direct like-for-like swap: the communication wiring, node addressing, and network topology require no changes.

Where customers are upgrading to a more capable terminal — for example, moving to a PanelView Component C300 or a PanelView Plus 6 — the communication interface shifts from DH-485 to EtherNet/IP in many configurations. This requires verifying that the connected MicroLogix 1100 or CompactLogix L23E processor has an active Ethernet port and that the plant network can accommodate the additional node. In these cases, a 1761-NET-ENI Serial-to-Ethernet interface module is sometimes used as a bridge to retain the existing SLC 500 or MicroLogix controller without a full PLC replacement.

Power distribution within the control cabinet also warrants review. The 2711-K3A2L1 draws 24 VDC from the panel power supply — typically a 1606-XLP or equivalent 24 VDC DIN-rail power supply unit. When the replacement terminal has a similar power draw, no changes to the power supply or fusing are required. However, if the upgrade terminal includes a backlit display or additional I/O, the power budget should be recalculated before commissioning.

For applications where the PanelView 300 was used to control or monitor discrete I/O — such as conveyor start/stop, alarm acknowledgment, or setpoint entry — the tag database and screen application must be transferred or rebuilt. Direct replacement units accept the original PanelBuilder 1400e application file downloaded via the 2711-NC13 programming cable, which connects to the terminal’s serial port. Customers upgrading to a newer platform will need to recreate the application in PanelBuilder32 or Studio 5000 View Designer, mapping existing tags to the new controller’s data table addresses.

In multi-panel installations, it is common to find the 2711-K3A2L1 operating alongside other PanelView 300 variants such as the 2711-K3A5L1 (with RS-232 port) or the 2711-B5A8 (PanelView 550 with display). When replacing one terminal in a networked DH-485 segment, care must be taken to maintain correct node numbering and termination resistor placement to avoid communication errors on the remaining devices. The 1747-AIC module at each node should be inspected and confirmed functional as part of the replacement procedure.

For customers managing spare parts inventory across multiple sites, TOPNLMS can supply the 2711-K3A2L1 in single units or in small batch quantities. Each unit undergoes functional testing prior to shipment, and documentation including test records and a certificate of conformance is available upon request. Units are packaged in anti-static protective packaging suitable for international air freight or express courier delivery.

Retrofit Guidance FAQ

Q: Can I install the replacement 2711-K3A2L1 without modifying the existing wiring?
A: Yes. A direct replacement unit uses the same 24 VDC power connection and the same DH-485 communication port wiring. No rewiring is required. The terminal connector pinout is identical to the original.

Q: Do I need to reload the application program after replacing the terminal?
A: Yes. The application program is stored in the terminal’s internal memory and does not transfer automatically. You will need to download the original PanelBuilder 1400e application file to the replacement unit using the 2711-NC13 programming cable and a PC running PanelBuilder 1400e software.

Q: Is the 2711-K3A2L1 compatible with MicroLogix 1400 controllers?
A: The 2711-K3A2L1 communicates via DH-485. The MicroLogix 1400 supports DH-485 on Channel 0, so communication is possible. However, customers planning a long-term upgrade should consider migrating to a PanelView Component or PanelView Plus terminal to take advantage of the MicroLogix 1400’s EtherNet/IP capabilities.

Q: What is the panel cutout size for the 2711-K3A2L1?
A: The standard panel cutout dimensions are specified in the 2711-K3A2L1 installation instructions. For a direct replacement, the existing cutout is used without modification. Contact TOPNLMS for the exact dimensional drawing if required.

Q: Can TOPNLMS supply the 2711-NC13 programming cable together with the terminal?
A: Yes. The 2711-NC13 cable can be supplied as an accessory item. Please specify this requirement when placing your order.

Q: What communication protocol does the 2711-K3A2L1 use, and is it compatible with my existing network?
A: The 2711-K3A2L1 uses the DH-485 protocol (RS-485 physical layer). It is compatible with SLC 500 processors (5/01, 5/02, 5/03, 5/04) and MicroLogix 1000, 1100, and 1200 controllers that have a DH-485 port. It is not natively compatible with ControlNet or EtherNet/IP networks without an additional interface module.

Q: How long does shipping take from TOPNLMS?
A: Standard international express shipping from our Xiamen warehouse typically takes 3–7 business days depending on destination. Expedited options are available for urgent replacement requirements. Please contact us to confirm lead time for your specific location.

Warranty Assurance

Every Allen-Bradley 2711-K3A2L1 unit supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions consistent with the product’s published specifications.

Pre-shipment Testing: Each unit is functionally tested before dispatch. Testing includes power-on verification, communication port functionality check, and keypad input response confirmation. A test record is available upon request.

Replacement Support: In the event of a warranty claim, TOPNLMS will arrange for a replacement unit to be dispatched promptly. Our standard process targets replacement shipment within 3 business days of claim confirmation.

After-Sales Response: Our technical support team is available via email and phone to assist with installation questions, compatibility verification, and application download procedures. Response time for technical inquiries is typically within 24 hours on business days.

Procurement Assurance: TOPNLMS maintains stock of legacy Allen-Bradley HMI terminals and PLC components to support ongoing maintenance and emergency replacement requirements. We issue a commercial invoice, packing list, and certificate of conformance with every shipment to support customs clearance and internal procurement documentation requirements.
