Allen-Bradley 2711-K10C15L1 Replacement for PanelView 1000: Smooth Transition & Legacy System Compatibility

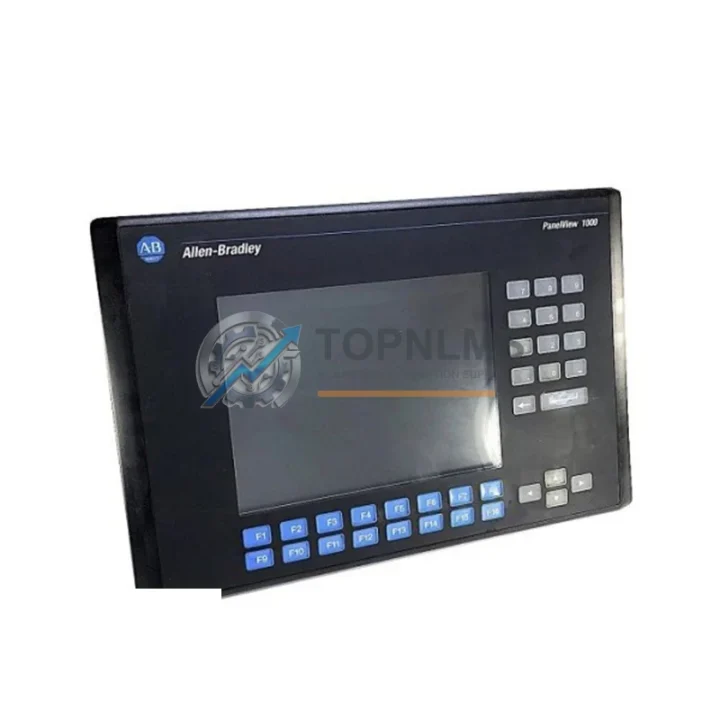

The Allen-Bradley 2711-K10C15L1 is a PanelView 1000 Color Keypad HMI terminal from Rockwell Automation, widely deployed across discrete manufacturing, process control, and utility automation systems throughout the 1990s and 2000s. As this model approaches or has reached end-of-life status, many facilities are now facing the critical challenge of sourcing a verified replacement or planning a structured upgrade path that minimizes production downtime and preserves existing control architecture investments.

TOPNLMS supplies the 2711-K10C15L1 as a direct replacement unit — tested, inspected, and shipped with a 12-month warranty — while also supporting customers who are planning a phased migration to current-generation PanelView Plus or PanelView 800 platforms. Whether your priority is a like-for-like swap to restore a downed line or a longer-term modernization project, this page provides the technical context and procurement guidance you need.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 2711-K10C15L1 replacement or upgrade rarely involves the HMI terminal in isolation. In most field scenarios, the migration touches several interconnected components within the same control cabinet or network segment.

For facilities running SLC 500 controllers — such as the 1747-L553 or 1747-L543 CPU modules — the 2711-K10C15L1 communicates over DH-485 using the 1747-PIC or 1761-CBL-PM02 programming and communication cables. When replacing the HMI, it is essential to verify that the DH-485 network termination resistors and the 1747-AIC Advanced Interface Converter remain correctly configured, as any impedance mismatch can cause intermittent communication faults that are difficult to diagnose under production pressure.

Sites that have already migrated their controller to a CompactLogix platform — for example, the 1769-L33ER or 1769-L36ERM — will typically route HMI communications over EtherNet/IP rather than DH+. In these environments, a direct 2711-K10C15L1 replacement is still viable for short-term continuity, but the longer-term upgrade to a PanelView Plus 7 or PanelView 800 terminal allows the HMI to participate natively in the EtherNet/IP topology alongside the controller, I/O modules, and managed switches.

Power supply compatibility is another key consideration. The 2711-K10C15L1 operates on 120/240 VAC, while most modern HMI replacements require 24 VDC. If your control cabinet currently uses a 1606-XLP power supply or equivalent, verify its output capacity before adding a new HMI load. In some retrofit projects, a supplementary 1606-XLP95E or similar unit is added to provide a dedicated 24 VDC rail for the new terminal without disturbing the existing I/O power distribution.

For applications where the PanelView 1000 is mounted in a remote enclosure and communicates back to the main rack via a 1785-KA5 or 1784-KTX Data Highway Plus card, the replacement strategy must account for the DH+ node address configuration and the maximum node count on the network segment. TOPNLMS can advise on compatible communication interface modules and cable assemblies to support this topology during the transition period.

Where the existing installation includes analog or digital I/O expansion through 1746-series I/O modules on an SLC 500 rack, the replacement HMI must be validated against the tag database exported from PanelBuilder 1400e. If migrating to FactoryTalk View ME, the tag import utility can convert most standard tags, but custom alarm configurations and trend objects typically require manual recreation. Planning this conversion effort in advance significantly reduces commissioning time on site.

Retrofit Guidance FAQ

Q: Can I install the 2711-K10C15L1 replacement without modifying the existing panel cutout?
A: Yes. A direct replacement unit uses the same physical dimensions and mounting pattern as the original, so no panel modification is required. The existing gasket and mounting hardware can typically be reused.

Q: Will my existing PanelBuilder 1400e application files work on the replacement unit?
A: Yes, provided the replacement is a like-for-like 2711-K10C15L1. The application file transfers via the RS-232 programming port using the same cable and transfer procedure as the original unit. No software changes are required.

Q: What communication protocol does the 2711-K10C15L1 use, and is it compatible with my SLC 500?
A: The terminal supports DH-485 and RS-232 DF1 protocols natively, making it directly compatible with SLC 500, MicroLogix 1000/1100/1500, and PLC-5 controllers. No additional communication modules are required for these platforms.

Q: If I upgrade to a PanelView Plus, do I need to rewire the communication port?
A: Typically yes. PanelView Plus terminals use RJ45 EtherNet/IP or a different RS-232 pinout. The existing DH-485 cable from the 1747-AIC will need to be replaced or adapted. TOPNLMS recommends verifying the controller’s available communication ports before finalizing the upgrade path.

Q: How much physical space does the replacement require inside the enclosure?
A: The 2711-K10C15L1 has a standard depth profile compatible with most NEMA 12 and IP54 enclosures used in the original installation. If upgrading to a newer platform, confirm the depth clearance behind the panel door, as some modern terminals have a shallower body that actually improves cable routing.

Q: Can TOPNLMS provide a tested unit with the application already loaded?
A: Yes. If you supply your PanelBuilder 1400e application file, TOPNLMS can perform pre-shipment loading and functional verification, reducing on-site commissioning time to a simple power-on check.

Warranty Assurance

Every 2711-K10C15L1 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point inspection covering power-on functionality, display integrity, keypad response, communication port continuity, and firmware version verification. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize your downtime exposure.

For B2B customers placing repeat orders or managing multi-site retrofit programs, TOPNLMS offers consignment stock arrangements and priority allocation agreements. Contact our sales team to discuss volume pricing, lead time commitments, and technical support packages tailored to your maintenance schedule.

Stock is available for immediate dispatch. Lead time for standard orders is 1–3 business days from payment confirmation. Express international shipping via DHL, FedEx, or UPS is available to most destinations.
