Allen-Bradley 2711-B6C8L1 Ruggedized HMI Terminal for Harsh Environments

Product Overview

Allen-Bradley 2711-B6C8L1 Ruggedized HMI Terminal for Harsh Environments

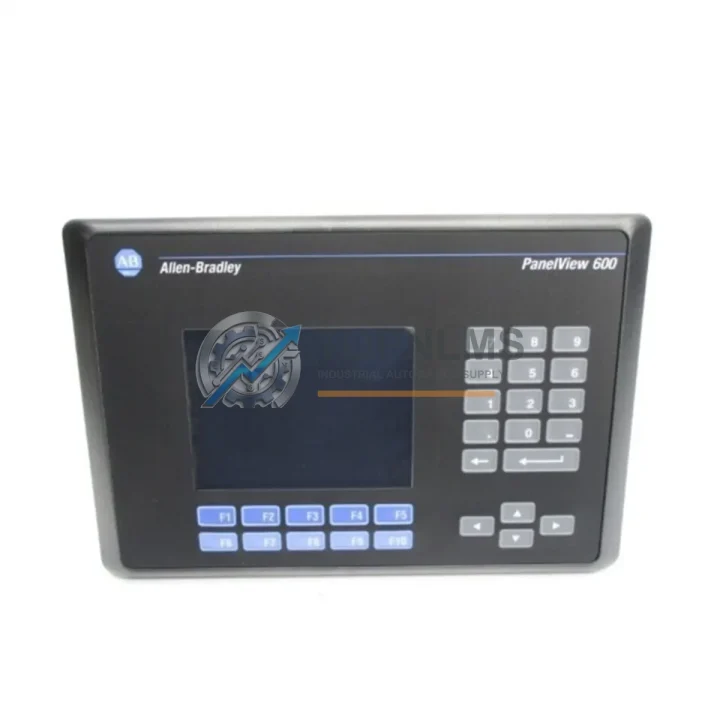

The Allen-Bradley 2711-B6C8L1 is a PanelView 600 series Human-Machine Interface (HMI) terminal engineered by Rockwell Automation to deliver uncompromising operator control in the most demanding industrial environments. Combining a 6-inch color display with both keypad and touch-screen input, this terminal is purpose-built for continuous-duty operation across high-temperature foundries, high-humidity water treatment plants, dust-laden mining galleries, and vibration-intensive heavy manufacturing lines. Where lesser displays fail, the 2711-B6C8L1 maintains crisp, readable graphics and responsive operator input — keeping production moving and safety interlocks visible at all times.

Industrial facilities that depend on uninterrupted process visibility cannot afford HMI downtime. The 2711-B6C8L1 integrates directly with Allen-Bradley ControlLogix and CompactLogix PLC platforms via the DH-485 and RS-232 communication ports, enabling seamless data exchange with ladder-logic programs without gateway hardware. Its sealed front panel meets NEMA 4/4X and IP65 ingress protection ratings, blocking water jets, fine particulate, and corrosive washdown chemicals from reaching internal electronics — a critical requirement in food processing, chemical dosing, and pulp-and-paper applications.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated control architecture, the 2711-B6C8L1 HMI terminal operates as the operator-facing layer of a layered protection strategy. On the controller side, it pairs naturally with Allen-Bradley CompactLogix L3x series PLC modules, which handle the real-time logic execution that the HMI visualizes. Safety-critical lines often add a GuardLogix safety controller alongside the standard PLC rack, ensuring that the operator interface can display safety-state information without compromising the integrity of the safety function itself.

Power quality is equally important in harsh environments. The 2711-B6C8L1 is typically powered through an Allen-Bradley 1606-XLP industrial power supply, which provides regulated 24 VDC with wide-range AC input and built-in surge protection — shielding the HMI from the voltage transients common in motor-heavy plants. On the I/O side, 1734 POINT I/O modules and 1756 ControlLogix I/O cards feed real-time field data to the PLC, which the HMI then renders as process graphics, alarm banners, and trend displays for the operator.

Communication integrity in electrically noisy environments is maintained through Allen-Bradley 1747-AIC isolated link coupler modules on DH-485 networks, preventing ground loops and common-mode noise from corrupting HMI-to-PLC data traffic. Where Ethernet connectivity is required, a Stratix 2000 unmanaged industrial Ethernet switch provides the hardened network infrastructure. For distributed I/O over longer distances, 1756-DNB DeviceNet scanner modules extend the control network to remote field devices — all of which can be monitored and acknowledged directly from the 2711-B6C8L1 operator panel. Safety relay modules such as the MSR127RP round out the protection layer, providing monitored E-stop and light-curtain input circuits whose status can be surfaced on the HMI screen for operator awareness.

Application in Critical Infrastructure

The 2711-B6C8L1 has established a proven track record across the most demanding sectors of critical infrastructure. In upstream oil and gas wellhead automation, the terminal provides operators with real-time pressure, flow, and valve-position data in environments where ambient temperatures swing from sub-zero winter nights to scorching summer afternoons, and where explosive-atmosphere classifications demand robust enclosure sealing. The NEMA 4X rating ensures that the panel face withstands the high-pressure washdowns used to clear drilling mud and hydrocarbon residues from control-room surfaces.

In underground coal and metal mining operations, the terminal is mounted inside reinforced control cabinets on continuous miners and longwall shearers, where vibration levels and airborne coal dust would rapidly degrade unprotected electronics. The 2711-B6C8L1’s sealed construction and wide operating temperature range allow it to function reliably shift after shift without operator-visible degradation in display brightness or touch sensitivity.

Municipal water and wastewater treatment plants rely on the terminal to display SCADA-fed process data — influent flow rates, chemical dosing pump status, UV disinfection system alarms — in pump houses where condensation and chemical vapors are constant. Power generation facilities, both thermal and hydroelectric, use the PanelView 600 platform to provide local operator stations at turbine governor panels and excitation control cabinets, where the HMI must remain legible and responsive even during the electromagnetic transients that accompany generator synchronization events. Steel mills and aluminum smelters similarly depend on the terminal’s EMC immunity to operate cleanly in the presence of large variable-frequency drives, arc furnaces, and overhead crane motors that generate significant conducted and radiated interference.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
Every 2711-B6C8L1 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, contact [email protected] with the order reference and a description of the fault. TOPNLMS will arrange return shipping, perform a technical assessment, and dispatch a verified replacement or issue a refund — typically within 5–7 business days of receiving the returned unit.

Q2: How is each unit tested before shipment?
All 2711-B6C8L1 terminals undergo a pre-shipment functional verification that includes power-on self-test confirmation, display uniformity check, keypad and touch-screen input validation, and communication port continuity testing. Units that do not pass all checkpoints are quarantined and not dispatched. A test record is retained for traceability and can be provided upon request for quality-audit purposes.

Q3: Is the 2711-B6C8L1 a direct drop-in replacement for existing PanelView 600 installations?
Yes. The 2711-B6C8L1 is dimensionally and electrically compatible with the standard PanelView 600 cutout and wiring harness. Existing PanelView 600 application files created in PanelBuilder 1400e software are directly transferable to the replacement unit via the built-in RS-232 port, eliminating the need for application re-engineering and minimizing planned maintenance downtime.

Q4: Can TOPNLMS guarantee long-term supply for ongoing maintenance contracts?
TOPNLMS maintains a dedicated inventory of legacy Rockwell Automation HMI components, including multiple PanelView 600 series variants, to support customers with multi-year maintenance and spare-parts agreements. Bulk pricing and reserved-stock arrangements are available for OEMs, system integrators, and end-users with documented annual consumption requirements. Contact [email protected] or call +86 18359293191 to discuss a supply agreement tailored to your maintenance schedule.
