Allen-Bradley 2711-B5A10 Replacement for PanelView 550: Smooth Transition from Legacy HMI Systems

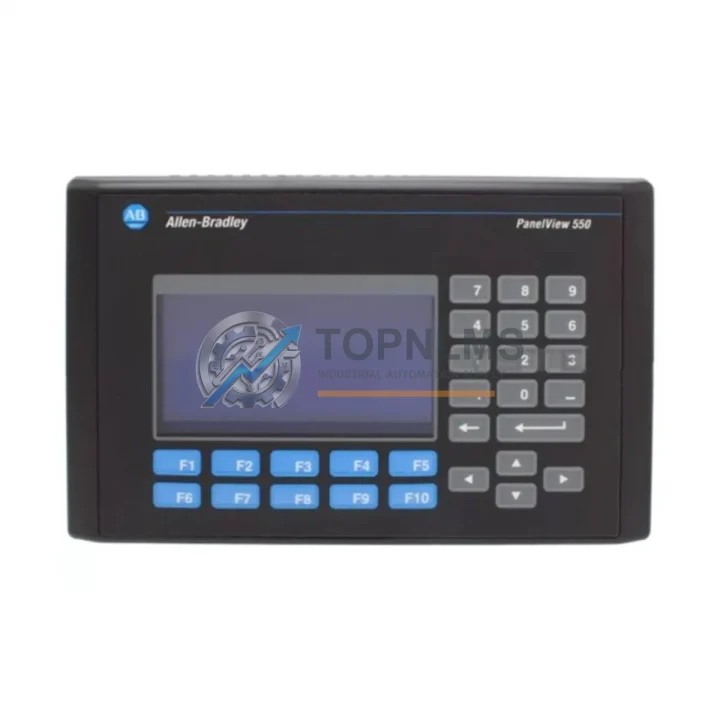

The Allen-Bradley 2711-B5A10 is a 5.5-inch monochrome keypad operator terminal from the PanelView 500 series, communicating over DH-485 protocol. As Rockwell Automation has discontinued this model, facilities running legacy SLC 500, MicroLogix 1000, or MicroLogix 1100 control systems are increasingly facing the challenge of sourcing reliable replacement units to avoid unplanned downtime. TOPNLMS maintains verified stock of the 2711-B5A10 and offers a direct drop-in replacement path that preserves your existing wiring, panel cutout, and application program without requiring a full system redesign.

Whether your plant is operating a standalone SLC 5/03 or SLC 5/04 processor with a 1747-SN Scanner Node or a distributed I/O network using 1746-series I/O modules, the 2711-B5A10 integrates directly into the existing DH-485 network segment. The terminal’s 24 VDC power input, standard DB-9 DH-485 port, and 5.5-inch display footprint are identical to the original factory specification, meaning panel cutout dimensions, cable routing, and power wiring require no modification during swap-out.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 2711-B5A10 field replacement typically involves more than swapping the terminal itself. In most DH-485 network topologies, the terminal connects to the SLC 500 processor rack via a 1747-AIC Advanced Interface Converter or a 1761-NET-AIC network adapter. If the existing AIC is aged or showing intermittent communication faults, replacing it alongside the HMI terminal eliminates a common source of post-swap communication errors. Similarly, the programming cable — typically a 1747-PIC or the USB-based 1784-U2DHP — is required to download the existing PanelView application (.PVA file) from RSView32 or PanelBuilder32 software onto the replacement terminal before commissioning.

For facilities where the SLC 500 rack also houses aging 1746-IB16 or 1746-OB16 digital I/O modules, this replacement event is a practical opportunity to audit and pre-stage spare I/O modules. The 1746-series I/O modules share the same backplane and power budget as the SLC 5/03 or SLC 5/04 processor, and stocking a spare 1746-P2 or 1746-P4 power supply module alongside the HMI replacement ensures the control cabinet remains fully covered against single-point failures.

In installations where the DH-485 network spans multiple nodes — for example, a MicroLogix 1100 acting as a sub-controller alongside the main SLC 5/04 — the 1761-NET-AIC adapter provides the RS-232 to DH-485 conversion needed to maintain network integrity after the terminal swap. Facilities running a 1747-SDN DeviceNet Scanner alongside the SLC processor should also verify that the DeviceNet node address table remains intact after the HMI replacement, as some older firmware revisions reset network parameters on power cycle.

Where the control cabinet also houses a PowerFlex 40 or PowerFlex 400 variable frequency drive communicating over DH-485, the drive’s node address and baud rate settings should be documented before the HMI swap and verified post-commissioning. The 2711-B5A10 replacement does not alter drive parameters, but confirming communication integrity across all DH-485 nodes after terminal installation is standard commissioning practice. A 1203-USB or 1203-SSS DriveExplorer cable is recommended for drive parameter backup prior to any cabinet work.

Retrofit Guidance FAQ

Q: Do I need to rewrite my PanelView application for the replacement 2711-B5A10?
No. The replacement unit accepts the same .PVA application file created in PanelBuilder32. Transfer the file using a 1747-PIC or 1784-U2DHP cable connected to the terminal’s RS-232 port before mounting the unit in the panel.

Q: Will the existing DH-485 wiring and termination resistors work with the replacement terminal?
Yes. The 2711-B5A10 uses a standard DB-9 DH-485 connector. Existing shielded twisted-pair wiring, termination resistors (typically 120Ω at each end of the network), and node addressing are fully compatible. No rewiring is required.

Q: What is the panel cutout size, and does it match the original unit?
The 2711-B5A10 uses the standard PanelView 550 panel cutout (approximately 196 mm × 141 mm). The replacement unit is dimensionally identical to the original, so no panel modification is needed.

Q: Can the replacement terminal communicate with a MicroLogix 1100 over DH-485?
Yes. The MicroLogix 1100 supports DH-485 natively via its built-in RS-485 port. The 2711-B5A10 communicates at 19.2 kbps (default) and is fully compatible with MicroLogix 1000, MicroLogix 1100, and SLC 500 family processors on the same DH-485 segment.

Q: How do I set the node address on the replacement terminal?
Node address is configured via the terminal’s configuration menu, accessible at power-up before the application loads. Set the node address to match the original unit’s address (typically node 1 for a single HMI on the network). Ensure no duplicate node addresses exist on the DH-485 segment.

Q: Is the replacement unit compatible with RSView32 and PanelBuilder32 software?
Yes. The 2711-B5A10 is fully supported by PanelBuilder32 v3.83 and later. RSView32 can monitor tags via the SLC 500 processor; the HMI terminal itself is programmed independently through PanelBuilder32.

Q: What if the physical installation space is constrained?
The 2711-B5A10 has the same depth profile as the original PanelView 550 terminal. Cabinet depth requirements are unchanged. If the cabinet also houses a 1746-series rack, verify that the rack’s power supply module has sufficient capacity for the terminal’s 24 VDC draw (approximately 1.0A) before commissioning.

Warranty Assurance

Every 2711-B5A10 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including power-on self-test, display integrity check, keypad response validation, and DH-485 communication port continuity testing. Units that do not pass all pre-shipment checks are not dispatched.

In the event of a DOA (Dead on Arrival) or in-warranty functional failure, TOPNLMS provides a replacement unit or full refund based on the customer’s preference. Our after-sales response target is within 24 hours of fault notification. Return shipping for warranty claims is coordinated by TOPNLMS, and customers are not required to bear return freight costs for confirmed warranty failures.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with each shipment. Lead time for in-stock units is typically 3–7 business days to major international destinations via DHL, FedEx, or UPS Express. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

For volume procurement, OEM replacement programs, or MRO standing orders, contact our technical sales team to discuss pricing, lead time, and consignment stocking arrangements.
