Allen-Bradley 25B-D6P0N114 Original Industrial Spare PowerFlex 525

Product Overview

Allen-Bradley 25B-D6P0N114 Original Industrial Spare PowerFlex 525: System Stability & Maintenance Value

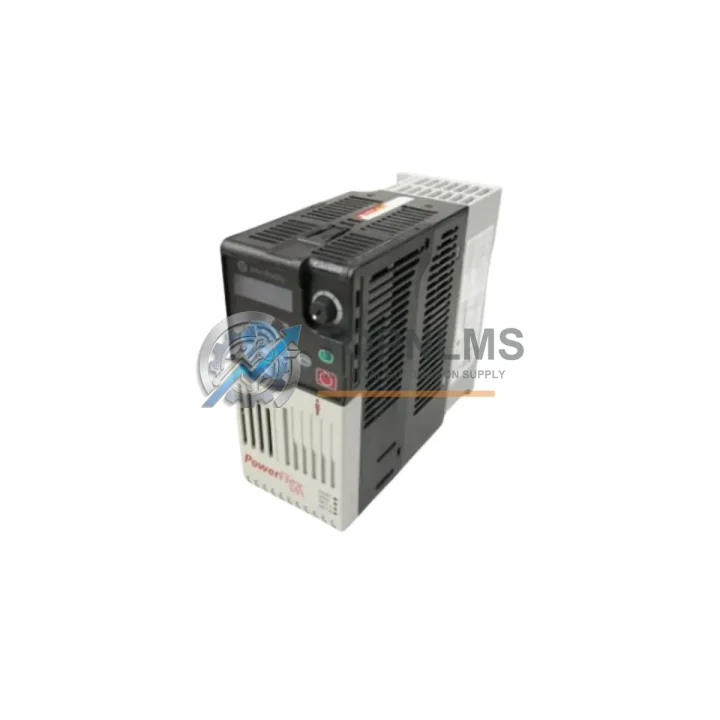

The Allen-Bradley 25B-D6P0N114 is a PowerFlex 525 series AC variable frequency drive rated at 3 HP (2.2 kW) with a 480V three-phase input. As a genuine original spare part, it is engineered to deliver seamless drop-in replacement capability within existing Allen-Bradley control architectures — preserving system stability, minimizing commissioning time, and eliminating the compatibility risks associated with third-party substitutes. For maintenance engineers managing aging automation lines, having a verified 25B-D6P0N114 unit on the shelf is one of the most cost-effective strategies to reduce unplanned downtime and protect production continuity.

The PowerFlex 525 platform is one of the most widely deployed compact VFD families in North American and Asia-Pacific industrial facilities. Its embedded EtherNet/IP port, Safe Torque-Off (STO) safety function, and modular design make it a preferred choice for conveyor systems, pump stations, HVAC applications, and general-purpose motor control. When this drive fails or degrades, the impact on the production line is immediate — making rapid access to a tested, ready-to-ship replacement unit critical.

Critical Technical Specs

Preventive Maintenance Strategy

A VFD failure rarely occurs in isolation. In most industrial control cabinets, the 25B-D6P0N114 operates within a broader electrical ecosystem — and a thorough preventive maintenance program should address the entire circuit, not just the drive itself. When scheduling a planned inspection or responding to an unplanned shutdown involving this unit, maintenance teams should simultaneously evaluate the condition of several adjacent components.

The 25-PM1-B20 (PowerFlex 525 plug-in I/O module) and 25-COMM-E2P (dual-port EtherNet/IP communication adapter) are frequently installed alongside the 25B-D6P0N114 and should be inspected for firmware compatibility and physical connector integrity during any drive replacement. The 1492-SP1C060 supplementary protector and associated 1492-FB1C30 fuse block modules in the incoming power circuit are common wear items that should be checked for thermal discoloration or tripping history.

On the motor side, verify the condition of the 1321-3R6-B line reactor or equivalent input reactor, which protects the drive from line transients and harmonic distortion — a leading cause of premature VFD failure. The motor cable shielding and grounding integrity should also be confirmed, as improper grounding is a frequent root cause of drive faults in the PowerFlex 525 platform.

For facilities running Allen-Bradley MicroLogix or CompactLogix controllers in the same panel, it is advisable to inspect the 1769-L30ER or 1769-L33ER CompactLogix processor and associated 1769-IQ16 digital input modules for any fault logs that may indicate upstream control signal issues contributing to the drive failure. The 1756-EN2T EtherNet/IP communication module in the ControlLogix backplane, if present, should also be verified for network connectivity and firmware version alignment.

Finally, the 1606-XLP95E power supply module supplying 24VDC control power to the panel should be load-tested to confirm it is delivering stable voltage under full panel load — an undervoltage condition on the control rail is a frequently overlooked cause of intermittent drive faults and nuisance trips.

Stocking these components alongside the 25B-D6P0N114 as a coordinated spare parts kit significantly reduces mean time to repair (MTTR) and eliminates the multi-day lead time risk that can extend a single-drive failure into a week-long production outage.

Strategic Replacement Solutions

The 25B-D6P0N114 is a direct replacement for the earlier 25B-D6P0N104 catalog number, which reached end-of-life status. Both units share identical mounting footprints, terminal layouts, and parameter structures, allowing maintenance personnel to perform a swap without panel modifications or rewiring. Parameter backup via the 25-HIM-A6 Human Interface Module or Connected Components Workbench (CCW) software ensures that drive configuration is preserved and can be restored to the replacement unit within minutes.

For facilities operating legacy PowerFlex 40 or PowerFlex 400 drives in similar applications, the PowerFlex 525 platform offers a forward-compatible upgrade path with enhanced network integration and safety functionality — extending the operational life of the control system without requiring a full panel redesign. This makes the 25B-D6P0N114 not only a like-for-like spare but also a strategic modernization component for aging automation infrastructure.

All units supplied by TOPNLMS are sourced from authorized distribution channels, individually tested for output voltage, frequency response, and fault-free operation prior to shipment, and shipped with full documentation. Expedited shipping options are available for emergency maintenance situations, with most orders dispatched within 1–2 business days.

Support FAQ

Q1: Is the 25B-D6P0N114 a direct drop-in replacement for the 25B-D6P0N104?
Yes. The 25B-D6P0N114 is the current catalog revision of the 25B-D6P0N104 and is fully backward compatible. The mounting dimensions, terminal block layout, and parameter set are identical. No panel modifications are required.

Q2: How is the unit tested before shipment?
Each 25B-D6P0N114 unit undergoes functional testing including power-on verification, output voltage and frequency sweep, and fault-code diagnostics prior to packaging. A test report is available upon request. The unit is shipped with a 12-month warranty from the date of shipment.

Q3: Can I verify compatibility with my existing PowerFlex 525 installation before ordering?
Yes. Please provide your existing drive catalog number, firmware version (if known), and application type (pump, conveyor, HVAC, etc.) to our technical team at [email protected]. We will confirm compatibility and advise on any parameter migration considerations.

Q4: What is the recommended spare parts stocking strategy for the PowerFlex 525 platform?
For facilities with 5 or more PowerFlex 525 drives installed, we recommend maintaining a minimum of one 25B-D6P0N114 unit on-site as a critical spare, supplemented by a spare HIM module (25-HIM-A6) and a set of input fuse blocks. For high-criticality lines, a 1:5 spare ratio is advisable. Contact us for volume pricing on multi-unit spare kits.
