Allen-Bradley 25B-D013N104 Replacement for PowerFlex 525

Product Overview

Allen-Bradley 25B-D013N104 Replacement for PowerFlex 525: Seamless Transition from Legacy AC Drive Systems

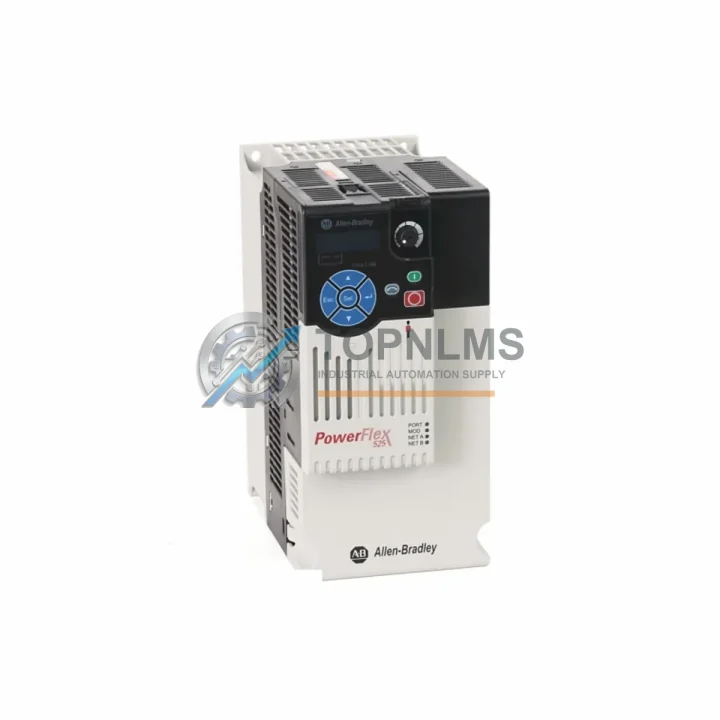

The Allen-Bradley 25B-D013N104 is a 7.5 HP (5.5 kW), 480 V three-phase AC variable frequency drive from the PowerFlex 525 series — one of Rockwell Automation’s most widely deployed compact drive platforms in industrial automation. Whether your facility is retiring aging PowerFlex 4 or PowerFlex 40 drives, decommissioning legacy 22A or 22B series units, or simply replacing a failed drive in an existing MCC or standalone control cabinet, the 25B-D013N104 provides a direct-fit upgrade path with minimal re-engineering effort.

At TOPNLMS, we stock the 25B-D013N104 as a verified replacement unit, tested prior to shipment and backed by a 12-month warranty. Our inventory is sourced through established industrial supply channels, and each unit undergoes functional verification before dispatch from our Xiamen facility. Orders are processed within 1–2 business days, with international freight options available to minimize your plant downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy drive system to the 25B-D013N104 typically involves more than a one-for-one swap of the drive itself. In practice, engineers replacing PowerFlex 4 or PowerFlex 40 units in an existing control cabinet will often need to evaluate the terminal block wiring layout, since the PowerFlex 525 uses a slightly reorganized I/O terminal arrangement. In most cases, existing motor power cables (U, V, W) and line-side wiring (R, S, T) connect directly without modification.

For installations where the legacy drive communicated over RS-485 using the DSI protocol — common in older Rockwell architectures — the 25B-D013N104 retains full DSI compatibility, allowing existing PLC programs running on ControlLogix or CompactLogix platforms to communicate without protocol conversion. Where the upgrade path moves toward EtherNet/IP, the drive’s built-in dual-port Ethernet adapter eliminates the need for an external 20-COMM-E communication module, which was a required add-on for earlier PowerFlex 40 deployments.

In multi-drive panel installations, engineers frequently pair the 25B-D013N104 with a 1492-CABLE series pre-wired terminal block assembly to accelerate field wiring. For applications requiring analog signal isolation between the drive and a legacy DCS or SCADA system, a signal isolator or 1492-IFM interface module may be inserted in the I/O chain to prevent ground loop interference — a common issue when retrofitting older analog-controlled systems.

Power supply considerations are equally important. The 25B-D013N104 draws its control power internally from the main AC bus, so no separate 24 VDC control power supply is required for basic operation. However, if the control cabinet includes a 1606-XLP or similar Rockwell 24 VDC power supply feeding auxiliary relays or HMI panels, that infrastructure remains fully compatible and unchanged during the drive swap.

For facilities upgrading from a standalone drive to a networked architecture, the PowerFlex 525’s native EtherNet/IP port allows direct integration with a PanelView Plus HMI or a Studio 5000-based ControlLogix L7x controller without additional gateway hardware. Engineers migrating from older PanelView 550 or PanelView 900 terminals may use this opportunity to standardize on a PanelView Plus 7 Standard terminal, which supports the same EtherNet/IP network as the 25B-D013N104.

Where the legacy system used a 1203-USB or 1203-SSS programming cable to configure the old drive via DriveExplorer software, the 25B-D013N104 is configured using Connected Components Workbench (CCW) over USB or Ethernet, and parameter migration tools within CCW can import parameter files from older PowerFlex 4/40 projects to accelerate commissioning. The integral LCD HIM on the 25B-D013N104 also allows on-drive parameter entry without a laptop, which is valuable during field commissioning in remote or space-constrained installations.

Retrofit Guidance FAQ

Q: Can I reuse the existing motor power and control wiring from my PowerFlex 40 installation?
A: In most cases, yes. The main power terminals (R/S/T input, U/V/W output) follow the same convention. Control wiring should be verified against the 25B-D013N104 wiring diagram, as terminal numbering differs slightly from the 22B series. Allow 2–4 hours for a qualified technician to verify and re-label control wiring during the swap.

Q: Will my existing ControlLogix or CompactLogix PLC program need modification?
A: If you are using DSI/RS-485 communication, the existing Add-On Instructions (AOIs) for PowerFlex 4/40 drives are compatible with the PowerFlex 525 in most parameter-mapped configurations. For EtherNet/IP migrations, Rockwell provides a PowerFlex 525 EDS file and Studio 5000 AOI that can be imported with minimal rework. Full re-commissioning and parameter verification are always recommended.

Q: Does the 25B-D013N104 fit in the same panel cutout or DIN rail slot as my old drive?
A: The PowerFlex 525 at the 7.5 HP / 480 V rating has a similar but not identical footprint to the PowerFlex 40. Panel designers should verify the height, width, and depth dimensions against the existing cutout. In most standard MCC or standalone enclosures, the drive fits within the same general space envelope, though mounting hole positions may differ.

Q: Is Safe Torque Off (STO) wiring required for installation?
A: The 25B-D013N104 includes STO terminals (S1, S2, +24V). If STO is not used in your application, these terminals must be jumpered per the installation manual to enable drive operation. Failure to jumper or connect STO will result in a fault condition and the drive will not run.

Q: What communication protocol should I use for a new installation?
A: For new or upgraded Rockwell-based architectures, EtherNet/IP is recommended for full integration with Studio 5000 and PanelView Plus systems. For legacy RS-485 environments where a full network upgrade is not planned, DSI remains a supported and stable option on the 25B-D013N104.

Warranty Assurance

Every 25B-D013N104 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional power-on test and visual inspection to verify physical integrity, terminal condition, and firmware operability. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with a target response time of 1–2 business days for claim assessment. Defective units returned within the warranty period are eligible for direct replacement or credit, subject to inspection confirming no physical damage or misapplication. Our after-sales team is reachable at [email protected] or +86 18359293191 for technical pre-sales questions, compatibility verification, and post-shipment support.

For bulk procurement, project-based orders, or standing inventory agreements, TOPNLMS offers priority allocation and expedited shipping arrangements. Lead times and stock availability can be confirmed prior to purchase order issuance.
