Allen-Bradley 22A-B8P0N104 Replacement for PowerFlex 4

Product Overview

Allen-Bradley 22A-B8P0N104 Replacement for PowerFlex 4: Smooth Transition & Legacy System Compatibility

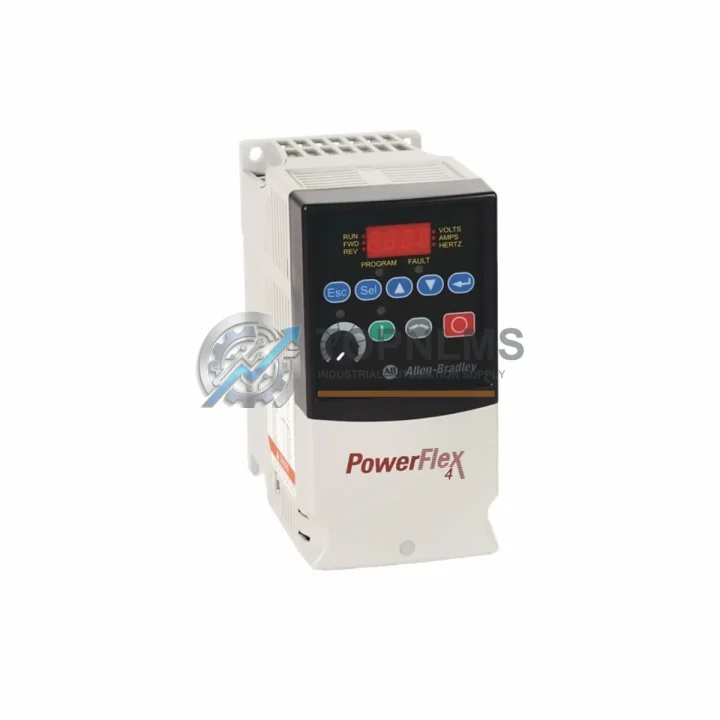

The Allen-Bradley 22A-B8P0N104 is a 240V AC, 1.5 kW (2 HP), 8.0A output variable frequency drive from the PowerFlex 4 series — one of Rockwell Automation’s most widely deployed compact AC drive platforms in light industrial and OEM machine applications. As the PowerFlex 4 series approaches end-of-life and spare parts become increasingly scarce, plant engineers and maintenance teams face mounting pressure to source verified replacement units or execute a controlled migration to a compatible successor platform without disrupting production continuity.

TOPNLMS supplies the 22A-B8P0N104 as a direct replacement unit, fully tested prior to shipment, with a 12-month warranty and rapid dispatch from our Xiamen warehouse. Whether your objective is a like-for-like swap to restore a failed drive or a planned upgrade within an existing control cabinet, this guide covers the key compatibility, wiring, communication, and commissioning considerations your team needs to execute the transition with minimal downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PowerFlex 4 replacement rarely involves the drive alone. In most retrofit and modernization projects, the 22A-B8P0N104 is installed alongside or in coordination with several complementary components that ensure the upgraded drive integrates cleanly into the existing control architecture.

For sites running a DeviceNet or EtherNet/IP network backbone, the 22-COMM-D DeviceNet adapter and 22-COMM-E EtherNet/IP adapter are the standard communication modules that plug directly into the PowerFlex 4 peripheral port, enabling the drive to participate in the plant-wide network without rewiring the control cabinet. Where legacy RS-232 or RS-485 serial links are in use, the 22-SCM-232 and 22-SCM-485 serial communication modules provide a direct DSI-to-serial bridge, preserving existing SCADA or PLC polling routines.

On the control side, many PowerFlex 4 installations are supervised by a MicroLogix 1100 or MicroLogix 1400 controller. These compact Rockwell PLCs communicate with the drive via DSI or DeviceNet and typically require no program changes when a same-model drive replacement is performed — parameter addresses and drive tags remain identical. For larger systems integrated into a ControlLogix L6x or L7x chassis, the drive appears as a standard peripheral node and the replacement is transparent to the ladder logic program.

Wiring integrity is critical during any drive swap. Engineers frequently replace or inspect the 22-HIM-A3 remote Human Interface Module at the same time, as the HIM stores a parameter backup that can be uploaded directly to the new 22A-B8P0N104 in minutes, eliminating manual parameter re-entry. The 1203-USB programming cable (or its 1203-SSS predecessor) is the standard tool for connecting a laptop running DriveExecutive or Studio 5000 Logix Designer to the drive’s DSI port for parameter verification and fault log review.

In cabinet installations where the drive shares a panel with other automation components, the 1492-CABLE series pre-wired terminal cables and 1492-IFM interface modules simplify I/O termination and reduce wiring errors during commissioning. For applications requiring input line filtering to meet CE or EMC requirements, the 22-RF series EMC filter mounts upstream of the drive and is sized to match the 1.5 kW / 8.0A rating of the 22A-B8P0N104. Finally, where the motor circuit includes a dynamic braking requirement, the 22-RB series braking resistor kit connects to the drive’s DC bus terminals and is fully compatible with the PowerFlex 4 platform.

Retrofit Guidance FAQ

Q: Can I reuse the existing control wiring when swapping in the 22A-B8P0N104?
A: Yes. The terminal block layout (TB1) on the PowerFlex 4 is consistent across production revisions. Analog input (0–10V or 4–20mA), digital input, relay output, and power terminals are pin-compatible. Verify wire gauge and torque specifications against the current installation manual before re-terminating.

Q: Do I need to re-enter all drive parameters after replacement?
A: Not if you have a parameter backup. Use the 22-HIM-A3 remote HIM or the 1203-USB cable with DriveExecutive software to upload a saved parameter file to the new drive. If no backup exists, record all non-default parameters from the failed drive’s display before removal, or retrieve them from your maintenance management system.

Q: Will my existing DeviceNet or EtherNet/IP node address carry over?
A: The node address is stored in the communication adapter (22-COMM-D or 22-COMM-E), not in the drive itself. If the adapter is transferred to the new drive, the network address is preserved. If a new adapter is installed, set the MAC ID / IP address to match the original before powering up the network.

Q: Is the physical footprint identical to earlier PowerFlex 4 revisions?
A: Yes. The 22A-B8P0N104 uses the same IP20 chassis dimensions and mounting hole pattern as all PowerFlex 4 frame A units. No panel modifications or new cutouts are required.

Q: What communication protocols does the PowerFlex 4 support natively?
A: The drive’s native interface is DSI (Drive Serial Interface). EtherNet/IP, DeviceNet, Profibus DP, and Modbus RTU are supported via plug-in communication adapters. Confirm the adapter model installed in the original drive and source the same adapter for the replacement unit.

Q: How do I verify the replacement drive is functioning correctly before returning the machine to service?
A: After parameter restore, perform a no-load run at low speed (5–10 Hz) to confirm direction, acceleration ramp, and deceleration ramp. Check fault log (Parameter 80) for any pre-existing faults. Verify analog reference tracking and digital input response before connecting the motor load.

Warranty Assurance

Every 22A-B8P0N104 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a functional power-on test and visual inspection to confirm physical integrity, terminal condition, and firmware revision. Units are packed in anti-static foam with original-style carton protection to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is one business day for initial diagnosis support and three to five business days for physical replacement dispatch. We maintain buffer stock of common PowerFlex 4 variants to support urgent replacement requirements without extended lead times.

For procurement teams, we can provide a proforma invoice, packing list, and certificate of conformance upon request. Bulk orders for MRO stocking programs are supported with volume pricing. All units ship from Xiamen, China, with DHL Express, FedEx International Priority, or sea freight options depending on order volume and urgency.

For technical pre-sales questions, compatibility verification, or to place an order, contact our team directly:

📧 [email protected]
📞 +86 18359293191
