Allen-Bradley 22A-B017N104 Ruggedized AC Drive for Harsh Environments

Product Overview

Allen-Bradley 22A-B017N104 Ruggedized AC Drive: Industrial Resilience for Harsh Environments

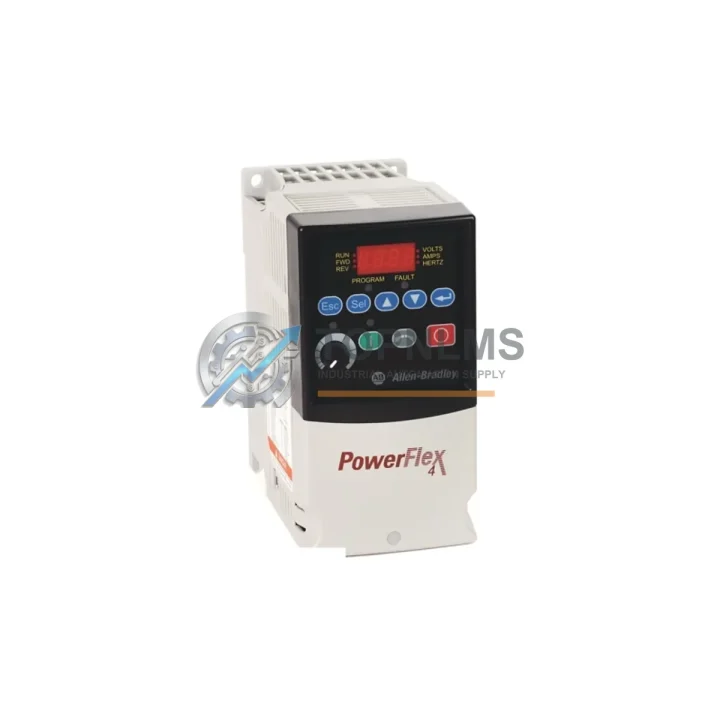

The Allen-Bradley 22A-B017N104 is a PowerFlex 4 series AC Variable Frequency Drive rated at 7.5 HP / 5.5 kW, 480V, 3-Phase, engineered by Rockwell Automation to deliver consistent, reliable motor speed control in the most demanding industrial environments. Whether deployed on a continuous production line, inside a sealed control cabinet in a petrochemical plant, or mounted in a high-vibration mining enclosure, the 22A-B017N104 is built to perform where lesser drives fail.

Designed with industrial resilience at its core, this drive incorporates robust EMI/RFI filtering, wide-range input voltage tolerance, and a compact footprint that integrates seamlessly into existing PowerFlex 4 and PowerFlex 40 system architectures. Its conformal-coated PCB option provides additional protection against moisture, dust, and corrosive atmospheres — a critical advantage in foundries, water treatment facilities, and offshore installations.

Rugged Specifications Table

Comprehensive Protection Solutions

The 22A-B017N104 does not operate in isolation — it is a cornerstone component within a broader industrial control architecture. In a typical heavy-industry control cabinet, this drive works in concert with a Allen-Bradley 1756-L71 ControlLogix PLC to execute precise motor sequencing and process interlocks. Upstream power conditioning is handled by a Allen-Bradley 1606-XLP72E industrial power supply, ensuring the drive receives clean, stable DC bus voltage even during grid fluctuations common in smelting or mining operations.

For I/O expansion and field signal aggregation, the Allen-Bradley 1734 POINT I/O modules interface directly with the PowerFlex 4 via the DSI communication port, enabling real-time feedback from temperature sensors, pressure transmitters, and vibration monitors mounted on driven equipment. Where safety-rated shutdowns are required — such as emergency stop circuits in hazardous areas — the Allen-Bradley 440R Guardmaster Safety Relay provides SIL 2 / PLd-rated safe torque-off integration, ensuring the 22A-B017N104 can be safely de-energized without full system shutdown.

In environments with significant electromagnetic interference — such as arc furnaces, large motor rooms, or high-frequency welding lines — the drive’s built-in EMI filter is supplemented by external Allen-Bradley 22-RF line reactors, which suppress harmonic distortion and protect both the drive and upstream transformers. Terminal connections are secured through Phoenix Contact or Weidmüller DIN-rail terminal blocks, rated for the vibration and thermal cycling typical of continuous production environments.

For distributed control architectures, the optional 22-COMM-E EtherNet/IP communication adapter enables the 22A-B017N104 to participate in a Rockwell Automation Integrated Architecture, reporting drive status, fault codes, and energy consumption data directly to a SCADA or MES system via standard Ethernet infrastructure. Alongside the drive, Allen-Bradley 700-HLT2Z24 industrial relays and 1492-J terminal blocks complete the control cabinet wiring, providing a fully integrated, maintainable, and field-serviceable assembly.

Application in Critical Infrastructure

In oil and gas upstream operations, the 22A-B017N104 controls pump and compressor motors in wellhead and pipeline stations where ambient temperatures fluctuate widely and dust ingress is a constant threat. Its wide voltage tolerance and robust fault-recovery logic minimize unplanned downtime in remote, unmanned installations.

In underground mining, the drive manages conveyor belt motors and ventilation fan systems operating under continuous load cycles, high humidity, and coal dust exposure. The drive’s sensorless vector control maintains precise speed regulation even as load torque varies with ore density, protecting both the motor and the mechanical drivetrain from stress-induced failures.

At municipal water treatment and pumping stations, the 22A-B017N104 enables variable-speed control of centrifugal pumps, dramatically reducing energy consumption compared to fixed-speed operation while extending pump seal and bearing life. Its built-in PID controller allows direct pressure or flow feedback control without an external PLC for simpler installations.

In metallurgical and steel processing plants, where high ambient temperatures, heavy vibration, and aggressive airborne particulates are the norm, the drive’s conformal-coated board variant and wide operating temperature range ensure continuous operation through multi-shift production schedules. Planned maintenance intervals can be extended because the drive’s predictive fault logging identifies developing issues — such as DC bus capacitor degradation or cooling fan wear — before they cause unscheduled stops.

For power generation facilities — including thermal, hydro, and renewable energy plants — the 22A-B017N104 controls auxiliary motor loads such as cooling water pumps, fuel feed conveyors, and HVAC systems within the plant, contributing to overall plant efficiency and reliability targets mandated by grid operators.
