Allen-Bradley 2198-DB42-F Ruggedized EMC Filter for Harsh Environments

Product Overview

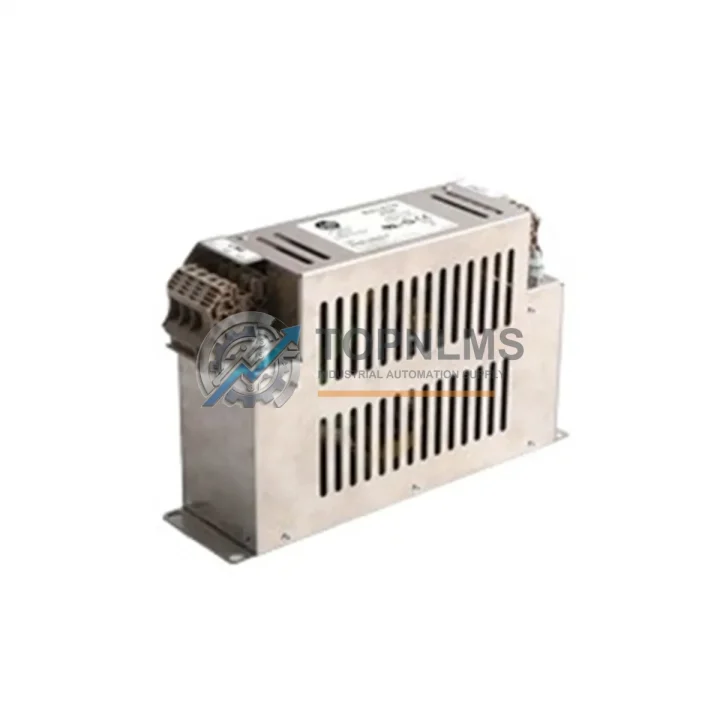

Allen-Bradley 2198-DB42-F Ruggedized EMC Filter Module for Harsh Industrial Environments

The Allen-Bradley 2198-DB42-F is a 3-Phase EMC Line Filter engineered specifically for the Kinetix 5700 servo drive platform, delivering robust electromagnetic interference suppression in the most demanding industrial environments. Designed to meet the rigorous electromagnetic compatibility (EMC) requirements of continuous production lines, heavy manufacturing facilities, and safety-critical automation systems, this filter module ensures that servo drive systems maintain stable, interference-free operation even when subjected to high-frequency electrical noise, voltage transients, and conducted emissions common in industrial power distribution networks.

In modern industrial automation architectures, servo drives such as the Kinetix 5700 series are deployed alongside variable frequency drives (VFDs), programmable logic controllers (PLCs), distributed control systems (DCS), and high-density I/O modules — all of which generate and are susceptible to electromagnetic disturbances. The 2198-DB42-F acts as the first line of defense at the power input stage, attenuating conducted EMI before it can propagate through the AC supply lines and disrupt adjacent control equipment. This is particularly critical in facilities where Allen-Bradley ControlLogix or CompactLogix PLCs, 1756-series I/O modules, and Kinetix 5700 2198-S086-ERS3 or 2198-S130-ERS3 servo drives share a common power bus within the same control cabinet.

The filter’s ruggedized construction is rated for continuous operation in environments characterized by high ambient temperatures, elevated humidity, airborne particulates, and mechanical vibration — conditions routinely encountered in oil and gas processing plants, mining operations, steel mills, cement production facilities, and water treatment infrastructure. Its robust terminal block design and enclosure-compatible form factor ensure secure installation within sealed control cabinets, preventing ingress of dust and moisture that could compromise insulation integrity or cause intermittent faults in safety-critical drive systems.

Rugged Specifications Table

Comprehensive Protection Solutions

Effective EMC management in a Kinetix 5700 servo system extends well beyond a single filter component. The 2198-DB42-F is designed to work in concert with the full Kinetix 5700 drive architecture, including the 2198-P031 and 2198-P070 shared DC bus power supplies, which provide the regulated DC bus voltage that servo drives convert into precise motor control signals. When paired with the 2198-CAPMOD-2240 capacitor module, the system achieves enhanced bus voltage stability during rapid acceleration and deceleration cycles — a common source of conducted noise in high-dynamic servo applications.

Within the control cabinet, the 2198-DB42-F complements Allen-Bradley 1492-series terminal blocks and 1756-IB16 or 1756-OB16 digital I/O modules by ensuring that the power supply rails feeding these devices remain free of high-frequency noise. Safety-rated components such as the 440C-CR30 safety relay and GuardLogix safety controllers depend on clean power and signal integrity to execute safety functions reliably — any EMI-induced glitch on a safety input could trigger an unplanned machine stop or, worse, mask a genuine safety event. The 2198-DB42-F’s attenuation characteristics directly support the functional safety integrity of the broader control system.

For communication-intensive installations where EtherNet/IP or SERCOS III motion networks interconnect Kinetix 5700 drives with ControlLogix L8x controllers, EMI suppression at the power input stage is essential to prevent common-mode noise from coupling into network cables and causing packet loss or axis faults. Supplementary components such as 1585J-M8CBJM-x EtherNet/IP cables with shielded construction and 1783-series Stratix managed switches further reinforce network immunity when used alongside the 2198-DB42-F in a well-designed EMC enclosure layout.

Application in Critical Infrastructure

The Allen-Bradley 2198-DB42-F finds its most demanding deployments in critical infrastructure sectors where unplanned downtime carries severe operational, financial, and safety consequences. In oil and gas upstream and midstream facilities, servo-driven valve actuators and compressor control systems must operate continuously in environments saturated with electromagnetic interference from high-power motors, variable speed pumps, and ground-fault-prone cable runs. The 2198-DB42-F ensures that Kinetix 5700 drives controlling these actuators remain immune to conducted disturbances that could cause nuisance trips or axis faults during critical process transitions.

In underground mining operations, servo systems controlling conveyor positioning, longwall shearer drives, and ventilation fan speed regulation are exposed to extreme vibration, coal dust ingress, and fluctuating supply voltages from diesel generator sets. The filter’s robust construction and wide operating temperature range make it a reliable choice for these harsh below-ground environments. Similarly, in electric arc furnace steelmaking facilities, the 2198-DB42-F protects Kinetix 5700 servo drives from the intense electromagnetic pulses generated during arc ignition and scrap charging cycles — events that can inject broadband noise across the entire facility power distribution system.

Water and wastewater treatment plants rely on servo-driven dosing pumps, filter press actuators, and sluice gate controls that must operate reliably around the clock. The 2198-DB42-F’s compliance with EN 61800-3 Category C2/C3 emission limits ensures that servo drive installations in these facilities meet the electromagnetic compatibility requirements mandated by plant operators and regulatory authorities, reducing the risk of interference with adjacent instrumentation and SCADA communication systems.

Security & Quality FAQ

Q1: Does the 2198-DB42-F come with a warranty, and what does it cover?
Every 2198-DB42-F unit supplied by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. All units undergo functional testing and visual inspection prior to shipment to verify electrical integrity and mechanical completeness.

Q2: How is compatibility with my existing Kinetix 5700 system verified before shipment?
The 2198-DB42-F is the factory-specified EMC line filter for the Kinetix 5700 servo drive platform. Compatibility is confirmed against Rockwell Automation publication 2198-UM002, which defines the filter selection matrix based on drive current rating and AC input voltage. Our technical team can cross-reference your specific drive model and power configuration to confirm the correct filter selection before order confirmation.

Q3: What is the lead time and shipping arrangement for this part?
Units in stock are typically dispatched within 1–3 business days of order confirmation. We ship internationally from Xiamen, China via DHL Express, FedEx International Priority, or freight forwarder depending on order volume and destination. Export documentation including commercial invoice, packing list, and certificate of origin is provided with every shipment.

Q4: Can TOPNLMS support long-term supply continuity for this part?
Yes. TOPNLMS maintains ongoing procurement relationships with authorized distributors and maintains safety stock of high-demand Kinetix 5700 components including the 2198-DB42-F. For customers with planned maintenance schedules or multi-site rollouts, we can arrange blanket purchase orders and reserved inventory allocations to ensure supply continuity over 12–24 month horizons.
