Allen-Bradley 2198-D012-ERS3 Ruggedized Dual-Axis Servo Drive

Product Overview

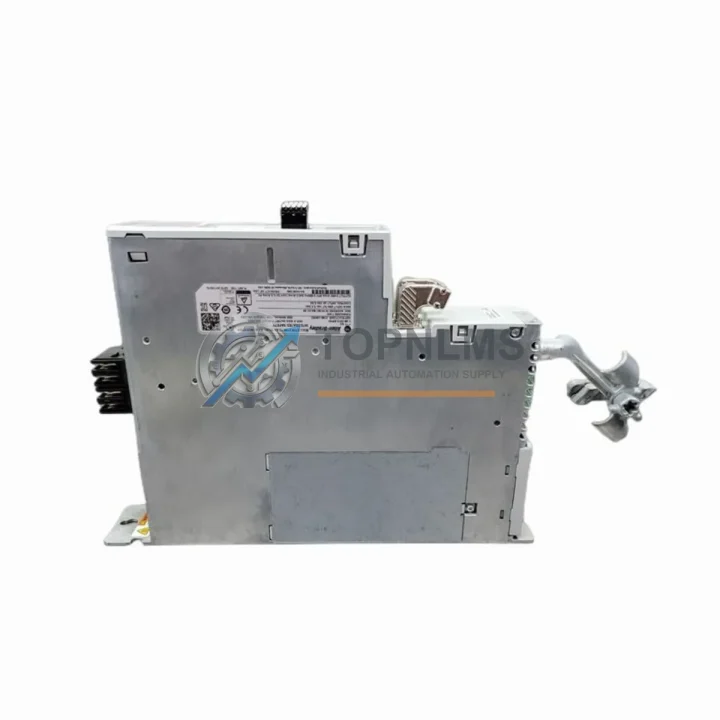

Allen-Bradley 2198-D012-ERS3 Ruggedized Dual-Axis Servo Drive for Harsh Industrial Environments

The Allen-Bradley 2198-D012-ERS3 is a high-performance dual-axis servo drive from the Kinetix 5700 series, engineered by Rockwell Automation to deliver precise motion control under the most demanding industrial conditions. Designed for continuous-duty operation in environments characterized by elevated temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this drive is a cornerstone component for mission-critical automation systems where downtime is not an option.

Built on the EtherNet/IP architecture native to the Rockwell Integrated Architecture platform, the 2198-D012-ERS3 integrates seamlessly with Allen-Bradley ControlLogix and CompactLogix PLCs, enabling deterministic motion coordination across multi-axis machine cells. Its dual-axis topology reduces panel footprint and wiring complexity inside the control cabinet, while the shared DC bus architecture of the Kinetix 5700 family improves energy efficiency through regenerative power sharing between axes — a critical advantage in high-cycle press, winding, and conveyor applications.

The drive’s robust power stage is rated for a continuous output current of 12 A RMS per axis, with a peak current capability that supports aggressive acceleration profiles required in packaging lines, metal forming presses, and robotic welding cells. Integrated Safe Torque Off (STO) functionality — certified to SIL 2 / PLd — allows the drive to participate directly in machine safety architectures without external safety relays, reducing component count and simplifying compliance with IEC 62061 and ISO 13849 safety standards.

Rugged Specifications Table

Comprehensive Protection Solutions

The 2198-D012-ERS3 is rarely deployed in isolation. In a fully integrated Kinetix 5700 motion system, it operates alongside the 2198-P031 Kinetix 5700 DC Bus Power Supply, which conditions and distributes shared DC bus power to multiple servo drives within the same cabinet section. For applications requiring single-axis motion, the 2198-S086-ERS3 single-axis variant from the same Kinetix 5700 family provides a compatible alternative within the same control architecture.

On the controller side, the 1756-L85E ControlLogix 5580 PLC serves as the motion coordinator, executing multi-axis cam profiles and electronic gearing through Studio 5000 Logix Designer. The 1756-EN2T EtherNet/IP communication module bridges the controller backplane to the plant network, ensuring low-latency, deterministic command delivery to the 2198-D012-ERS3 over a standard Gigabit Ethernet infrastructure.

For I/O integration within the same control cabinet, the 1734 POINT I/O modules — including digital input, digital output, and analog modules — connect to the ControlLogix system via EtherNet/IP or DeviceNet, providing field-level signal conditioning for proximity sensors, limit switches, and pressure transducers that interact with the servo-driven axes. The 1606-XLP power supply series provides 24 VDC auxiliary power to the I/O rack and control circuit components, maintaining logic power stability even during main drive bus fluctuations.

Safety integration is completed through the 1791DS GuardLink safety I/O modules and the 440C-CR30 safety relay, which interface with the STO input of the 2198-D012-ERS3 to implement category 3 / PLd stop functions compliant with ISO 13849. For communication-intensive installations, the 1783-BMS10CGP Stratix 5400 managed Ethernet switch provides the network backbone, supporting ring topology redundancy and IGMP snooping for CIP Motion traffic prioritization.

Application in Critical Infrastructure

The Allen-Bradley 2198-D012-ERS3 is deployed across a broad spectrum of heavy industrial and critical infrastructure sectors where servo motion reliability directly impacts production safety and throughput.

In oil and gas processing facilities, the drive controls precision valve actuators and pump skid positioning systems in classified hazardous areas, where its STO safety function provides the rapid de-energization response required by functional safety standards. Cabinet installations in offshore platforms and onshore compressor stations benefit from the drive’s wide operating temperature range and vibration-rated mounting, which withstand the structural dynamics of rotating machinery environments.

In mining and mineral processing, the 2198-D012-ERS3 drives conveyor tensioning systems, crusher feed regulators, and flotation cell agitators. The shared DC bus architecture recovers regenerative energy from descending conveyor loads, reducing net energy consumption in high-tonnage bulk material handling operations. The drive’s sealed power stage resists the conductive dust and moisture ingress common in underground and open-cut mining environments.

In electric power generation and grid infrastructure, the drive is used in turbine blade pitch control systems and transformer tap-changer actuators, where precise angular positioning and fast fault response are essential for grid stability. Its EtherNet/IP connectivity allows integration with SCADA and DCS platforms via Rockwell’s FactoryTalk suite, enabling remote diagnostics and predictive maintenance scheduling.

In water and wastewater treatment, the drive controls dosing pump drives, filter press mechanisms, and sludge dewatering centrifuges. Its resistance to high-humidity environments and corrosive chemical atmospheres — common in chlorination and anaerobic digestion facilities — ensures long service intervals between preventive maintenance cycles.

In metallurgy and steel production, the 2198-D012-ERS3 is integrated into rolling mill positioning systems, ladle transfer car drives, and continuous casting withdrawal units. The drive’s high peak current capability supports the aggressive torque demands of heavy-load acceleration in these applications, while its thermal management design sustains rated output at the elevated ambient temperatures typical of melt shop environments.
