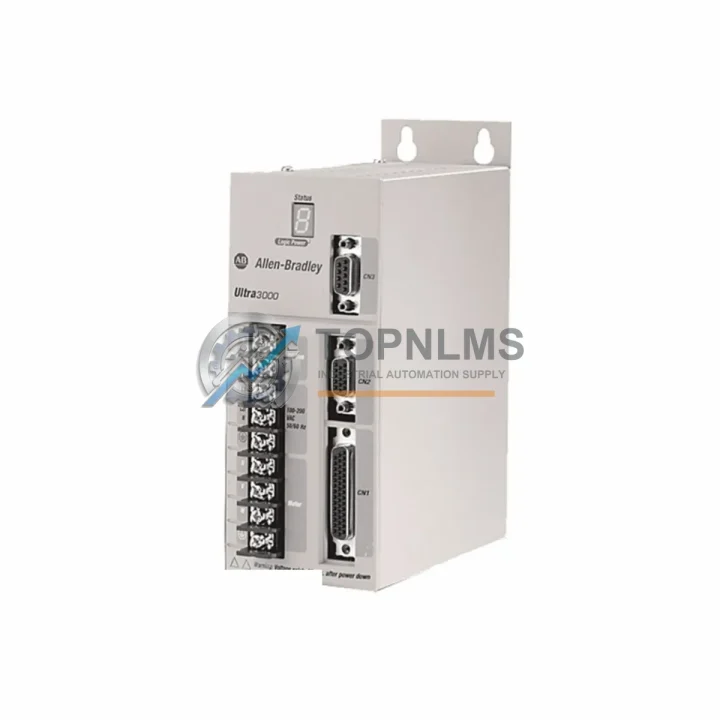

Allen-Bradley 2098-DSD-HV050-SE Ruggedized Servo Drive Module

Product Overview

Allen-Bradley 2098-DSD-HV050-SE Ruggedized Servo Drive Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 2098-DSD-HV050-SE is a high-performance AC servo drive from Rockwell Automation’s Ultra3000 Series, engineered to deliver precise motion control in the most demanding industrial environments. Rated at 50 amperes continuous output with SERCOS (Serial Real-time Communication System) interface, this drive is purpose-built for applications where reliability is non-negotiable — from continuous production lines and heavy-duty machining centers to hazardous-area automation systems in oil & gas, mining, and metallurgical facilities.

Designed to withstand high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and electromagnetic interference (EMI), the 2098-DSD-HV050-SE maintains stable closed-loop servo performance where lesser drives fail. Its robust internal architecture, combined with Rockwell Automation’s proven Ultra3000 firmware, ensures deterministic motion response even under fluctuating load conditions and noisy electrical environments typical of heavy industrial sites.

Rugged Specifications Table

Comprehensive Protection Solutions

The 2098-DSD-HV050-SE is rarely deployed in isolation. In a fully integrated motion control architecture, it operates alongside a suite of complementary Allen-Bradley and Rockwell Automation components that collectively ensure system-wide protection, communication integrity, and power quality.

At the controller level, the drive interfaces directly with Allen-Bradley ControlLogix L7x series PLCs via the SERCOS fiber-optic ring, enabling deterministic, high-speed motion coordination across multi-axis systems. The 1756-M08SE SERCOS Motion Module serves as the bridge between the ControlLogix backplane and up to eight Ultra3000 drives, synchronizing position loops with sub-millisecond precision — critical in applications such as flying shear lines, rotary indexers, and coordinated gantry systems.

Power conditioning is handled upstream by Allen-Bradley 2098-PRE-xP Precharge Modules and 2090-Series AC line filters, which suppress conducted EMI before it reaches the drive’s sensitive power stage. In facilities with unstable grid power — common in mining substations and steel mill environments — these filters prevent nuisance trips and protect the drive’s DC bus capacitors from voltage transients.

On the feedback side, the 2098-DSD-HV050-SE is fully compatible with Allen-Bradley MPL-Series (Bulletin 2090) servo motors, which feature high-resolution encoders and thermistor feedback for thermal protection. The 2090-XXNFMF-Sxx feedback cables and 2090-XXNPMF-Sxx power cables are factory-matched to the Ultra3000 drive’s connector pinout, eliminating wiring errors that could cause drive faults in high-vibration environments.

For safety-critical applications requiring SIL 2 or PLd compliance, the drive is typically paired with Allen-Bradley GuardLogix safety PLCs and 440R-series safety relays, which monitor Safe Torque Off (STO) and Safe Stop 1 (SS1) functions. The 1791DS-IB4XOB4 CompactBlock Guard I/O module provides distributed safety I/O at the machine level, reducing wiring runs in large control cabinets. Communication between safety zones is managed through EtherNet/IP safety adapters and DeviceNet safety scanners, ensuring that emergency stop signals propagate within the required response time even across complex multi-zone production lines.

Terminal connectivity within the control cabinet is standardized using Allen-Bradley 1492-Series IEC terminal blocks and 2090-Series drive interconnect kits, which simplify installation, reduce commissioning time, and support future maintenance by field technicians unfamiliar with the original wiring layout.

Application in Critical Infrastructure

The 2098-DSD-HV050-SE has established a strong track record across the most demanding sectors of critical infrastructure, where unplanned downtime carries severe operational and financial consequences.

Oil & Gas: In upstream drilling and midstream pipeline compression stations, servo drives must operate continuously in environments saturated with hydrogen sulfide, methane, and corrosive aerosols. The Ultra3000 2098-DSD-HV050-SE, installed within NEMA 4X or IP66-rated control enclosures, drives precision actuators on valve positioners, chemical injection pumps, and wellhead control systems. Its SERCOS interface ensures that position commands from the supervisory PLC are executed with the repeatability required for custody transfer metering and emergency shutdown (ESD) valve actuation.

Mining & Mineral Processing: Conveyor belt tensioning systems, ore crusher feed regulators, and flotation cell agitators in underground and open-pit mining operations subject servo drives to extreme vibration, coal dust ingress, and wide ambient temperature swings. The 2098-DSD-HV050-SE’s robust power stage and comprehensive fault diagnostics — accessible via Rockwell’s DriveExplorer or Studio 5000 Logix Designer software — allow maintenance engineers to identify and resolve drive faults remotely before they escalate to production stoppages.

Electric Power Generation & Transmission: In thermal power plants and hydroelectric facilities, servo drives control turbine governor actuators, cooling water valve positioners, and excitation system components. The drive’s compliance with EN 61800-3 Category C3 EMC standards makes it suitable for installation in high-voltage switchgear rooms where conducted and radiated interference levels are significantly elevated.

Water & Wastewater Treatment: Municipal and industrial water treatment plants rely on servo-driven dosing pumps, filter press actuators, and sludge dewatering systems that must operate 24/7 in high-humidity, chemically aggressive atmospheres. The 2098-DSD-HV050-SE’s sealed power module and conformal-coated control board option provide the corrosion resistance needed for long-term reliability in these environments.

Metallurgy & Steel Production: Rolling mill main drives, coiler tension regulators, and continuous casting withdrawal systems demand servo drives capable of sustaining high peak torque output while rejecting the intense electromagnetic interference generated by large induction furnaces and arc furnaces. The Ultra3000’s advanced current loop bandwidth and adaptive notch filtering make it well-suited to these high-interference, high-dynamic-load applications.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all functional defects attributable to manufacturing or component failure under normal operating conditions as specified in the Allen-Bradley 2098-DSD-HV050-SE user manual. If a fault is confirmed within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference, fault description, and any available diagnostic data from the drive’s fault log.

Q2: How is each unit tested before shipment?
Every 2098-DSD-HV050-SE unit undergoes a multi-stage pre-shipment inspection that includes visual inspection for physical damage, power-on functional verification, communication interface check (SERCOS link establishment), and parameter upload/download test using Rockwell Automation’s DriveExplorer software. Units that do not pass all test stages are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is this drive compatible with my existing ControlLogix or CompactLogix system?
Yes. The 2098-DSD-HV050-SE is fully compatible with Allen-Bradley ControlLogix (1756-L6x, L7x, L8x) and SoftLogix platforms when paired with a 1756-M08SE or 1756-M16SE SERCOS motion module. It is not natively compatible with EtherNet/IP-only motion controllers (such as Kinetix 5500/5700) without a protocol gateway. If you are unsure about compatibility with your specific controller firmware version, contact our technical team before ordering.

Q4: Can TOPNLMS support long-term supply and replacement for discontinued or hard-to-source Ultra3000 drives?
Yes. TOPNLMS maintains a dedicated inventory of Allen-Bradley Ultra3000 series drives, including the 2098-DSD-HV050-SE and related variants, specifically to support customers whose production lines depend on legacy Rockwell Automation motion systems. We source from authorized distributors and verified surplus channels, and we can provide advance purchase agreements for customers requiring guaranteed stock availability over multi-year maintenance contracts. Contact us to discuss your long-term supply requirements.
