Allen-Bradley 2098-DSD-010X Ultra 3000 Servo Drive Replacement

Product Overview

Allen-Bradley 2098-DSD-010X Ultra 3000 Servo Drive Replacement: Seamless Migration from Legacy Motion Control Systems

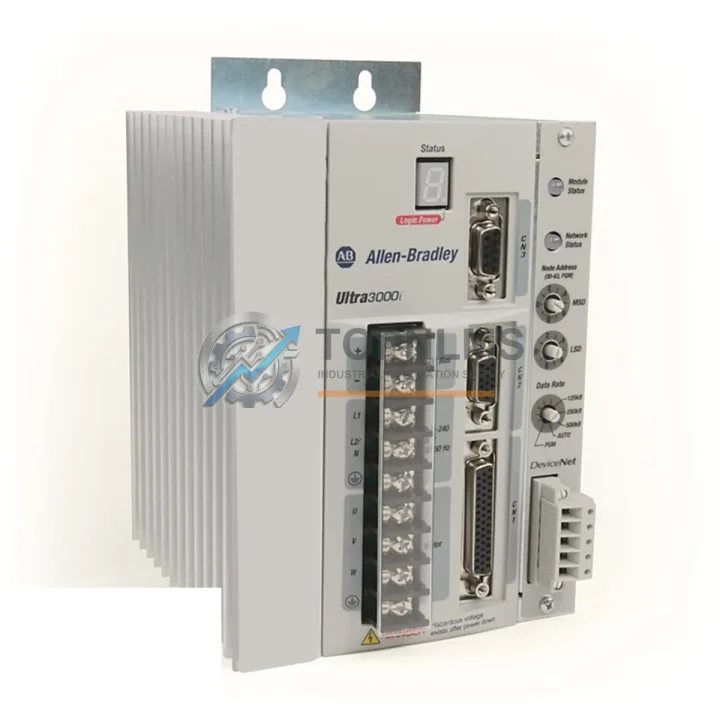

The Allen-Bradley 2098-DSD-010X is a compact digital servo drive from Rockwell Automation’s Ultra 3000 Series, designed for single-axis motion control in demanding industrial environments. As this model approaches end-of-life and spare parts become increasingly scarce, many plant engineers and system integrators are now planning structured migration paths to maintain uptime and protect their automation investments. TOPNLMS maintains verified stock of the 2098-DSD-010X and provides full technical support for both direct replacement and system-level upgrade projects.

Whether you are replacing a failed unit on an existing Ultra 3000 motion system, consolidating aging servo axes ahead of a broader controls modernization, or sourcing a tested spare to reduce unplanned downtime risk, the 2098-DSD-010X available through TOPNLMS is inspected, function-tested, and shipped with a 12-month warranty covering both parts and labor support.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 2098-DSD-010X replacement rarely involves the drive alone. In most Ultra 3000 motion systems, the servo drive operates as part of a tightly integrated axis architecture. During migration or emergency replacement, engineers typically need to address several adjacent components to ensure a clean, validated swap.

The 2090-XXNFMF-S23 SERCOS fiber optic cable is the most commonly required accessory when the replacement drive is being integrated into an existing SERCOS ring topology. If the original cable shows wear or the fiber connectors are damaged, replacing it alongside the drive eliminates a common source of post-swap communication faults. Similarly, the 2090-UXBB-D10S07 servo motor feedback cable should be inspected and replaced if the insulation shows signs of heat damage or mechanical stress — a degraded feedback cable can cause encoder errors that are easily misdiagnosed as drive faults.

For installations where the 2098-DSD-010X is mounted in a shared control cabinet alongside a 1756-L63 ControlLogix controller or a 1756-M02AE motion module, it is important to verify that the axis configuration in RSLogix 5000 or Studio 5000 Logix Designer still maps correctly after the drive swap. In most cases, the axis parameters — including tuning gains, velocity limits, and fault actions — can be restored from a previously exported .ACD backup without re-commissioning from scratch.

Power integrity is another critical factor. The 2098-PRG-010 shunt module or an equivalent regenerative resistor assembly should be checked for proper sizing relative to the deceleration duty cycle of the application. Undersized shunt capacity is a leading cause of premature drive failure in high-cycle applications such as packaging lines and press feeders. If the existing shunt module is original to the installation, this is an appropriate time to replace it as a preventive measure.

In multi-axis systems, the 2098-DSD-HV030X or other Ultra 3000 high-voltage variants may be present on adjacent axes. While these are not direct replacements for the 010X, they share the same UltraWare configuration environment and the same SERCOS ring architecture, which simplifies mixed-axis troubleshooting and parameter management. Keeping a documented axis map of all drive models in the cabinet is strongly recommended before beginning any swap procedure.

For facilities that are using this replacement as a trigger for a broader modernization, the Kinetix 5500 or Kinetix 5700 servo drive families represent Rockwell Automation’s current-generation replacements for the Ultra 3000 platform. These drives use EtherNet/IP instead of SERCOS, which requires updated motion modules and network infrastructure, but they offer significantly improved diagnostics, integrated safety, and long-term parts availability. TOPNLMS can supply both the legacy 2098-DSD-010X for immediate continuity and Kinetix-series components for phased modernization projects.

Retrofit Guidance FAQ

Q: Can I swap the 2098-DSD-010X without rewiring the motor power and feedback cables?
A: In most cases, yes. The 2098-DSD-010X uses the same connector pinout as other drives in the 2098-DSD-0xx family. If you are replacing a unit of the same current rating, the existing 2090-series motor power and feedback cables can typically be reused without modification. Always verify cable condition and connector seating before powering up.

Q: Do I need to re-tune the servo after replacement?
A: Not necessarily. If you have a saved UltraWare parameter file (.drv) from the original drive, you can upload it to the replacement unit and restore all tuning gains, velocity limits, and I/O assignments. If no backup exists, manual re-tuning using UltraWare’s autotune function is straightforward for most standard inertia loads.

Q: Is the 2098-DSD-010X compatible with SERCOS II motion networks?
A: Yes. The SERCOS-enabled variant of the 2098-DSD-010X supports SERCOS II fiber ring communication at 2 or 4 Mbaud. Ensure the SERCOS node address is set correctly via the drive’s rotary switches before connecting to the ring, and verify that the 1756-M02AE or equivalent motion module recognizes the axis after power-up.

Q: What if my control cabinet has limited space for the replacement drive?
A: The 2098-DSD-010X has the same physical footprint as other drives in the Ultra 3000 10 A class. No additional panel space is required for a like-for-like swap. Ensure adequate clearance above and below the drive for airflow, as specified in Rockwell publication 2098-IN003.

Q: Can this drive be used as a direct replacement for a failed 2098-DSD-010?
A: The 2098-DSD-010X is the enhanced variant of the 2098-DSD-010, incorporating additional I/O and firmware improvements. It is backward-compatible with the same motor and feedback wiring. Parameter files from the original 010 may require minor revision in UltraWare to account for the additional I/O points available on the 010X.

Q: What communications protocols does this drive support?
A: The 2098-DSD-010X supports step/direction, analog ±10 V velocity/torque command, and SERCOS II (on SERCOS-equipped variants). It does not natively support EtherNet/IP or DeviceNet. For EtherNet/IP-based motion control, consider the Kinetix 5500 as a migration target.

Warranty Assurance

Every 2098-DSD-010X unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection process includes power-on functional testing, output current verification, communication interface validation, and visual inspection for connector integrity and component condition. Units that do not pass all inspection criteria are not shipped.

In the event of a warranty claim, TOPNLMS provides a straightforward return and replacement process: contact our technical team at [email protected] or +86 18359293191 to initiate an RMA. We will assess the returned unit and dispatch a verified replacement within the agreed lead time. Our warranty covers functional failure under normal operating conditions and does not require the customer to prove the cause of failure for standard replacement requests.

For time-critical applications where downtime cost is high, we recommend discussing advance-replacement arrangements at the time of purchase. TOPNLMS maintains buffer stock of high-demand Ultra 3000 components specifically to support emergency dispatch requirements for industrial customers.

All units are packed in anti-static shielding with foam cushioning and shipped via tracked international courier. Export documentation, including commercial invoice and packing list, is provided with every shipment to facilitate customs clearance.
