Allen-Bradley 2098-DSD-005X Replacement for Ultra 3000

Product Overview

Allen-Bradley 2098-DSD-005X Replacement for Ultra 3000: Smooth Migration from Legacy Servo Systems

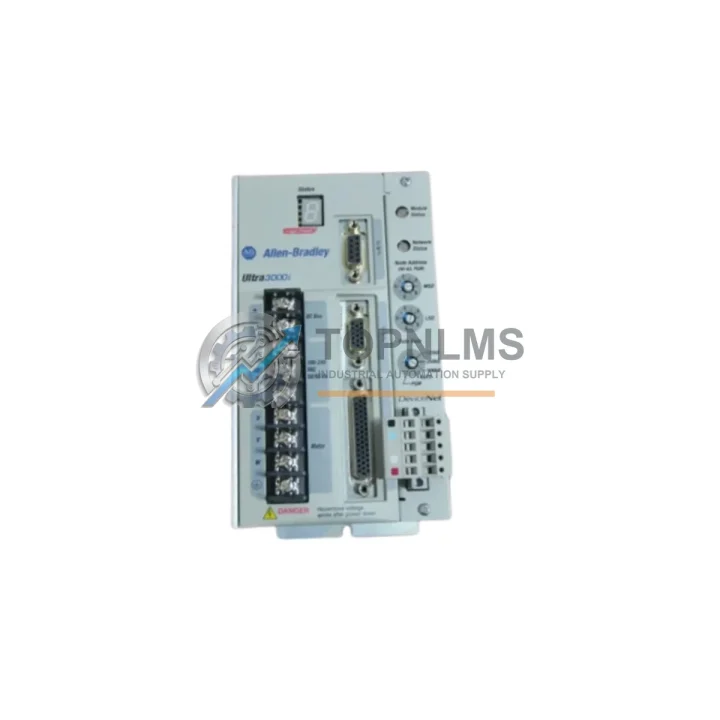

The Allen-Bradley 2098-DSD-005X is a compact, high-performance digital servo drive from the Ultra 3000 series, engineered for precise motion control in demanding industrial automation environments. For facilities operating aging servo infrastructure — whether based on earlier Ultra 3000 variants such as the 2098-DSD-005, discontinued 1398-DDM-xxx drives, or legacy Bulletin 1391 analog servo drives — the 2098-DSD-005X represents a proven, field-validated upgrade path that minimizes engineering rework and reduces commissioning time on the plant floor.

Rated at 0.5 kW continuous output power with a 120/240 VAC single-phase input, this drive is engineered for servo axes requiring tight speed and torque regulation in compact control cabinet footprints. Its SERCOS interface and RS-232/RS-485 serial communication ports ensure compatibility with existing Logix-based motion architectures, allowing engineers to retain their existing motion programs with minimal parameter remapping when migrating from older Ultra 3000 models. The 2098-DSD-005X is a direct replacement candidate for any 0.5 kW class Ultra 3000 drive, and its backward-compatible communication stack makes it a preferred upgrade solution for facilities standardizing on Studio 5000 Logix Designer motion platforms.

For procurement teams evaluating replacement options, the 2098-DSD-005X is available from TOPNLMS with in-stock inventory, pre-shipment functional verification, and a 12-month warranty — providing the supply continuity and quality assurance that industrial maintenance operations require.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy servo system to the 2098-DSD-005X typically involves more than a one-for-one drive swap. In most retrofit projects, engineers evaluate the full motion axis stack — from the controller and communication module down to the motor, feedback wiring, and cabinet power distribution — to ensure the upgraded drive operates reliably within the existing system architecture.

On the controller side, the 2098-DSD-005X integrates directly with ControlLogix and CompactLogix motion controllers via SERCOS I fiber ring topology. Facilities upgrading from standalone indexer-based systems will find that a 1756-M08SE or 1756-M16SE SERCOS interface module in an existing ControlLogix chassis provides the motion coordination layer needed to bring multiple 2098-DSD-005X axes under unified Logix control. For smaller machine cells, a CompactLogix 1769-L33ERM controller with integrated motion can serve as the central coordinator without requiring a separate motion module, reducing rack space and wiring complexity in compact control cabinets.

Motor compatibility is a critical checkpoint in any Ultra 3000 migration. The 2098-DSD-005X pairs natively with MPL-Series and TL-Series servo motors, which are the standard motor families for this drive class. When replacing a system that used resolver-based motors with the legacy 1398-DDM-xxx drives, engineers should verify whether the existing motor supports encoder feedback or whether a motor upgrade to an MPL-A-Series unit is required. The 2090-XXNFMF-Sxx feedback cable assemblies are commonly specified alongside this drive to ensure signal integrity from motor to drive without re-terminating field wiring at the cabinet entry point.

Power distribution within the control cabinet should also be reviewed during migration. The 2098-DSD-005X requires a clean, regulated 24 VDC logic supply — typically sourced from a 1606-XLP power supply module — separate from the main AC bus. Engineers replacing multiple drives in a single cabinet often install a shared 2098-UWCPRG programming cable to streamline parameter upload and verification across all axes before final commissioning. For I/O signal routing from the drive’s 44-pin connector to standard DIN rail terminal strips, the 2090-K2CK-D15M breakout terminal block is a widely used accessory that reduces wiring errors during panel build and simplifies future maintenance access.

For applications where the legacy system used a 1336 PLUS or 1336 IMPACT AC drive in a coordinated motion role, the transition to the 2098-DSD-005X servo architecture delivers significantly improved dynamic response and position accuracy — particularly in pick-and-place, winding, and cut-to-length applications where the legacy drive’s speed regulation was a limiting factor. In multi-axis systems, the SERCOS fiber ring topology of the Ultra 3000 platform also eliminates the analog noise susceptibility that affected older analog command drives, improving overall system repeatability without changes to the machine mechanical design.

Retrofit Guidance FAQ

Q: Can the 2098-DSD-005X replace a 2098-DSD-005 without rewiring the motor power cable?
A: In most cases, yes. Both models share the same motor power connector pinout for compatible MPL and TL-Series motors. Verify motor nameplate voltage and current ratings against the drive’s output specifications before energizing. Feedback cable compatibility depends on whether the existing motor uses an encoder or resolver — the 2098-DSD-005X supports encoder feedback natively; resolver-based motors require a resolver-to-encoder converter or motor replacement.

Q: Is the SERCOS communication protocol backward-compatible with my existing ControlLogix motion program?
A: Yes. The 2098-DSD-005X uses SERCOS I fiber communication, which is fully supported by 1756-M08SE and 1756-M16SE motion modules. Existing axis configuration parameters in Studio 5000 or RSLogix 5000 can be imported and remapped with minimal changes. Axis tuning parameters — bandwidth, velocity gains, and position loop gains — should be re-verified on the new drive before production restart to account for any mechanical differences between the old and new drive’s output stage characteristics.

Q: Will the drive fit in the existing cabinet space without modification?
A: The 2098-DSD-005X has a compact panel-mount form factor consistent with other Ultra 3000 0.5 kW drives. Mounting hole patterns are compatible with standard Ultra 3000 mounting templates. Verify minimum clearance requirements (top, bottom, and side) per the installation manual to ensure adequate airflow in the existing enclosure, particularly if the cabinet thermal load has increased due to other equipment additions.

Q: What programming software is required for commissioning?
A: Ultra Ware software (Rockwell Automation) is the primary configuration tool for the 2098-DSD-005X. For integrated motion projects, Studio 5000 Logix Designer with the Motion Analyzer add-on provides full axis configuration and diagnostic capability. A 2098-UWCPRG serial programming cable is required for direct drive connection during initial setup and parameter backup.

Q: How do I handle the transition from an analog command interface to SERCOS?
A: If the legacy system used an analog ±10 VDC velocity command from a non-Logix controller, migrating to SERCOS requires adding a compatible SERCOS motion module (such as the 1756-M08SE) to the controller chassis. For facilities not ready to upgrade the controller, the 2098-DSD-005X also supports RS-232/RS-485 serial command modes that can bridge the gap during a phased migration, allowing the drive to be installed and tested before the full controller upgrade is completed.

Warranty Assurance

Every 2098-DSD-005X unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes functional verification including power-on self-test, communication port check, and output stage inspection to confirm operational integrity. Units are packaged in anti-static, shock-resistant materials to prevent transit damage during international shipping.

Should a warranty claim arise, TOPNLMS provides responsive after-sales support with replacement dispatch typically within 3–5 business days. Our technical team can assist with installation guidance, parameter configuration reference, and compatibility verification for your specific machine application. For facilities managing planned maintenance schedules, we recommend sourcing a spare 2098-DSD-005X unit alongside your primary order to eliminate unplanned downtime risk — our inventory depth supports both single-unit and volume procurement without extended lead times.

Long-term supply continuity is supported through our maintained inventory of Ultra 3000 series components and related Allen-Bradley motion hardware, ensuring you can source replacement units for ongoing production needs as your installed base ages beyond the original manufacturer’s support window.

For procurement inquiries, volume pricing, or technical pre-sales consultation, contact our team directly.
