Allen-Bradley 2097-V34PR5-LM Ruggedized Servo Drive

Product Overview

Allen-Bradley 2097-V34PR5-LM Ruggedized Servo Drive: Industrial Resilience for Harsh Environments

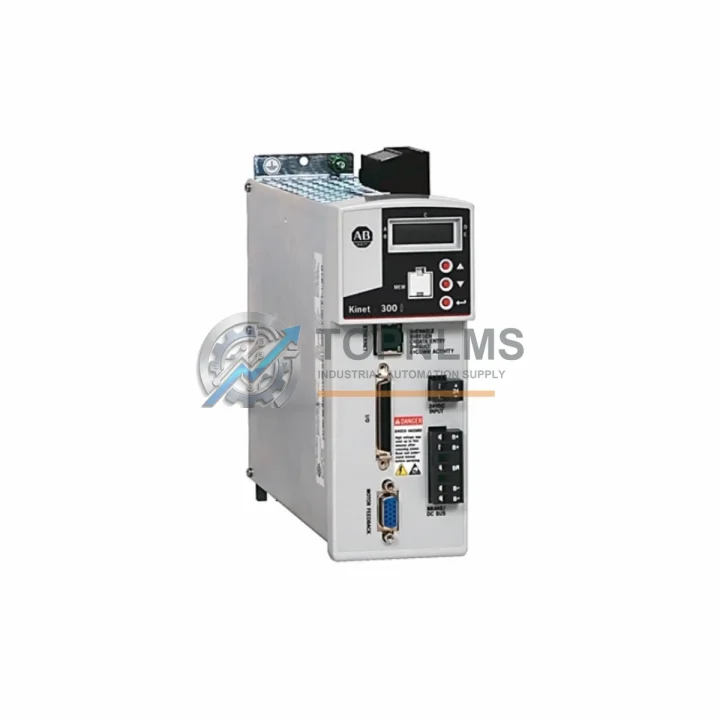

The Allen-Bradley 2097-V34PR5-LM is a single-axis servo drive from the Kinetix 300 series, engineered by Rockwell Automation to deliver precise, reliable motion control in the most demanding industrial environments. Rated at 2.0 kW and equipped with native EtherNet/IP connectivity, this drive is purpose-built for continuous-duty applications where uptime, accuracy, and electromagnetic resilience are non-negotiable. Whether deployed in high-temperature press rooms, dust-laden packaging lines, or vibration-intensive heavy manufacturing cells, the 2097-V34PR5-LM maintains stable closed-loop servo performance without compromise.

Designed within Rockwell Automation’s integrated motion architecture, the 2097-V34PR5-LM interfaces seamlessly with Allen-Bradley CompactLogix and ControlLogix PLCs via the Studio 5000 Logix Designer environment. This tight integration eliminates the need for third-party motion controllers and reduces commissioning time significantly. The drive supports standard EtherNet/IP motion instructions, enabling synchronized multi-axis coordination across complex machine architectures — a critical advantage in automotive assembly, semiconductor handling, and precision packaging applications.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control cabinets, the 2097-V34PR5-LM does not operate in isolation — it functions as a precision node within a broader motion and safety ecosystem. When paired with the Allen-Bradley 2097-V34PR3 Kinetix 300 (0.4 kW variant) or the 2097-V34PR6-LM (4.0 kW variant), engineers can build scalable multi-axis servo systems that share a common EtherNet/IP backbone, simplifying network topology and reducing wiring complexity in the control cabinet.

For power conditioning and protection, the drive is typically installed alongside Allen-Bradley 1606-XLP power supplies, which provide regulated 24 VDC logic power to the control system. In environments with significant harmonic distortion or voltage transients — common in heavy manufacturing and mining substations — an Allen-Bradley 1321-3R line reactor is recommended upstream of the drive to suppress inrush current and protect the drive’s input rectifier stage.

The 2097-V34PR5-LM’s integrated Safe Torque Off (STO) function connects directly to safety relay modules such as the Allen-Bradley MSR127RP Guardmaster Safety Relay, enabling IEC 62061 SIL 2 / ISO 13849 PLd compliant safety circuits without external contactors. This is particularly valuable in collaborative robot cells, press guarding applications, and any zone where personnel access requires certified motion inhibit capability.

On the I/O side, the drive integrates with Allen-Bradley 1734 POINT I/O modules distributed across the machine frame, allowing real-time feedback from proximity sensors, limit switches, and encoder signals to be processed within the same EtherNet/IP scan cycle. For applications requiring deterministic motion synchronization, the Allen-Bradley 1756-EN2T ControlLogix EtherNet/IP communication module provides the backbone infrastructure that keeps the servo loop latency within microsecond tolerances.

In high-vibration environments such as stamping presses or mining conveyors, the drive’s panel-mount IP20 enclosure is reinforced by proper DIN rail mounting within a sealed Rittal AX or TS 8 control cabinet, with vibration-damping mounts and filtered ventilation to maintain thermal stability. Supplementary Allen-Bradley 1492 terminal blocks and 1492-CABLE motor feedback cables complete the wiring harness, ensuring signal integrity from the servo motor back to the drive under continuous mechanical stress.

Application in Critical Infrastructure

The Allen-Bradley 2097-V34PR5-LM Kinetix 300 servo drive is deployed across a wide spectrum of critical infrastructure sectors where motion control reliability directly impacts production safety and output continuity.

In oil and gas upstream processing, the drive controls valve actuators and pump positioning systems on wellhead control panels, where ambient temperatures can swing from sub-zero to +50°C and electromagnetic interference from variable frequency drives and high-voltage switchgear is constant. Its EN 61800-3 Category C2 EMC compliance ensures stable EtherNet/IP communication even in electrically noisy environments.

In electric power generation and transmission, the 2097-V34PR5-LM is used in turbine blade pitch control test rigs and transformer tap-changer positioning systems, where precise angular positioning and repeatable torque control are mandatory. The drive’s multi-turn absolute encoder support enables accurate position retention across power cycles — a critical requirement for grid-connected equipment.

In mining and mineral processing, the drive manages conveyor belt tensioning systems and ore sorting actuators in environments characterized by heavy dust loading, continuous vibration, and frequent voltage sags. Installed within sealed control cabinets with positive-pressure purging, the 2097-V34PR5-LM maintains full servo performance without ingress-related degradation.

In water and wastewater treatment, the drive controls dosing pump actuators and filter press mechanisms in facilities where chemical vapors and high humidity are persistent. Its wide operating humidity range (5–95% non-condensing) and robust thermal management make it a dependable choice for 24/7 continuous process environments.

In metallurgy and steel production, the drive is integrated into rolling mill positioning systems and ladle transfer car controls, where thermal radiation, vibration, and electromagnetic interference from large induction furnaces create one of the harshest electrical environments in industry. The Kinetix 300’s proven field reliability in these conditions has made it a preferred spare-parts specification for maintenance engineers worldwide.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 2097-V34PR5-LM?
All Allen-Bradley 2097-V34PR5-LM units supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and firmware-related issues. Warranty claims are processed with direct technical support from our engineering team, and replacement units are dispatched within 5 business days upon fault confirmation.

Q2: How is each unit tested before shipment?
Every 2097-V34PR5-LM undergoes a pre-shipment functional verification that includes power-on self-test, communication port integrity check (EtherNet/IP), encoder feedback signal validation, and STO circuit continuity test. Units that fail any test parameter are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 2097-V34PR5-LM compatible with my existing CompactLogix or ControlLogix system?
Yes. The Kinetix 300 series is fully compatible with Allen-Bradley CompactLogix (1769-L series) and ControlLogix (1756-L series) controllers running Studio 5000 Logix Designer v20.0 and above. The drive uses standard CIP Motion over EtherNet/IP, requiring no additional motion modules. TOPNLMS technical support can assist with axis configuration and Add-On Profile (AOP) installation if required.

Q4: Can TOPNLMS guarantee long-term supply and cross-reference support for this part?
Yes. TOPNLMS maintains buffer stock of the 2097-V34PR5-LM and its related Kinetix 300 variants to support planned maintenance schedules and emergency breakdowns. We also provide cross-reference analysis for obsolescence scenarios, identifying compatible replacement drives within the Kinetix 5100 or Kinetix 5300 series where direct substitution is feasible. Contact our team for a formal obsolescence management plan tailored to your installed base.
