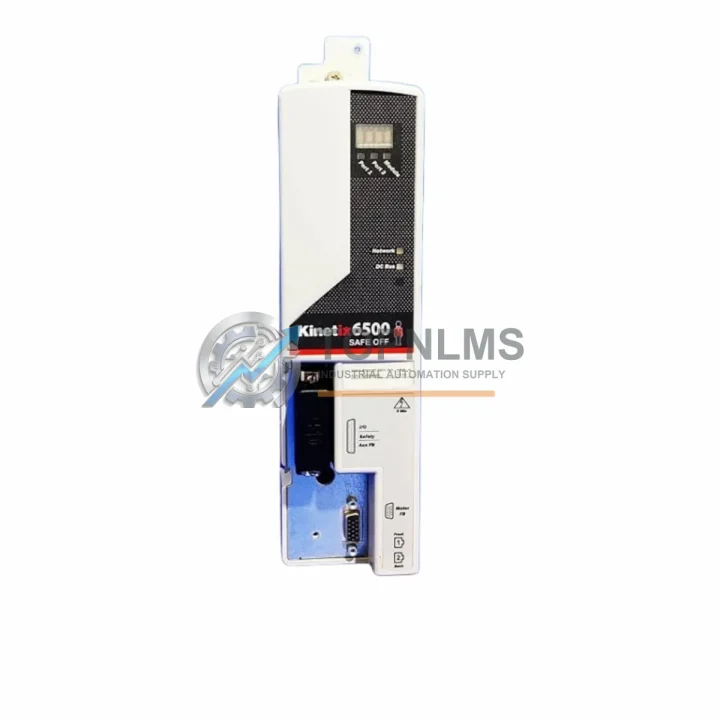

Allen-Bradley 2094-EN02D-M01-S0 Ruggedized Servo Drive Module

Product Overview

Allen-Bradley 2094-EN02D-M01-S0 Ruggedized Servo Drive Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 2094-EN02D-M01-S0 is a dual-axis EtherNet/IP servo drive control module from the Kinetix 6500 series, engineered by Rockwell Automation to deliver uncompromising motion control performance in the most demanding industrial environments. Designed for continuous-duty operation across high-temperature, high-humidity, heavy-vibration, and electromagnetically noisy plant floors, this module provides the backbone of precision servo motion in critical production systems worldwide.

Built on the proven Kinetix 6500 integrated motion architecture, the 2094-EN02D-M01-S0 leverages native EtherNet/IP communication to synchronize dual-axis servo loops with deterministic, low-latency control. Its ruggedized construction — featuring conformal-coated PCBs, reinforced connector interfaces, and thermally optimized power staging — ensures stable operation even when ambient temperatures fluctuate, supply voltages fluctuate, or airborne particulates are present. In steel mills, mining conveyors, offshore packaging lines, and chemical processing plants, this module continues to perform where lesser drives fail.

The 2094-EN02D-M01-S0 integrates seamlessly into Rockwell Automation’s Logix control platform. When paired with a ControlLogix or CompactLogix PLC — such as the 1756-L85E or 1769-L36ERM — the module participates in a unified control architecture that eliminates the need for separate motion controllers. The Studio 5000 Logix Designer environment provides full axis configuration, tuning, and diagnostics from a single software interface, dramatically reducing commissioning time and ongoing maintenance overhead.

In high-throughput manufacturing cells, the 2094-EN02D-M01-S0 is typically installed alongside the 2094-BC02-M02-S Kinetix 6500 bus converter and 2094-BL02 bus link modules, forming a modular power rail that distributes DC bus energy efficiently across multiple drive axes. This shared-bus topology reduces cabinet footprint, simplifies wiring, and improves energy recovery during regenerative braking — a critical advantage in servo-intensive applications such as CNC machining centers, robotic welding cells, and high-speed pick-and-place systems.

For applications requiring functional safety, the 2094-EN02D-M01-S0 supports Safe Torque Off (STO) via hardwired safety inputs, enabling integration with safety relay modules such as the MSR127RP or Guardmaster 440C-CR30 safety controllers without sacrificing drive availability. This architecture satisfies SIL 2 / PLd safety requirements under IEC 62061 and ISO 13849-1, making it suitable for guarded machinery, press brakes, and collaborative robot cells where personnel protection is mandatory.

Communication reliability is paramount in industrial networks subject to electromagnetic interference from variable frequency drives (VFDs), arc welders, and high-current bus bars. The 2094-EN02D-M01-S0’s EtherNet/IP port is designed with EMI-hardened magnetics and supports Device Level Ring (DLR) topology, providing automatic network fault recovery in under 3 milliseconds — ensuring that a single cable fault does not interrupt production. When deployed alongside 1783-series Stratix managed switches and 1585-series EtherNet/IP cables, the network infrastructure achieves the determinism required for coordinated multi-axis motion.

Power quality and supply stability directly affect servo drive longevity. The 2094-EN02D-M01-S0 is designed to tolerate input voltage sags, transients, and harmonic distortion common in heavy industrial facilities. When used with a 1606-XLS series power supply or a 2094-series line interface module (LIM), the system maintains regulated DC bus voltage even during upstream grid disturbances, protecting both the drive and the connected servo motors from damaging voltage spikes.

Thermal management is a key differentiator of the Kinetix 6500 platform. The 2094-EN02D-M01-S0 employs an integrated heat sink and forced-air cooling path that channels airflow efficiently through the control cabinet. In ambient temperatures up to 50°C (with derating), the module maintains full rated output current, making it suitable for foundry environments, outdoor enclosures in tropical climates, and server-room-adjacent control panels where cooling capacity is limited.

As a spare part and replacement module, the 2094-EN02D-M01-S0 offers exceptional value for maintenance teams managing aging Kinetix 6500 installations. Its plug-and-play compatibility with existing 2094-series power rail infrastructure means that axis replacement requires no rewiring of the power bus — only the axis module is swapped, and the drive configuration is restored from the ControlLogix controller’s non-volatile memory. This minimizes mean time to repair (MTTR) and reduces the risk of wiring errors during emergency maintenance.

Rugged Specifications Table

Comprehensive Protection Solutions

The 2094-EN02D-M01-S0 is rarely deployed in isolation — its full capability is realized within a coordinated system of protection, control, and communication components. At the power entry point, a 2094-series line interface module (LIM) provides EMI filtering, soft-start inrush limiting, and ground fault detection, protecting the entire drive system from upstream power quality events. The 2094-BC02-M02-S bus converter converts incoming AC power to a regulated DC bus shared across all axis modules on the rail, while the 2094-BL02 bus link extends this bus to additional power rail segments in larger multi-axis cabinets.

On the control side, the 2094-EN02D-M01-S0 communicates with ControlLogix processors such as the 1756-L85E over a standard EtherNet/IP network, executing motion instructions generated by Studio 5000 Logix Designer. I/O modules such as the 1756-IB16 digital input module and 1756-OB16 digital output module handle discrete field signals — limit switches, proximity sensors, and solenoid valves — that coordinate with servo motion sequences. For analog process feedback, the 1756-IF8 analog input module provides high-resolution signals from encoders, load cells, and pressure transducers.

Safety integration is achieved through the 1791DS-IB12 GuardLogix safety I/O module, which monitors E-stop circuits, light curtains, and door interlocks, and commands the 2094-EN02D-M01-S0’s STO input when a safety event is detected. The 440C-CR30 Guardmaster safety relay provides a hardwired safety layer for applications where a dedicated safety PLC is not present. For communication network protection, the 1783-BMS10CGP Stratix 5700 managed switch provides VLAN segmentation, port security, and DLR ring management, ensuring that the EtherNet/IP motion network remains isolated from corporate IT traffic and immune to broadcast storms.

Terminal modules such as the 1492-AIFM8-F-5 analog interface module simplify field wiring to the I/O system, while 1492-series feed-through terminal blocks provide organized, labeled wiring points within the control cabinet. Together, these components form a complete, validated automation architecture around the 2094-EN02D-M01-S0 — from power entry to field device — that meets the reliability and safety standards demanded by continuous industrial production.

Application in Critical Infrastructure

In oil and gas upstream facilities, the 2094-EN02D-M01-S0 drives precision servo axes on wellhead control systems, pipeline valve actuators, and compressor skid positioning mechanisms. Its STO safety function satisfies the emergency shutdown (ESD) requirements of IEC 61511, and its conformal-coated PCBs resist the hydrogen sulfide (H₂S) and salt-laden atmospheres common in offshore and coastal installations.

In underground mining operations, the module controls conveyor belt tensioning drives, rock drill feed axes, and ore crusher positioning systems. The Kinetix 6500 platform’s tolerance for wide input voltage variation — a common condition in mine power distribution networks fed by long cable runs — ensures that the 2094-EN02D-M01-S0 maintains stable torque output even when supply voltage drops during motor starting events elsewhere on the network.

Power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — rely on the 2094-EN02D-M01-S0 for turbine blade pitch control, fuel valve positioning, and generator excitation system servo loops. The module’s deterministic EtherNet/IP communication ensures that control loop cycle times remain consistent even under heavy network load, a critical requirement for grid-frequency regulation applications.

In water and wastewater treatment plants, the 2094-EN02D-M01-S0 drives chemical dosing pump servo axes, filter press positioning systems, and UV disinfection lamp carriage drives. Its resistance to high ambient humidity and chemical vapors — common in chlorination and ozonation areas — makes it a preferred choice for plant engineers specifying long-service-life automation components.

Metallurgical and steel mill applications place the most extreme demands on servo drive hardware. Rolling mill gap control, continuous casting mold oscillation, and ladle transfer car positioning all require the high dynamic response and thermal robustness that the Kinetix 6500 platform provides. The 2094-EN02D-M01-S0’s ability to operate continuously at elevated ambient temperatures, combined with its regenerative energy recovery capability, makes it an economically and technically superior choice for these energy-intensive processes.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects, component failures, and functional non-conformance under normal operating conditions. If a module fails within the warranty period, contact us at [email protected] with your order number and a description of the fault. We will arrange return shipping, perform functional testing, and issue a replacement or full refund within 5–7 business days of receiving the returned unit.

Q2: How is each 2094-EN02D-M01-S0 unit tested before shipment?
Every unit undergoes a multi-point pre-shipment inspection that includes visual inspection for physical damage, power-on functional verification, EtherNet/IP communication port testing, and STO input/output continuity checks. Units that fail any inspection criterion are quarantined and not shipped. A test report is available upon request for customers requiring documented quality evidence.

Q3: Is this module compatible with my existing Kinetix 6500 power rail and ControlLogix system?
Yes. The 2094-EN02D-M01-S0 is a standard Kinetix 6500 axis module and is mechanically and electrically compatible with all 2094-series power rails and bus converters. It is supported by Studio 5000 Logix Designer v20.00 and later, and is compatible with all ControlLogix and CompactLogix processors that support integrated motion on EtherNet/IP. If you are replacing an existing axis module, no power rail rewiring is required.

Q4: Can you guarantee long-term supply and support for this module?
We maintain dedicated stock of the 2094-EN02D-M01-S0 and other Kinetix 6500 series components to support customers with long-lifecycle installations. For customers managing planned maintenance programs or multi-year service contracts, we offer reserved stock arrangements and priority fulfillment agreements. Contact [email protected] to discuss your long-term supply requirements.
