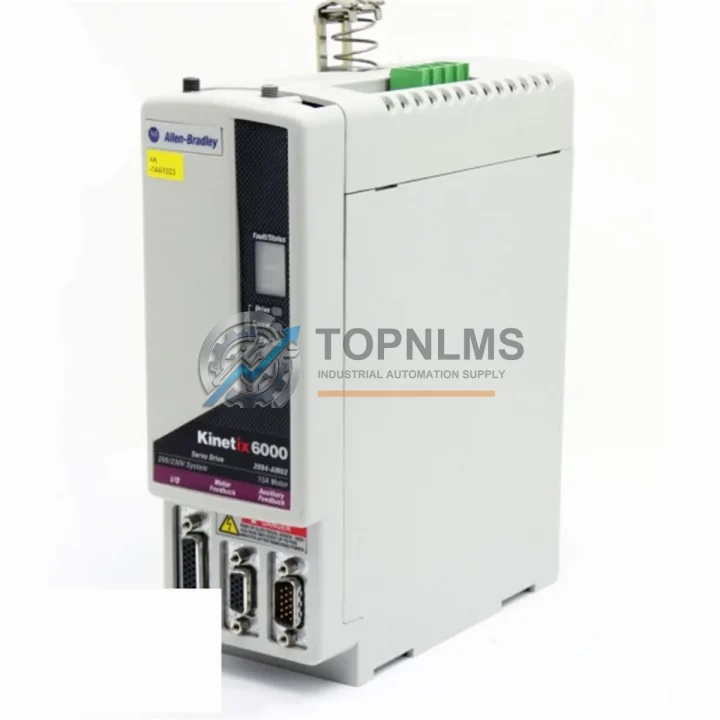

Allen-Bradley 2094-AM02 Original Industrial Spare Kinetix 6000 Compatible

Product Overview

Allen-Bradley 2094-AM02 Original Industrial Spare Kinetix 6000 Compatible: System Stability & Industrial Spare Maintenance Value

In high-demand manufacturing environments, servo drive system integrity is non-negotiable. The Allen-Bradley 2094-AM02 is a Shared DC Bus Servo Expansion Axis Module within the Kinetix 6000 multi-axis servo drive family — a platform trusted across automotive assembly lines, packaging machinery, material handling conveyors, and precision CNC applications worldwide. Maintaining a verified original spare of the 2094-AM02 in your facility’s critical parts inventory is one of the most cost-effective decisions a maintenance engineer or plant manager can make.

Unplanned servo axis failures are among the leading causes of extended production downtime. When a Kinetix 6000 axis module fails mid-shift, every minute without a verified replacement translates directly into lost output, delayed shipments, and escalating labor costs. The 2094-AM02 is designed as a plug-compatible expansion module that integrates seamlessly into existing Kinetix 6000 drive frames, allowing maintenance teams to execute a rapid, like-for-like swap without requiring system reconfiguration or re-commissioning of the entire drive cabinet.

This module operates on the shared DC bus architecture that defines the Kinetix 6000 platform’s energy efficiency advantage — regenerative energy from decelerating axes is shared across the bus, reducing overall power consumption and heat generation within the control cabinet. Preserving this architecture during replacement is critical; substituting with non-original or incompatible modules risks bus voltage instability, nuisance faults, and potential damage to adjacent axis modules or the main power rail.

Critical Technical Specs Table

Preventive Maintenance Strategy

A servo axis module replacement should never be treated as an isolated event. The Kinetix 6000 platform is a tightly integrated motion system, and a failure in one axis module is frequently a symptom of broader stress across the drive cabinet. Experienced maintenance engineers use an axis module replacement as a trigger for a comprehensive cabinet inspection — and for good reason.

Begin with the Kinetix 6000 power rail and drive frame (2094-series frame assemblies). The shared DC bus rail that the 2094-AM02 connects to should be inspected for signs of arcing, corrosion on bus bar contacts, or loose module retention hardware. A compromised bus rail can cause recurring axis faults even after a new module is installed.

Next, inspect the 2094-AC09-M01-S1 or equivalent Kinetix 6000 Integrated Axis Module (IAM) — the master drive that governs the shared DC bus. If the IAM’s internal power supply or control board is degraded, expansion axis modules like the 2094-AM02 will experience intermittent faults regardless of their own condition. Keeping a spare IAM or at minimum scheduling its diagnostic check during any axis module replacement is sound preventive practice.

Servo feedback cables and encoder connectors are a frequently overlooked failure point. The 2090-series SERCOS fiber optic cables and motor feedback cables routed between the drive frame and servo motors should be inspected for jacket damage, tight bend radii, and connector pin corrosion. Degraded feedback signals cause position errors and can trigger axis faults that mimic module hardware failure.

While the cabinet is open, verify the condition of the 1756-series ControlLogix I/O modules or 1769-series CompactLogix I/O modules that interface with the motion control program. Digital output modules driving servo enable signals and analog input modules monitoring drive status are subject to the same thermal aging as the drive hardware itself. A preventive inspection of these modules — checking for blown fuses, loose terminal connections, and indicator LED status — adds minimal time but significantly reduces the risk of a secondary fault after the servo axis is restored.

The 1756-M02AE or 1756-M03SE motion control modules within the ControlLogix chassis that coordinate the Kinetix 6000 axes should also be reviewed. Firmware currency and axis configuration integrity should be confirmed before the replacement axis module is commissioned, ensuring the motion program parameters are correctly mapped to the new hardware.

Do not overlook the 24VDC control power supply feeding the drive frame’s logic circuits. A supply operating at the edge of its voltage tolerance — common in aging panels — can cause erratic axis module behavior. Verifying output voltage under load and inspecting capacitor condition in the power supply is a low-cost step that protects the investment in a new axis module.

Finally, review the terminal blocks, DIN rail mounted fuse holders, and surge protection devices within the servo drive cabinet. Loose terminal connections on motor power leads or control wiring are a leading cause of intermittent faults in servo systems. Torque-checking all terminals in the affected circuit zone during a planned replacement window is a best practice that pays dividends in system uptime.

Strategic Replacement Solutions

The 2094-AM02 has been in service across Kinetix 6000 installations for well over a decade. Many facilities running legacy Kinetix 6000 systems face a common challenge: the original drive hardware is no longer in active production, and sourcing verified original spare modules through standard distribution channels has become increasingly difficult and expensive.

Maintaining a stock of original 2094-AM02 modules is the most reliable strategy for facilities committed to preserving their existing Kinetix 6000 infrastructure. Original modules require no firmware modifications, no axis parameter re-mapping, and no changes to the ControlLogix motion program — the replacement is transparent to the control system, minimizing commissioning time and the risk of configuration errors during a high-pressure downtime event.

For facilities evaluating a longer-term migration path, the 2094-AM02 can serve as a bridge solution — maintaining production continuity while capital planning for a phased upgrade to the Kinetix 5700 or Kinetix 6500 platform proceeds. This approach avoids the risk and cost of an emergency full-system replacement driven by an unplanned failure, instead allowing the upgrade to be scheduled during planned maintenance windows.

Our inventory of 2094-AM02 modules is sourced from verified OEM channels, functionally tested prior to shipment, and backed by a 12-month quality warranty. Each unit is inspected for physical integrity, connector condition, and firmware version compatibility before dispatch. Orders are processed promptly, with worldwide shipping available to support facilities across Asia, Europe, and the Americas.
