Allen-Bradley 2093-PRS4 Replacement for Kinetix 2000: Seamless Power Rail Upgrade

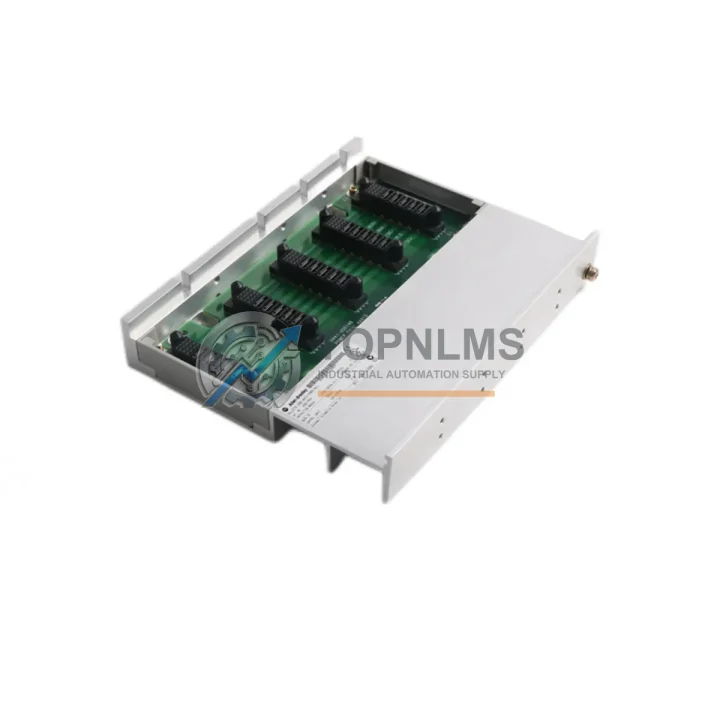

The Allen-Bradley 2093-PRS4 is a 4-Axis Slim Power Rail designed for the Kinetix 2000 multi-axis servo drive system. As legacy motion control infrastructure ages and original components reach end-of-life, plant engineers and procurement teams face increasing pressure to source reliable, drop-in replacements that preserve existing wiring, cabinet layouts, and drive configurations without triggering a full system redesign. The 2093-PRS4 addresses this challenge directly: it maintains full mechanical and electrical compatibility with the Kinetix 2000 platform, allowing facilities to extend the operational life of their servo systems while deferring costly full-line migrations.

Whether you are replacing a failed power rail in a running production cell, building a spare-parts buffer for a multi-axis Kinetix 2000 installation, or executing a phased modernization from an older Kinetix 6000 or Kinetix 6200 architecture, the 2093-PRS4 provides a validated, OEM-specification solution. Every unit shipped from TOPNLMS undergoes pre-shipment functional verification and is backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Kinetix 2000 power rail replacement rarely involves the rail alone. In most field scenarios, the 2093-PRS4 is installed alongside or in the context of adjacent components that must be verified or simultaneously refreshed to ensure system integrity.

The Integrated Axis Module (IAM) — typically a 2093-AC05-MP5 or similar Kinetix 2000 IAM variant — sits directly on the power rail and governs the SERCOS II communication loop that coordinates all axis drives. If the IAM firmware or hardware is outdated, replacing the power rail alone will not resolve communication faults. Engineers should verify IAM compatibility before commissioning the new rail.

Axis Modules (AM), such as the 2093-AM01 or 2093-AM03, plug into the remaining slots on the 2093-PRS4. During a rail swap, it is best practice to inspect AM connector pins and bus bar contacts for oxidation or mechanical wear, particularly in high-cycle or high-humidity environments. Replacing worn AMs at the same time as the power rail eliminates a second maintenance window.

The DC bus capacitor bank and shunt module — often a 2093-PRF series filter or a 2090-XXLF line filter — should be inspected when the rail is removed. These components condition the incoming AC supply before it reaches the IAM and are frequently overlooked during reactive maintenance. Proactive replacement during a planned rail swap reduces unplanned downtime risk.

For facilities migrating from an older Kinetix 6000 or Kinetix 6200 platform to Kinetix 2000, the 2093-PRS4 is often the anchor component around which the new drive stack is assembled. In these migration projects, the servo motor feedback cables — typically 2090-XXNFMF series feedback cables — may need to be re-terminated or replaced to match Kinetix 2000 connector pinouts, even when the servo motors themselves are retained.

Panel-level infrastructure also warrants attention. The 1492-AIFM series analog interface modules or 1756-IB16 ControlLogix digital I/O modules that feed position commands and enable signals to the drive system should be verified for firmware compatibility with the Logix controller version managing the Kinetix 2000 axis tags. In many retrofit projects, a 1756-M02AE or 1756-M08SE SERCOS interface module in the ControlLogix rack is the upstream controller; confirming its RSLogix 5000 / Studio 5000 project revision before commissioning the new rail prevents axis configuration mismatches.

Finally, the programming cable — a 1784-U2DHP USB-to-DH+ adapter or a standard USB-to-serial 1747-UIC — is essential for any on-site parameter backup and restore operation before and after the rail swap. TOPNLMS recommends that customers back up all drive parameters via DriveExplorer or Studio 5000 Logix Designer before removing the old rail, and restore them to the new configuration after installation to minimize commissioning time.

Retrofit Guidance FAQ

Q: Do I need to rewire the servo motor power cables when replacing the 2093-PRS4?
A: No. The 2093-PRS4 is a passive power distribution rail. Motor power cables connect to the Axis Modules (AM), not directly to the rail. As long as the AMs are retained and undamaged, no motor cable rewiring is required.

Q: Will my existing SERCOS II fiber-optic ring need to be reconfigured?
A: No. The SERCOS II ring topology is managed by the IAM module, not the power rail. Replacing the rail does not alter the fiber-optic ring address assignments or node order. However, if the IAM is also being replaced, the SERCOS node address must be re-entered in Studio 5000.

Q: Is the 2093-PRS4 compatible with both 200V and 400V Kinetix 2000 IAM variants?
A: Yes. The power rail itself is voltage-agnostic — it distributes the DC bus voltage supplied by the IAM. Voltage class compatibility is determined by the IAM model selected, not the rail.

Q: How much panel depth does the slim rail save compared to standard Kinetix 2000 configurations?
A: The slim form factor of the 2093-PRS4 reduces the overall drive stack depth, which is particularly valuable in retrofit applications where the existing control cabinet has limited depth clearance. Exact dimensional data is available in Rockwell Automation publication 2093-IN001.

Q: Can I mix 2093-PRS4 and 2093-PRS2 rails in the same cabinet?
A: Yes, provided each rail has its own IAM. Each power rail operates as an independent DC bus segment. Multiple rails can coexist in the same cabinet as long as bus sharing rules defined in the Kinetix 2000 installation manual are followed.

Q: What is the recommended commissioning sequence after installing the replacement rail?
A: (1) Verify all AM and IAM connectors are fully seated. (2) Apply control power only and confirm no fault LEDs. (3) Restore drive parameters from backup. (4) Apply bus power and perform a low-speed jog test on each axis before returning to full production speed.

Warranty Assurance

Every Allen-Bradley 2093-PRS4 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. This warranty covers manufacturing defects, internal component failures, and operational faults arising under normal industrial use conditions as defined in the Rockwell Automation product specification.

Pre-shipment testing: Each unit undergoes visual inspection, connector integrity verification, and functional checks before dispatch. Units that do not pass inspection are quarantined and not shipped.

Replacement support: In the event of a warranty claim, TOPNLMS will arrange a replacement unit or issue a credit note within the warranty period. Customers are asked to provide a brief fault description and, where possible, a photo of the fault condition to expedite the claim process.

After-sales response: Our technical team responds to warranty and application inquiries within 1 business day. For urgent production-down situations, priority handling is available — please indicate “PRODUCTION DOWN” in your inquiry subject line.

Procurement assurance: Stock availability is confirmed at time of order. Lead time for in-stock units is typically 3–7 business days for international shipments via DHL Express or FedEx International Priority. A packing list and test report are included with every shipment.
