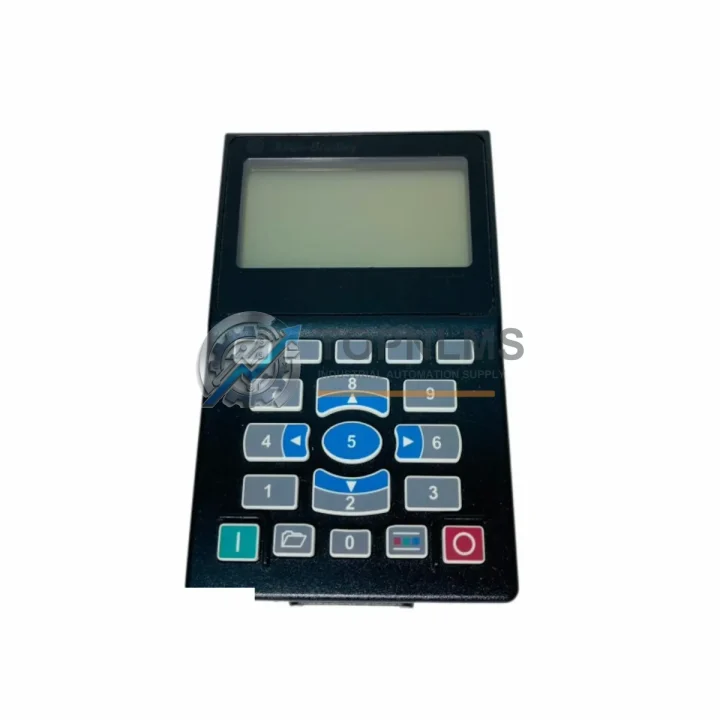

Allen-Bradley 20-HIM-A6 Ruggedized HMI Module for Harsh Environments

Product Overview

Allen-Bradley 20-HIM-A6 Ruggedized HMI Module for Harsh Environments

The Allen-Bradley 20-HIM-A6 is a PowerFlex Architecture Class Human Interface Module engineered for demanding industrial environments where reliability is non-negotiable. Designed to integrate seamlessly with Allen-Bradley PowerFlex variable frequency drives, this HMI module delivers precise parameter programming, real-time drive monitoring, and fault diagnostics in environments characterized by high temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference. Whether deployed on a continuous production line, inside a sealed control cabinet, or mounted at a remote field station in a hazardous area, the 20-HIM-A6 maintains stable communication and operational integrity where lesser components fail.

At TOPNLMS, every 20-HIM-A6 unit is sourced from verified supply channels, individually inspected, and function-tested prior to dispatch. We maintain ready stock to support urgent MRO requirements, planned shutdowns, and long-term spares programs across oil and gas, mining, power generation, water treatment, metallurgy, and heavy manufacturing sectors.

Rugged Specifications Table

Comprehensive Protection Solutions

The 20-HIM-A6 does not operate in isolation — it is a critical interface node within a broader Allen-Bradley PowerFlex drive system. In a typical control cabinet deployment, the module connects directly to a PowerFlex 700 or PowerFlex 70 variable frequency drive via the DPI peripheral port, enabling operators to configure acceleration ramps, set speed references, monitor output current, and acknowledge fault conditions without requiring a laptop or external programming tool. This local HMI capability is especially valuable in remote field installations where network connectivity to a supervisory SCADA system may be intermittent.

For system architects building redundant or safety-rated automation architectures, the 20-HIM-A6 pairs naturally with Allen-Bradley 20-750-DNET1 DeviceNet communication adapters and 20-750-PNET1 PROFINET interface modules, enabling the PowerFlex drive to participate in plant-wide fieldbus networks while the HMI module provides local override and diagnostic capability. In installations governed by IEC 61508 or IEC 62061 functional safety standards, the drive system is often complemented by Allen-Bradley GuardLogix safety PLCs and 1791DS-IB8XOBV4 safety I/O modules, which monitor emergency stop circuits, safety gates, and light curtains. The 20-HIM-A6 supports the operator’s ability to safely jog, stop, and reset the drive during maintenance windows without bypassing the safety architecture.

Power quality and supply stability are equally important in harsh industrial environments. The PowerFlex drive system is typically fed through Allen-Bradley 1321-3R line reactors or 20-RF series EMC filters, which suppress conducted emissions and protect the drive’s rectifier stage from voltage transients caused by nearby welding equipment, large motor starts, or utility switching events. On the control side, 1606-XLP series power supplies provide stable 24 VDC to the control logic, I/O modules, and communication adapters. Terminal blocks from the 1492-J series and 1492-W series provide reliable field wiring termination within the control cabinet, ensuring that signal integrity is maintained even in high-vibration environments such as compressor stations or rolling mills.

For facilities running Logix-based control architectures, the 20-HIM-A6 complements ControlLogix 1756-L7x and CompactLogix 1769-L3x processors, which coordinate drive commands, interlocks, and process setpoints via EtherNet/IP or ControlNet. The HMI module’s local parameter access reduces dependency on the PLC program for routine commissioning tasks, shortening startup time and reducing the risk of inadvertent parameter changes through the control system.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, variable frequency drives controlled by Allen-Bradley PowerFlex platforms regulate pump speeds on crude transfer lines, gas compression trains, and produced water injection systems. The 20-HIM-A6 allows field technicians to verify drive parameters and fault histories at the equipment skid without returning to the control room, reducing mean time to repair (MTTR) in remote or offshore installations. Its sealed connector interface and robust housing resist the ingress of hydrocarbon vapors, salt-laden air, and fine sand particulates common in desert and coastal production environments.

In underground mining operations, the module withstands the mechanical shock and vibration transmitted through conveyor drive structures and haulage systems. Drives equipped with the 20-HIM-A6 manage belt conveyor speeds, ventilation fan ramp rates, and dewatering pump cycles — all critical systems where unplanned downtime carries significant safety and production consequences. The module’s fault logging capability allows maintenance teams to perform root-cause analysis after a trip event, distinguishing between process overloads, thermal faults, and communication errors without specialized diagnostic equipment.

Power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — rely on PowerFlex drives for boiler feed pump control, cooling water circulation, and auxiliary fan regulation. In these applications, the 20-HIM-A6 provides operators with direct access to speed feedback, output frequency, and drive status during commissioning and periodic maintenance outages. Water and wastewater treatment plants similarly deploy PowerFlex drives on aeration blowers, sludge pumps, and chemical dosing systems, where the HMI module’s intuitive interface reduces operator training requirements and supports consistent process control across multiple shift teams.

In metallurgical and steel processing facilities, where ambient temperatures near furnaces and rolling mills can exceed standard equipment ratings, the 20-HIM-A6’s extended temperature tolerance and EMI immunity ensure reliable operation in the presence of high-current bus bars, induction heating equipment, and arc furnace interference. The module’s ability to display real-time drive diagnostics at the point of use supports rapid response to process deviations, protecting both equipment and personnel.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault. We aim to dispatch replacement units within 3 business days of claim verification.

Q2: How is each 20-HIM-A6 unit tested before shipment?
Every unit undergoes a pre-shipment functional inspection that includes visual examination for physical damage, connector integrity checks, and power-on verification of the LCD display and DPI communication interface. Units sourced as surplus new are additionally cross-referenced against Allen-Bradley date codes and firmware revision records to confirm authenticity and compatibility with current PowerFlex drive firmware versions.

Q3: Is the 20-HIM-A6 compatible with all PowerFlex drive variants, and can it replace older HIM revisions?
The 20-HIM-A6 is compatible with the full PowerFlex Architecture Class drive family, including PowerFlex 70, 700, 700S, 700H, and 700L variants. It is a direct replacement for earlier 20-HIM-A3 and 20-HIM-C6S revisions in most applications, subject to firmware compatibility verification. TOPNLMS technical staff can advise on cross-reference compatibility for specific drive firmware versions prior to purchase.

Q4: Can TOPNLMS support long-term or recurring supply requirements for the 20-HIM-A6?
Yes. TOPNLMS maintains ongoing stock of the 20-HIM-A6 and can support blanket purchase orders, scheduled releases, and emergency MRO procurement. For facilities managing large PowerFlex drive populations, we recommend establishing a standing spares agreement to ensure availability during planned shutdowns and unplanned outages. Contact [email protected] or call +86 18359293191 to discuss volume pricing and supply scheduling.
