Allen-Bradley 20-COMM-E Ruggedized EtherNet/IP Adapter

Product Overview

Allen-Bradley 20-COMM-E Ruggedized EtherNet/IP Adapter: Industrial Resilience for Harsh Environments

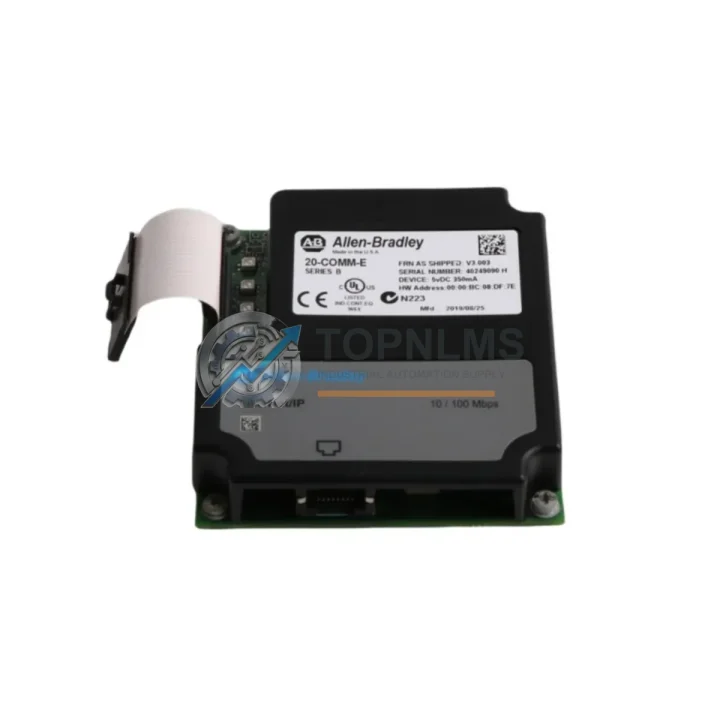

The Allen-Bradley 20-COMM-E is a high-performance EtherNet/IP communication adapter engineered specifically for the PowerFlex 700 series of AC variable frequency drives. Designed and manufactured by Rockwell Automation, this module delivers deterministic, real-time network communication in the most demanding industrial environments — from high-temperature steel mills and dusty mining operations to vibration-intensive offshore platforms and chemically aggressive water treatment facilities. Where network reliability is non-negotiable, the 20-COMM-E is the field-proven solution trusted by automation engineers worldwide.

Built to withstand the rigors of continuous production lines, the 20-COMM-E integrates seamlessly into the PowerFlex 700 peripheral slot, enabling full drive parameter access, real-time diagnostics, and closed-loop speed and torque control over standard EtherNet/IP infrastructure. Its ruggedized design addresses the core challenges of industrial networking: electromagnetic interference (EMI) from adjacent variable frequency drives, power surges from heavy motor loads, thermal cycling in unventilated control cabinets, and mechanical shock from conveyor systems or heavy press machinery.

Rugged Specifications Table

Comprehensive Protection Solutions

The 20-COMM-E does not operate in isolation — it is the communication backbone that ties together an entire control architecture. In a typical PowerFlex 700 drive system deployed in a petrochemical plant, the 20-COMM-E connects the drive to a ControlLogix L73 or CompactLogix L33ER programmable logic controller via a managed industrial Ethernet switch, enabling the PLC to issue speed references, read fault codes, and execute safe-stop sequences without any hardwired I/O overhead. This architecture dramatically reduces panel wiring complexity and accelerates fault diagnosis during unplanned shutdowns.

Within the same control cabinet, the 20-COMM-E works in concert with the 20-HIM-A6 Human Interface Module, which provides local parameter access and drive commissioning without requiring a laptop or engineering workstation on the plant floor. For applications requiring functional safety, the PowerFlex 700S variant paired with the 20-750-S1 Safe Speed Monitor card delivers SIL 2-capable safe torque-off and safe limited speed functions — all networked through the same EtherNet/IP backbone managed by the 20-COMM-E.

In distributed I/O architectures, the 20-COMM-E complements POINT I/O 1734-AENT EtherNet/IP adapter modules, which handle discrete and analog field signals from sensors, limit switches, and pressure transmitters. The combination of drive-level communication via the 20-COMM-E and field-level I/O via 1734-AENT modules creates a unified, single-network control topology that simplifies both commissioning and long-term maintenance. For power distribution and motor protection, the 20-COMM-E-equipped drive system integrates with Allen-Bradley 140M Motor Protection Circuit Breakers and 100-C Series contactors, ensuring coordinated motor protection from the MCC to the drive output.

In applications where legacy serial communication must coexist with modern Ethernet infrastructure, the 20-COMM-E can be deployed alongside the 20-COMM-D DeviceNet adapter or the 20-COMM-P PROFIBUS adapter on separate drives within the same system, allowing a phased network migration without requiring simultaneous drive replacement. For power quality and harmonic mitigation in sensitive environments, the PowerFlex 700 with 20-COMM-E is frequently paired with Allen-Bradley 1321-3R line reactors and 20-RF series EMC filters, ensuring the communication module operates in a clean electrical environment even when multiple large drives share a common bus.

Application in Critical Infrastructure

In oil and gas upstream operations, the 20-COMM-E enables remote monitoring and control of pump jack drives, gas compressor motors, and wellhead injection pump systems from a central SCADA platform. The EtherNet/IP protocol’s implicit messaging capability allows the ControlLogix PLC to receive real-time drive status — current draw, output frequency, DC bus voltage, and fault history — at scan rates as fast as 10 milliseconds, enabling predictive maintenance algorithms to detect bearing wear or winding degradation before a catastrophic failure occurs on an unmanned wellpad.

In underground mining operations, where explosive atmospheres, extreme humidity, and continuous mechanical vibration are constant threats, the PowerFlex 700 drive with 20-COMM-E is deployed in NEMA 4X or IP54-rated enclosures to protect the electronics from water ingress and coal dust accumulation. The drive’s built-in Safe Torque Off (STO) function, commanded over EtherNet/IP via the 20-COMM-E, allows the mine’s safety PLC to de-energize conveyor belt motors within milliseconds of a personnel safety event — without requiring a separate hardwired safety relay circuit.

In municipal water treatment and wastewater facilities, the 20-COMM-E facilitates precise flow control for raw water intake pumps, aeration blowers, and sludge transfer pumps. The ability to adjust pump speed in real time based on flow meter feedback — transmitted via EtherNet/IP from a 1756-IF16 analog input module in the ControlLogix rack — reduces energy consumption by 20–40% compared to fixed-speed motor operation, while simultaneously extending pump seal and impeller life by eliminating the mechanical stress of across-the-line starting.

In steel and aluminum smelting facilities, where ambient temperatures regularly exceed 45°C and electromagnetic interference from arc furnaces and induction heaters is severe, the 20-COMM-E’s robust EMC design and shielded RJ-45 connection maintain communication integrity without packet loss or CIP timeout errors. Rolling mill drives, fume extraction fans, and ladle transfer car motors all benefit from the deterministic control that EtherNet/IP with the 20-COMM-E provides, ensuring that production rhythm is maintained even during peak electrical noise events.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide for the Allen-Bradley 20-COMM-E?
All 20-COMM-E units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing — including network communication verification, parameter read/write validation, and visual inspection for connector integrity — before dispatch. A test report is available upon request for critical infrastructure procurement.

Q2: Is the 20-COMM-E compatible with all PowerFlex 700 variants and firmware versions?
The 20-COMM-E is compatible with PowerFlex 700 (standard), PowerFlex 700S (high-performance vector), PowerFlex 700H (high-power), and PowerFlex 700L (liquid-cooled) drives. Compatibility with specific drive firmware versions is confirmed during pre-shipment testing. TOPNLMS technical staff can advise on firmware revision matching for your specific drive nameplate and application requirements — contact us with your drive catalog number and series letter for a definitive compatibility confirmation.

Q3: How does TOPNLMS ensure long-term supply continuity for the 20-COMM-E?
TOPNLMS maintains a dedicated inventory of Allen-Bradley 20-COMM peripheral adapters, including the 20-COMM-E, to support both planned maintenance schedules and emergency breakdown replacements. Our sourcing network spans authorized distributors and certified surplus channels, ensuring that even discontinued or long-lead-time catalog numbers remain available. For facilities operating multiple PowerFlex 700 drives, we recommend discussing a consignment stock or blanket order arrangement to guarantee availability during critical production periods.

Q4: Can the 20-COMM-E be used as a direct replacement in an existing EtherNet/IP network without reconfiguring the PLC?
In most cases, yes. The 20-COMM-E is a plug-in peripheral adapter that is recognized by the drive automatically upon insertion. If the replacement unit matches the original catalog number and the EtherNet/IP node address is configured identically (via rotary switches or BOOTP/DHCP), the ControlLogix or CompactLogix PLC will re-establish communication without requiring a project download or I/O configuration change. TOPNLMS recommends verifying the adapter’s electronic data sheet (EDS) revision matches the existing RSLogix 5000 / Studio 5000 project configuration to avoid minor descriptor mismatches during online connection.
